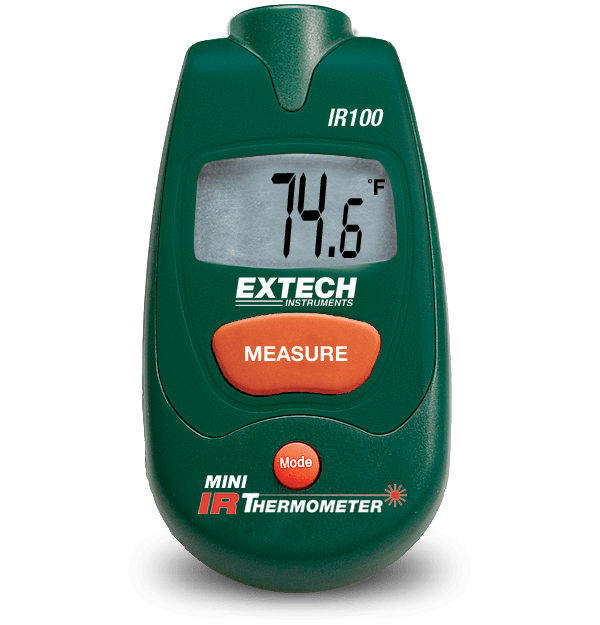

The Extech IR100 Mini IR Thermometer has a temperature range from -33°C to 230°C (-34°F to 446°F). Its fixed 0.95 emissivity covers 90 percent of all surface applications. This meter has an economical, miniature-sized design for better convenience. It features automatic data hold when the measure button is released, as well as max/min hold and an auto power off function. Also, there is a lock feature for continuous scanning. The IR100 comes complete with a CR 2032 3 V battery.
Specifications
| General | |
|---|---|
| Distance to Target Ratio | 1:1 |
| Emissivity | 0.95, fixed |
| Targeting | none |
| Temperature [IR] Basic Accuracy | -34 to 446 °F (-33 to 230 °C) |
| Temperature [IR] Max Resolution | ±2.0% of reading or ±4°F/ ±2 °C |
| Temperature [RTD] | 0.1 °F/ °C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 3 × 1.6 × 0.7" (75 × 40 × 18mm) |
| Power | 1 × CR2032 (3V) battery |
| Warranty | 2 years |
| Weight | 1.5oz (43g) |
Resources & Support
User Manual
Extech IR100 User Manual
Certification
Extech IR100 Declaration of Conformity
Datasheet
Extech IR100 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
