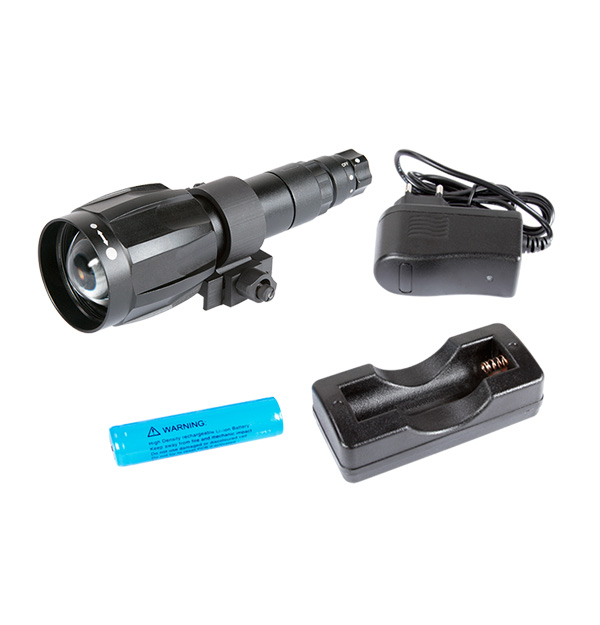

Night vision devices rely on small amounts of ambient light to capture clear imagery. FLIR’s Extra Long Range Infrared Illuminator uses near IR light invisible to the naked eye to covertly illuminate subjects in complete darkness, allowing night vision optics to produce a better image. The powerful IR850-XLR model offers beam angle adjustment and variable power control. Included rechargeable battery can operate up to 10 hours while an optional Afocal Doubler increases long-range performance.
Specifications
| Sensor & Optical | |
|---|---|
| Divergence Angle | 4° to 35° |
| Peak Wavelength | 850 nm |
| Environmental & Approvals | |
|---|---|
| Environmental Rating | Water and fog Resistant |
| Power | |
|---|---|
| Battery Life at 20 C [68 F] | up to 10 hours (1/4 Power), up to 8 hours (1/2 Power), up to 6 hours (3/4 Power), up to 2.5 hour (Full Power) |
| Power | 1000 mW |
| Power Supply | One 18650 (3.7v ) Rechargeable Battery |
| System Overview | |
|---|---|
| Compatible Night Vision Devices | Gen 1, CORE, Gen2, Gen 3, Digital |
| IR Emitter Type | LED |
| Physical | |
|---|---|
| Dimensions [excl. mounting bracket] | 150 x 46 x 46 mm (5.9 x 1.8 x 1.8 in) |
| Weight | 0.21 kg (0.46 ibs), without mount and battery |
