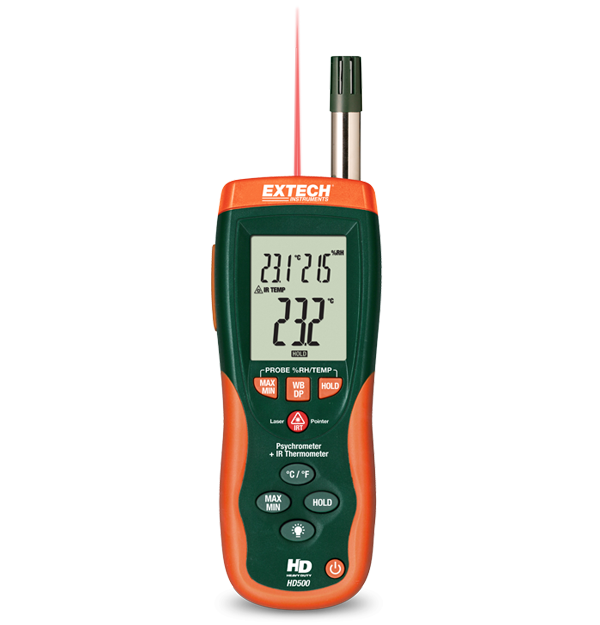

Extech HD500
Psychrometer with InfraRed Thermometer
The HD500 Psychrometer with Infrared Thermometer combines 3 in 1 with humidity meter, type K thermometer and infrared thermometer functions. The HD500 features a large triple LCD backlit display, built in USB port, minimum/maximum, data hold and auto power off functions. Built-in InfraRed Thermometer for non-contact temperature measurement to 932°F (500°C). Includes a 3 year warranty, Windows compatible software with USB cable, Type K bead wire probe, carrying case and 9-volt battery.
Specifications
| General | |
|---|---|
| Dew Point | -90.4 to 140 °F (-68 to 60 °C) |
| Distance to Target Ratio | 30:1 |
| Relative Humidity | 0 to 100% |
| Relative Humidity Basic Accuracy | ±2% |
| Temperature [Air] | 14 to 140 °F (-10 to 60 °C) |
| Temperature [Air] Basic Accuracy | ±(2% ±4°F/2 °C) |
| Temperature [IR] Basic Accuracy | -58 to 932 °F (-50 to 500 °C) |
| Temperature [IR] Max Resolution | ±2% or ±4°F/2°C |
| Temperature [Type K] Max Resolution | -148 to 2501 °F (-100 to 1372 °C) |
| Temperature [Type N] | ±(1% + 1 °C) |
| Wet Bulb | -6.88 to 140 °F (-21.6 to 60 °C) |
| Additional Details | |
|---|---|
| Certifications | HD500_S: CE HD500-NIST_S: CE, NIST |
| Dimensions | 10 × 2.9 × 2" (255 × 75 × 50mm) |
| Power | 1 × 9V battery |
| Warranty | 3 years |
| Weight | 12.3oz (350g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech HD500 Software
User Manual
Extech HD500 User Manual
Certification
Extech HD500 Declaration of Conformity
Datasheet
Extech HD500 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
