Discontinued

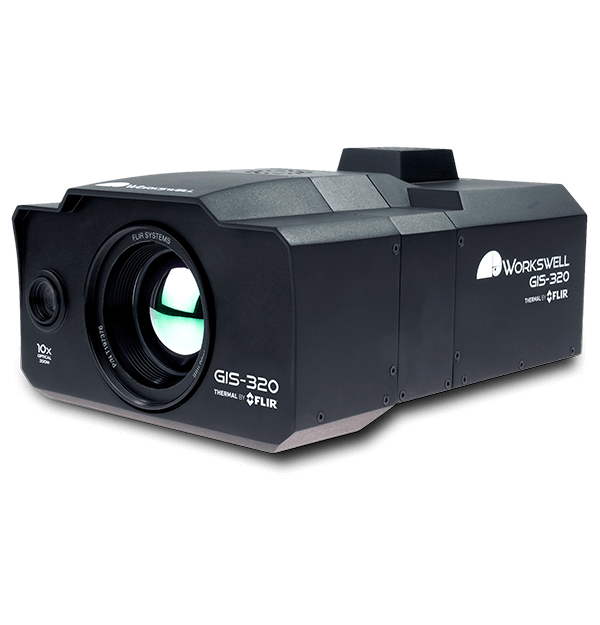

GIS-320
Optical Gas Imaging Payload Featuring Thermal by FLIR®
Product Variations
FLIR is the exclusive global distributor of the Workswell GIS-320 Thermal by FLIR optical gas imaging payload for unmanned aerial systems, unmanned ground vehicles, and mobile platforms. Built around a FLIR cooled infrared detector, the GIS-320 visualizes methane, hydrocarbons, and VOC emissions from oil and gas production, transportation, and use. When operated from a central location, users can easily and safely detect hard to reach leaks or inspect wellheads spread out over a wide area in one pass. The GIS-320 with Thermal by FLIR technology is a valuable addition to any leak detection and repair (LDAR) program, eliminating the need for costly remediation and avoiding harm to the environment.
Discover hidden gas leaks from afar with 320 × 240 pixel IR resolution, <15 mK thermal sensitivity, and 1-8x continuous zoom (thermal).
Integrate easily with UAS/UGV systems and control remotely to inspect well heads, pipelines, tank batteries, and more.
Integrated FLIR G300a camera provides reliable FLIR features including our exclusive High Sensitivity Mode (HSM) and OOOOa certification.
Specifications
| Imaging & Optical | |
|---|---|
| Detector Type | Focal Plane Array (FPA), cooled InSb |
| Digital Camera | 1/3” sensor, auto white balance, wide dynamic range, blacklight compensation, exposure and gamma control |
| Digital image enhancement | Noise reduction filter, High Sensitivity Mode (HSM) |
| Field of view [FOV] | 14.5° × 10.8° |
| Focus | Automatic motorized focus |
| Full Frame Rate | 30 Hz output to USB |
| Image Modes | IR only, VIS only, Picture in Picture with optical zoom, High Sensitivity Mode (HSM) |
| IR Resolution | 320 × 240 pixels |
| Minimum Focus Distance | 0.5 m (1.6 ft) |
| NETD | <10 mK @ 30°C (86°F) |
| Radiometric IR video recording | Radiometric full-frame IR recording (raw data recording in 30 Hz)
Digital camera H.264 encode video HD recording |
| Spectral Range | 3.2 — 3.4 µm |
| Zoom | IR image: 1 — 8x continuous digital zoom, VIS image: 10x optical zoom with vibration compensation |
| Measurement & Analysis | |
|---|---|
| Frequency | 60 Hz |
| Measurement Presets | Max temperature, min temperature, center temperature |
| Temperature Range | -20 to 350°C (-4 to 662°F) |
| Communication & Data Storage | |
|---|---|
| Ethernet Interface | Ethernet port RJ-45, future connectivity |
| Image File Format | Radiometric JPEG images and digital camera JPEG Full HD
Radiometric TIFF |
| Storage Media | Internal high-speed SSD 256GB for image and video recording
External slot for Micro SD card & USB 2.0 for USB stick for taking images |
| USB_Image Streaming | 16-bit 320 × 240 pixels @ 30 Hz |
| USB_Standard | 2.0 port, keyboard connection for in-house control |
| USB_Video Streaming | 640 × 480 pixels @ 30 Hz |
| Video Output | Digital HDMI 720p (1280 × 720 px), Aspect ratio 16:9, Micro HDMI |
| Environmental & Certifications | |
|---|---|
| Mounting | 4 × 1/4-20 UNC thread |
| Operating Temperature Range | -15 to 50°C (-4 to 122°F) |
