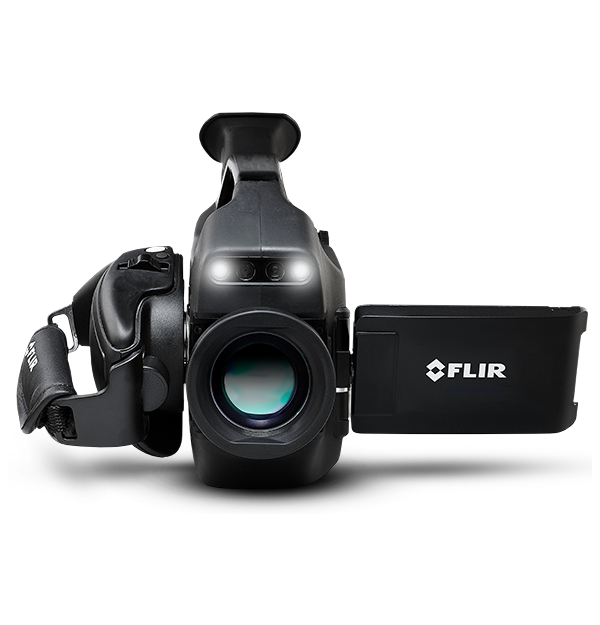

FLIR GFx320
OGI Camera for Hazardous Locations
The FLIR GFx320 represents ground-breaking technology for visualizing fugitive hydrocarbon leaks at natural gas well sites, off-shore platforms, liquid natural gas terminals, and more. Its certifications for use in hazardous locations allow surveyors to work confidently while maintaining safety. FLIR designed the GFx320 with the user in mind, offering ergonomic features such as the articulating LCD screen to help you avoid fatigue during all-day surveys.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 320 x 240 pixels |
| Detector Pitch | 30 µm |
| NETD | <10 mK @ 30°C (86°F) |
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C to 100°C, 32°F to 212°F) or ±2% of reading for temperature range (>100°C, >212°F) |
| Spectral Range | 3.2 – 3.4 µm |
| Hazardous Location Compliance | ATEX/IECEx, Ex ic nC op is IIC T4 Gc II 3 G ANSI/ISA-12.12.01-2013, Class I Div 2 CSA 22.2 No. 213, Class I Div 2 |
| Imaging & Optical | |
|---|---|
| Automatic Image Adjustment | Continuous/manual, linear, histogram |
| Camera f_number | f/1.5 |
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Pitch | 30 µm |
| Detector Type | FLIR Indium Antimonide (InSb) |
| Dynamic Range | 14-bit |
| Field of view [FOV] | 14.5° × 10.8° |
| Focal Length | 38 mm (1.49 in.) |
| Focus | Manual |
| Frame Rate [Full Window] | 60 Hz |
| Image Analysis | 10 spotmeters, 5 boxes with max./min./average, profile, delta temperatures, emissivity & measurement corrections |
| Image Modes | IR image, visual image, High Sensitivity Mode (HSM) |
| IR Resolution | 320 x 240 pixels |
| Minimum Focus Distance | 0.5 m (1.64 ft.) |
| NETD | <10 mK @ 30°C (86°F) |
| Non_Radiometric IR Video | MPEG4 (up to 60 min./clip) to memory card |
| On Camera Display | Widescreen 800 x 480 pixel LCD Tiltable 800 × 480 pixel OLED viewfinder |
| Radiometric IR Video | 15 Hz direct to memory card |
| Sensor Cooling | Stirling Microcooler (FLIR MC-3) |
| Spectral Range | 3.2 – 3.4 µm |
| Total Pixels | 76,800 |
| Viewfinder | Yes |
| Visual Image | 3.2 MP from integrated visible camera Can be automatically associated with corresponding non-radiometric IR video |
| Visual Video | MPEG4 (25 min./clip) to memory card |
| Zoom | 1-8x continuous digital zoom |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±1°C (±1.8°F) for temperature range (0°C to 100°C, 32°F to 212°F) or ±2% of reading for temperature range (>100°C, >212°F) |
| Standard Temperature Range | –20°C to 350°C (–4°F to 662°F) |
| Power | |
|---|---|
| Battery Type | Rechargeable Li-ion battery |
| External Power Operation | AC adapter 90-260 VAC, 50/60 Hz or 12 VDC from a vehicle |
| Environmental & Certifications | |
|---|---|
| Ambient temperature range | -20°C to 40°C (-4°F to 104°F) (Certification range for explosive atmospheres) |
| Encapsulation | IP 54 (IEC 60529) |
| Hazardous Location Compliance | ATEX/IECEx, Ex ic nC op is IIC T4 Gc II 3 G ANSI/ISA-12.12.01-2013, Class I Div 2 CSA 22.2 No. 213, Class I Div 2 |
| Mounting | Standard, 1/4"-20 |
| Operating Temperature Range | –20°C to 50°C (–4°F to 122°F) |
| Shock and Vibration | 25 g (IEC 60068-2-27) / 2 g (IEC 60068-2-6) |
| Storage Temperature Range | –30°C to 60°C (–22°F to 140°F) |
