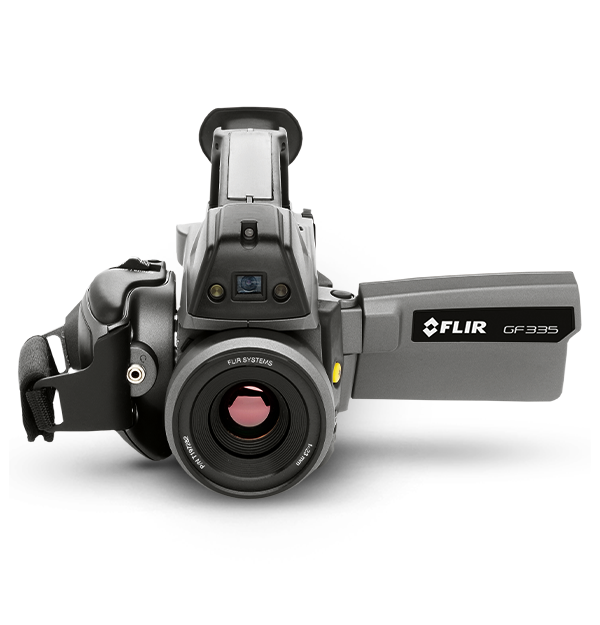

If you need a mobile camera that can detect extremely subtle temperature differences, the FLIR GF335 Broadband is the camera for you. The GF335 is a high sensitivity, low noise, cooled thermal camera that excels at detecting faint heat signatures. It is well suited to a wide range of applications, including use on test ranges, non-destructive testing, research, and science applications.
Specifications
| Highlighted | |
|---|---|
| Resolution | 320 x 240 |
| Detector Pitch | 30 µm |
| Spectral Range | 3-5 µm |
| Detector Type | Indium Antimonide (InSB) |
| Camera f_number | f/1.5 |
| Dynamic Range | 14-bit |
| NETD | <15 mK |
| Frame Rate [Full Window] | 60Hz |
| Standard Temperature Range | -20°C to 120°C (-4°F to 248°F) |
| Imaging & Optical | |
|---|---|
| Available Lenses | NA |
| Camera f_number | f/1.5 |
| Close_up Lenses_Microscopes | NA |
| Detector Pitch | 30 µm |
| Detector Type | Indium Antimonide (InSB) |
| Digital Data Streaming | Real-time Radiometric = USB to PC (30 Hz) Real-time Radiometric = Memory Card on Camera (15 Hz) Real-time Non-radiometric = USB to PC Real-time Non-radiometric = Memory Card on Camera |
| Dynamic Range | 14-bit |
| Frame Rate [Full Window] | 60Hz |
| NETD | <15 mK |
| Resolution | 320 x 240 |
| Spectral Range | 3-5 µm |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±1°C or ±1% of reading |
| Standard Temperature Range | -20°C to 120°C (-4°F to 248°F) |
| General | |
|---|---|
| Packaging Size | 8.35 kg (18.4 lb.) |
Accessories
Resources & Support
User Manual
FLIR GF3xx Series User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
