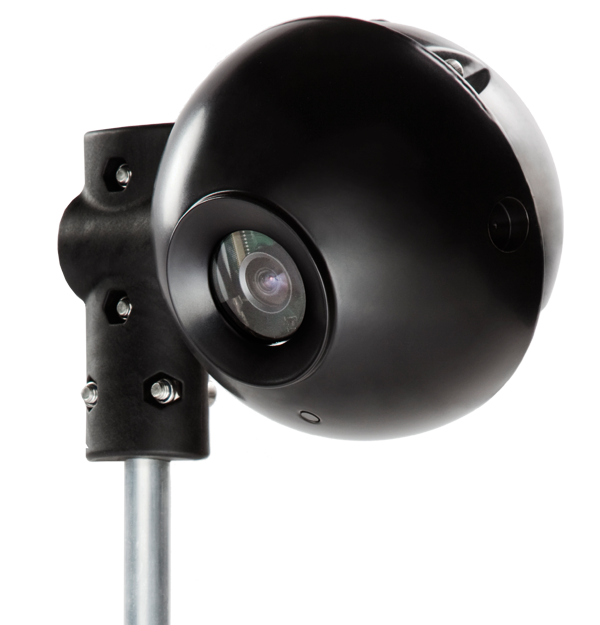

TrafiCam x-stream
Vehicle presence and data collection sensor
TrafiCam x-stream combines a CMOS camera and video detector in one unit. TrafiCam x-stream sensors detect and monitor moving and stationary vehicles at signalized intersections and collect traffic data at intersections or interurban roads. Via detection outputs or via IP protocol, vehicle presence information is transmitted to the traffic controller so that signal timing can be adjusted dynamically. TrafiCam x-stream offers streaming video at full frame rate, to be used for traffic monitoring in a control room.
Specifications
| System Overview | |
|---|---|
| Detection Functionalities | Vehicle presence + data |
| Detection Zones | 24 presence zones 4 data zones |
| Communications | |
|---|---|
| Communication PC_Sensor | Via interface or direct (ETH) |
| Compression | MJPEG, MPEG-4, H.264 (dual stream) |
| Interfaces | TI x-stream for BPL sensors, optional ETH interface for ETH sensors |
| Output | 3 for ETH versions, direct or via optional ETH interface 16 for BPL versions via TI x-stream BPL |
| Electrical | |
|---|---|
| Detection Distance | FLIR TrafiCam x-stream Narrow BPL, FLIR TrafiCam x-stream Narrow ETH, TrafiCam Narrow: 15 - 75 m FLIR TrafiCam x-stream Wide BPL, FLIR TrafiCam x-stream Wide ETH, TrafiCam Wide: 0 - 25 m TrafiCam AI - Narrow: 30 - 150 m / 100 - 500ft TrafiCam AI - Wide: 0 - 75 m / 0 - 250ft TrafiCam x-stream2 narrow angle, TrafiCam3 Narrow: 15-75 m / 50-250 ft TrafiCam x-stream2 wide angle, TrafiCam3 Wide: 0-25 m / 0-85 ft |
| FCC | FCC Part 15 Class A |
| IP Address | Yes |
| Operating Voltage | 12-32VAC, 12-42VDC |
| PC Tool for Set_Up | Traficon Configuration Tool (TCT) |
| Environmental | |
|---|---|
| EMC | Electromagnetic Compatibility 2014/30/EU |
| Materials | Weatherproof (UV-resistant) |
| Protection Grade | IP67 |
| Temperature Range | -34° to 80°C (-29.2° to 176°F) |
| Imaging & Optical | |
|---|---|
| CMOS type | 1/4" color |
| Focal Length | FLIR TrafiCam x-stream Narrow BPL, FLIR TrafiCam x-stream Narrow ETH, TrafiCam Narrow, TrafiCam x-stream2 narrow angle: 6.0 mm FLIR TrafiCam x-stream Wide BPL, FLIR TrafiCam x-stream Wide ETH, TrafiCam Wide, TrafiCam x-stream2 wide angle: 2.1 mm |
| Frame Rate | 25 FPS |
| Lens Type | FLIR TrafiCam x-stream Narrow BPL, FLIR TrafiCam x-stream Narrow ETH, TrafiCam Narrow: Narrow FLIR TrafiCam x-stream Wide BPL, FLIR TrafiCam x-stream Wide ETH, TrafiCam Wide: Wide |
| Resolution | 640 x 480 pixels (VGA) |
| Mechanical | |
|---|---|
| Dimensions | Vertically mounted: 45 x 16 x 12 cm Horizontally mounted: 41 x 18 x 12 cm |
| Material | Aluminum |
| Mounting Height | 3, 5 - 12m |
| Sunshield | Optional |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
