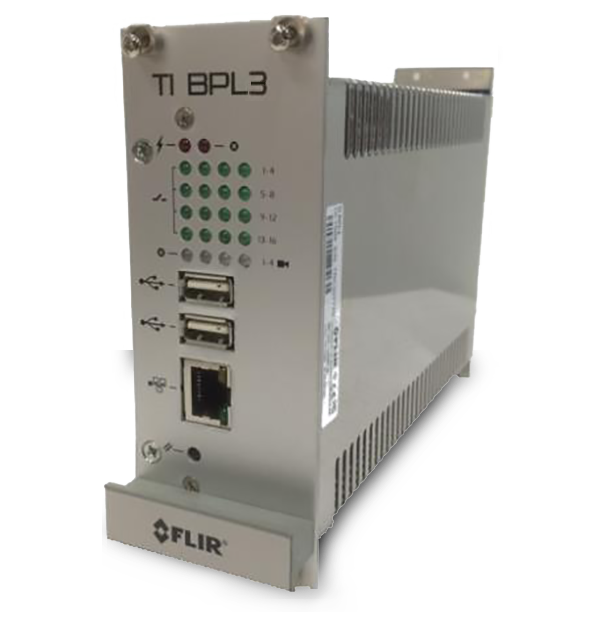

FLIR TI BPL3
3rd Generation Broadband Over Power Line Interface
This interface connects zone outputs from BPL3 sensors* and/or Power Line sensors to a controller, providing power and communications to BPL3 sensors and/or PL sensors. It also connects the PC to BPL3 sensors and/or PL sensors for system configuration and viewing
.*BPL3 Sensor(s): TrafiOne, ThermiCam AI, TrafiCam AI, TrafiSense AI, LaneCom T, LaneCom V
Specifications
| System Overview | |
|---|---|
| Error Output | 4 × optical coupled dry contacts N/O via terminal connector on the back Imax = 50m A, Umax = 48 VDC 1 interface error LED on the front 4 × BPL3 or PL sensor status LEDs |
| Maximum Cameras | Standard 1 – 4 × BPL3 or PL sensors Maximum 4 × BPL3 or PL sensors |
| Electrical | |
|---|---|
| Current Consumption | ≤130 mA @ 24 VDC |
| Input Voltage | TI BPL3 EURO: 12–60 VDC or 12–42 VAC TI BPL3 EDGE B&SIU: 12–42 VDC or 12–30 VAC |
| Power Consumption | ≤3 W |
| Environmental | |
|---|---|
| Operating Temperature Range | NEMA II specs: -40°C to 74°C (-40°F to 165°F) |
| Mechanical | |
|---|---|
| Weight | TI BPL3 EURO: 570 g (1.26 lb) TI BPL3 EDGE B&SIU: 750 g (1.65 lb) |
