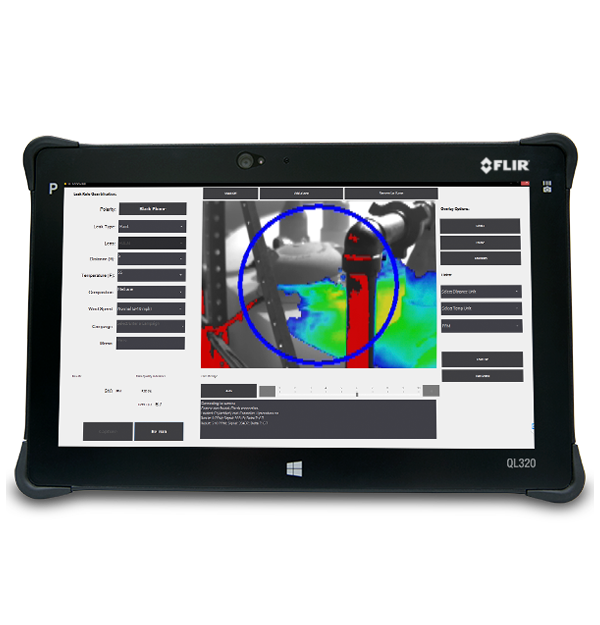

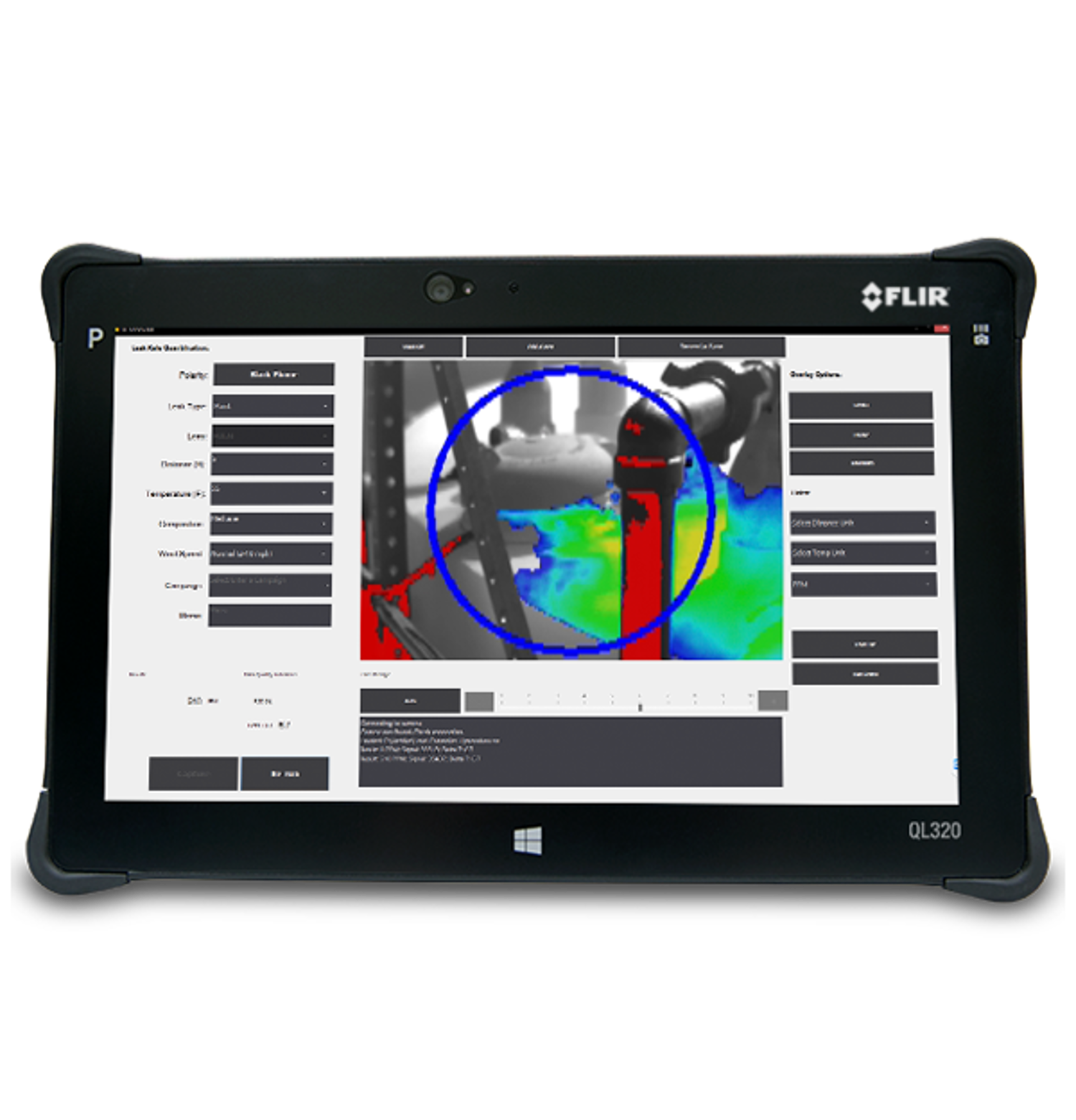

FLIR QL320
Quantitative Optical Gas Imaging System for FLIR G-Series Optical Gas Imaging Cameras (Gx620/Gx320/G620)
$24,950.00
The QL320 is a quantitative optical gas imaging (QOGI) system that allows surveyors to measure the leak rates for methane and other hydrocarbons. This eliminates the need for secondary sampling with a toxic vapor analyzer or similar tool. In addition, the QL320 does not require close contact with the gas in order to measure emission rates, making it a safer solution for quantifying difficult-to-measure gas leaks.
Safe Solution for Quantifying Gas Leaks
With the FLIR QL320, you can determine mass leak rates (g/h, lb/h, MT/h), volumetric leak rates (cc/min, L/min, or SCFH), or concentration (ppm-m) for most hydrocarbon gases. Measure the size of fugitive emissions from safe distances, as far as 100 feet.
The FLIR QL320 has the built-in tools needed to validate leak surveys, plus a Δ temperature screening tool to determine suitablility of background conditions. In-field reporting includes archiving of measurements, colorized video and raw data for analysis and post-processing.
Used with a FLIR OGI camera's Q-Mode, the QL320 gathers relative information in the camera and post-processes the data for quantified results without the need to tether directly to the camera.
Built to Your Standard
FLIR is the name Leak Detection and Repair (LDAR) professionals trust for optical gas imaging, thanks to our products’ reliability, technical standards, and ergonomics for all-day use in the field.
Specifications
| Imaging & Optical | |
|---|---|
| Compatible cameras | FLIR Gx620, FLIR Gx320, FLIR G620 |
| Display resolution | 1920 × 1080 |
| Display Size | 294.6 mm (11.6 in) |
| Image Modes | Single image snapshot with colorized plume and quantitative result |
| Measurement & Analysis | |
|---|---|
| Measurement Modes | Mass leak rates (g/h, lb/h, MT/h), volumetric leak rates (cc/min, L/min, or SCFH), or concentration (ppm-m) |
| Measurement Tools | Δ temperature screening, plume highlighting, colorized gas concentration profile |
| Communication & Data Storage | |
|---|---|
| Communication | Bluetooth V 5.0, 4G LTE mobile broadband |
| Input | On-screen keyboard; 6 buttons (1 user-definable) |
| Interfaces | SD card reader (microSDXC), USB 3.0 (Type A) x 2 |
| General | |
|---|---|
| Size | 308 × 200 × 29 mm (12.125 × 7.875 × 1.125 in) |
| Weight | 1.24 kg (2.73 lbs) |
| User Interface | |
|---|---|
| Display Technology | 11.6" sunlight readable TFT LCD capacitive touchscreen |
| Touchscreen | Reinforced touchscreen; scratch and shatter resistant film |
| Power | |
|---|---|
| Battery Type | Li-ion rechargeable battery; 11.1 V, 3950 mAh, 8 hours |
| Power | AC adapter 100-240 V, 50 Hz-60 Hz, 65 W |
| Environmental & Certifications | |
|---|---|
| Environmental | ANSI/ISA 12.12.01-2000 (Class I, Division 2), IP 65 Ingress Protection |
