FLIR ONE® Edge Pro
Thermal Camera with Wireless Connectivity for iOS® and Android™ Smart Devices
$529.00

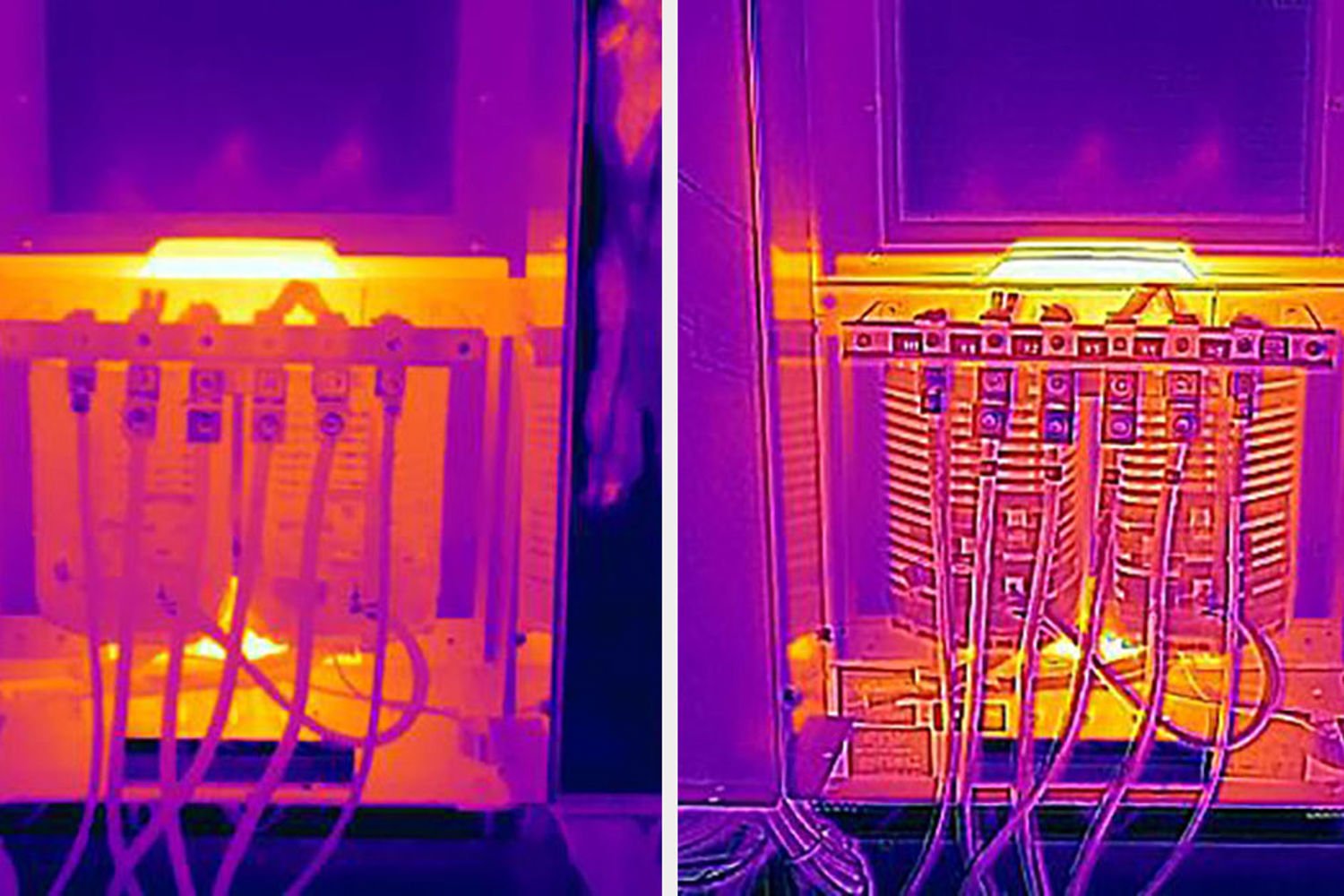

MSX® Image Enhancement
The FLIR ONE Edge Series features FLIR's unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera's LCD.
Get More from the FLIR ONE App
The FLIR ONE Edge Series connects to your smart device through the FLIR ONE app available on Google Play and the Apple App Store. The app allows you to view the live feed from your FLIR ONE camera; upload images directly to the FLIR IgniteTM cloud; change camera and display settings; access help articles to improve your camera knowledge; access inspection guides; and find third-party apps that meet your specific application or inspection needs.
Get more information on device compatibility with FLIR ONE Series thermal cameras
FLIR Home Inspect
Use Your FLIR ONE Like a Pro
Home Inspect, within the FLIR ONE app, is your step-by-step guide to finding air leaks, insulation voids, moisture build up, and more with your FLIR ONE camera. Learn what to look for, get helpful tips for better inspections, and compare your results to typical faults so you can use your FLIR ONE with confidence.
FLIR ONE Mobile Apps for Your Unique Applications
Explore the large eco-system of available apps, or develop your existing app to integrate thermal capabilities
There is a wide range of FLIR ONE compatible mobile apps that offer a tailored solution for specific needs. Some examples include the RocketPlan app, which digitizes the claims process within restoration; the MultiSens-1234 app for plotting multiple sensor data within condition monitoring; and the ThermaFY Home app which analyzes your home's energy efficiency. Check out all the available apps, and if you are interested in developing an app or integrating thermal into your app, create a developer account today.
Compatible with the NEW iPhone 15

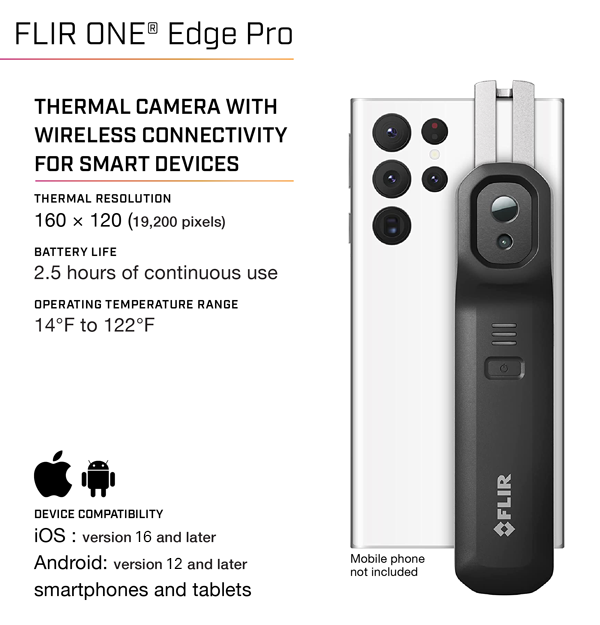

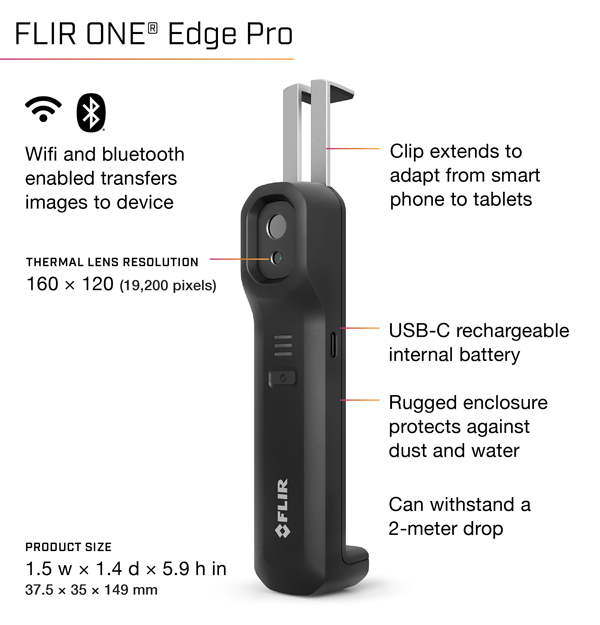

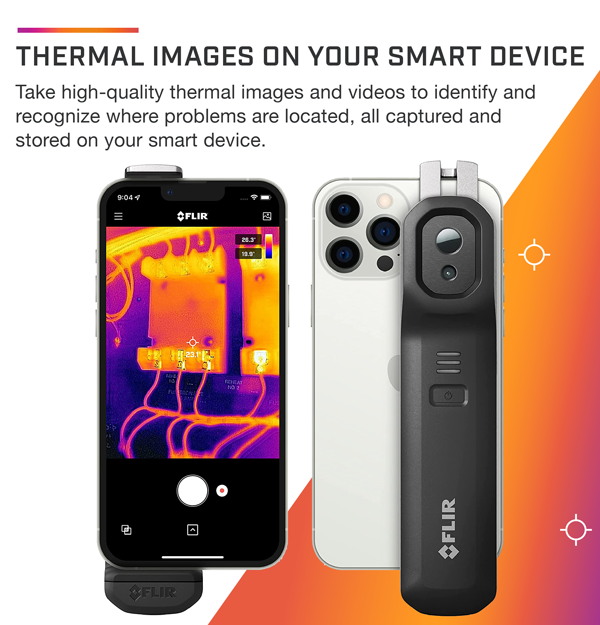

The innovative FLIR ONE Edge Pro wirelessly connects to your smart device so you can easily inspect targets that are out of reach – or clip it onto your phone or tablet for one-handed operation. This thermal camera for smart phones combines VividIR™ and FLIR MSX® (Multi-Spectral Dynamic Imaging) so you can take crisp thermal images from any angle. Improved battery time and ruggedness makes sure the camera is ready to use in more industrial environments. The wireless connection allows the same camera to be used with both Android and iOS devices so you can easily share tools with your friends and colleagues. All your thermal images and videos are saved directly to your mobile device making them easily accessible for further use. Connecting to FLIR Ignite™ allows you to instantly upload your files to the cloud where you can create reports as well as organize, store, and share data for a more efficient workflow.
Specifications
| Highlighted | |
|---|---|
| Thermal Resolution | 160 × 120 (19,200 pixels) |
| Battery Life | Approximately 2 hours 30 minutes |
| Object Temperature Range | -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F) |
| Accuracy | ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F) |
| Spot Meter | Hottest, Coldest and 3 spot measurement |
| Imaging & Optical | |
|---|---|
| Adjustable MSX distance | 30 cm — Infinity |
| Focus | Fixed 30 cm — Infinity |
| Frame Rate | 8.7 Hz |
| HFOV_VFOV | 54° ±1° / 42° ±1° |
| Image Modes | Infrared, visual, MSX |
| Palette | Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel |
| Shutter | Automatic/Manual |
| Thermal Resolution | 160 × 120 (19,200 pixels) |
| Thermal Sensitivity_NETD | 70 mK |
| Thermal Sensor | Pixel size 12 µm, 8 — 14 µm spectral range |
| Visual Resolution | 640 × 480 |
| VividIR | Yes |
| Power | |
|---|---|
| Battery charge time | 60–90 min for fully charged 15 min charging, from empty battery, gives 40 min operating time |
| Battery Life | Approximately 2 hours 30 minutes |
| Charging Method | Female USB-C (5V/1A) |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F) |
| Measurement Corrections | Emissivity; Reflected apparent temperature (22°C / 72°F) |
| Object Temperature Range | -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F) |
| Spot Meter | Hottest, Coldest and 3 spot measurement |
| General | |
|---|---|
| Battery charge monitor | 0 — 100% |
| Clip Span | 130 mm (min) / 195 mm (max) |
| Compatible with FLIR software | FLIR ONE app, FLIR Ignite, FLIR Thermal Studio |
| Device Compatibility | iOS (version 16 and later) or Android (version 12 and later) smartphones and tablets |
| Dimensions [H x W x D] | 37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in) |
| Form Factor | Phone |
| Remote Operation | Up to 5 m (16.4 ft) from smart device via Wi-Fi |
| Weight | 153 g (5.4 oz) |
| Environmental & Certifications | |
|---|---|
| Certifications | RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU, IP54 |
| Drop test | Drop from 2 m (6.56 ft) |
| Emissivity Settings | Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30% |
| Non Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F) |
| Communication & Data Storage | |
|---|---|
| Bluetooth | Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device |
| Capture modes | Video, Still image |
| Charging | Female USB-C (5V/1A) |
| File Formats | Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android)) |
| WiFi | IEEE 802.11 a/b/g/n |
