FLIR ONE® Edge
Thermal Camera with Wireless Connectivity for iOS® and Android™ Smart Devices
$319.00
Compatible with the NEW iPhone 15

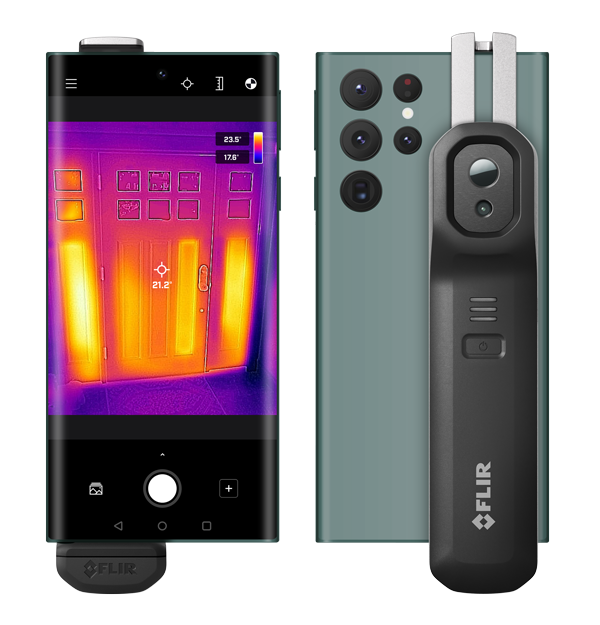

The FLIR ONE Edge is an innovative and rugged thermal imager that allows you to easily inspect hard-to-reach areas from any position or angle. This thermal camera for smart phones connects wirelessly so you can inspect out-of-view targets – or clip it onto your phone or tablet for one-handed operation. With FLIR MSX®, you can take detailed thermal images to help you clearly identify where a problem is located. The FLIR ONE app provides guidance to help you troubleshoot and verify repairs in many do-it-yourself (DIY) and professional applications including home, automotive, commercial electrical, and mechanical inspection. The wireless connection allows the same camera to be used with both Android and iOS devices so you can easily share tools with your team members. All your thermal images and videos are saved directly to your mobile device making them easily accessible for further use. Connecting to FLIR Ignite™ allows you to instantly upload your files to the cloud where you can create reports as well as organize, store, and share data for a more efficient workflow.
Specifications
| Highlighted | |
|---|---|
| Thermal Resolution | 80 × 60 (4,800 pixels) |
| Battery Life | Approximately 2 hours 30 minutes |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F) |
| Accuracy | ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F) |
| Spot Meter | Hottest, Coldest and 3 spot measurement |
| Imaging & Optical | |
|---|---|
| Adjustable MSX distance | 30 cm - Infinity |
| Focus | Fixed 30 cm - Infinity |
| Frame Rate | 8.7 Hz |
| HFOV_VFOV | 54° ±1° / 42° ±1° |
| Image Modes | MSX, Infrared, Visual |
| Palette | Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel |
| Shutter | Automatic/Manual |
| Thermal Resolution | 80 × 60 (4,800 pixels) |
| Thermal Sensitivity_NETD | 70 mK |
| Thermal Sensor | Pixel size 12 µm, 8 to 14 µm spectral range |
| Visual Resolution | 640 × 480 |
| VividIR | No |
| Power | |
|---|---|
| Battery charge time | 60–90 min for fully charged 15 min charging, from empty battery, gives 40 min operating time |
| Battery Life | Approximately 2 hours 30 minutes |
| Charging Method | Female USB-C (5V/1A) |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F) |
| Measurement Corrections | Emissivity; Reflected apparent temperature (22°C / 72°F) |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F) |
| Spot Meter | Hottest, Coldest and 3 spot measurement |
| General | |
|---|---|
| Additional Integrations | Available via device App Store. Development SDK available: https://www.flir.com/developer/mobile-sdk/ |
| Battery charge monitor | 0 to 100% |
| Clip Span | 130 mm (min) / 195 mm (max) |
| Compatible with FLIR software | FLIR ONE app, FLIR Ignite, FLIR Thermal Studio |
| Device Compatibility | iOS (version 15 and later) or Android (version 11 and later) smartphones and tablets |
| Dimensions [H x W x D] | 37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in) |
| Form Factor | Phone |
| Remote Operation | Up to 5 m (16.4 ft) from smart device |
| Weight | 153 g (5.4 oz) |
| Environmental & Certifications | |
|---|---|
| Certifications | RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU |
| Drop test | Drop from 2 m (6.56 ft) |
| Emissivity Settings | Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30% |
| IP Rating | IP54 |
| Non Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F) |
| Communication & Data Storage | |
|---|---|
| Bluetooth | Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device |
| Capture modes | Video, Still image |
| Charging | Female USB-C (5V/1A) |
| File Formats | Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android) |
| WiFi | 802.11 a/b/g/n |
