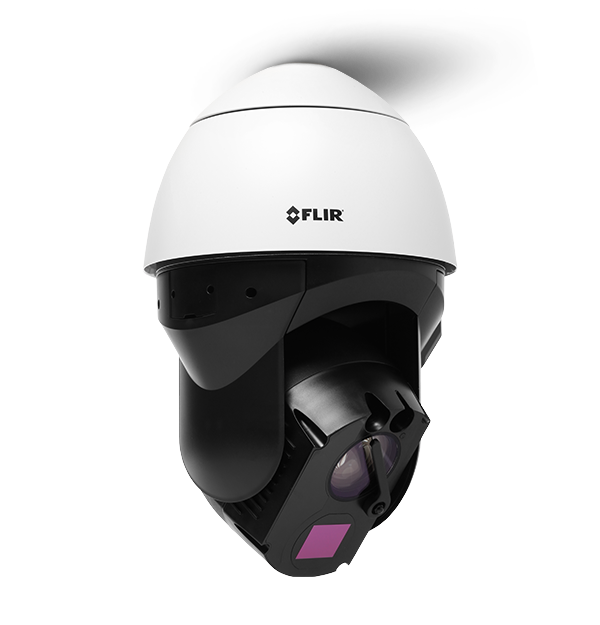

FLIR Elara DX-Series
Multispectral PTZ Thermal Camera
Product Variations
The FLIR Elara™ DX-Series multispectral pan/tilt/zoom (PTZ) security camera provides full situational awareness in the most punishing environments. Combining thermal and visible light imagers, the Elara DX-Series gives operators the ability to monitor large areas in complete darkness, glaring light, and adverse weather. The exceptional detection and identification capabilities of multispectral cameras help integrators provide solutions for challenging imaging problems at critical infrastructure sites and remote facilities.
Integrated thermal and visible sensors capture sharp video where other PTZ cameras cannot.
Built to handle the challenges of critical infrastructure sites and other demanding locations.
PTZ capability gives operators continuous visibility in large areas plus optional thermal zoom up to 5x with 15 mm to 75 mm zoom lens
Specifications
| Compliance & Certifications | |
|---|---|
| Compliance and Certifications | FCC Part 15 (Subpart B, class A), CE Marked, RoHS, IP66, WEEE, NEMA 4X, IEC 62368 |
| Environmental | |
|---|---|
| Humidity | 0-95% relative |
| IP Rating [dust and water ingress] | IP66 |
| Operating Temperature Range | -40°C to 60°C |
| Shock | IEC 60068-2-27 |
| Storage Temperature | -55°C to 85°C |
| Vibe | IEC 60068-2-64 |
| General | |
|---|---|
| Detector Type | Long-Life, Uncooled VOx Microbolometer |
| Focus Range | Athermalized, Focus-Free |
| Input Voltage | IEEE 802.3bt Type 3 (PoE++) Universal PoE injector |
| Thermal E_Zoom | Continuous E-Zoom to 4× |
| Zoom | Visible: Optical Zoom: 31 |
| Measurement & Analysis | |
|---|---|
| Programmable Presets | 256 |
| PTZ | |
|---|---|
| Pan Speed | Continuous 360° 0.1° to 90° /sec |
| Tilt Speed | -10° to 190° 0.1° to 60°/sec |
| System Integration | |
|---|---|
| Ethernet | 10/100/1000 Mbps |
| Network APIs | FLIR SDK, FLIR CGI, ONVIF Profile S |
| Streaming Resolutions | Thermal: QVGA to VGA Visible: VGA to 4k |
| Supported Protocols | IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP |
| Thermal Camera | |
|---|---|
| Array format | 320 × 240 |
| Focal Length | Visible: 6.5mm - 202mm |
| Lens Field of View | Visible: HFOV: 61.8°- 2.15° VFOV: 36.65° - 1.2° |
| Optical Characteristics | FOV: 50° x 38° Focal Length: 4.3 mm |
| Pixel Pitch | 12 µm |
| Spectral Range | 7.5 μm to 13.5 μm |
| Thermal Frame Rate | NTSC: 30 Hz or PAL: 25 Hz / 8.3 Hz |
| Thermal Image Settings | Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast |
| Visible Camera | |
|---|---|
| Array format | 320 × 240 |
| Focal Length | Visible: 6.5mm - 202mm |
| Lens Field of View | Visible: HFOV: 61.8°- 2.15° VFOV: 36.65° - 1.2° |
| Sensitivity | Visible: Color: 0.25 Lux (@ (f1.6 AGC On, 30FPS) B/W: 0.10 Lux (@ (f1.6 AGC On, 30FPS) |
| Spectral Range | 7.5 μm to 13.5 μm |
| Video & Recording | |
|---|---|
| Video Compression | Thermal: One channel of H.264 & M-JPEG Visible: Two independent channels of H.264 & M-JPEG |
| Video Image Uniformity Optimization | Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers |
| Video Thermal AGC Region of Interest [ROI] | Default, Presets and User definable to insure optimal image quality on subjects of interest |
Accessories
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Firmware Download
FLIR Elara DX-Series, Saros DM-Series, Quasar 4K IR PTZ Firmware Version 1.7.0.20
Software Download
FLIR DNA Software - Version 2.3.0.35
Quick Start Guide
FLIR Elara DX-Series Quick Install Guide
AE Spec
FLIR Elara DX-Series A&E Specification
User Manual
FLIR Elara DX-Series Installation and User Guide
Datasheet
FLIR Elara DX-Series Datasheet
User Manual
FLIR Cyber Hardening Guide
Software Release Note
FLIR Discovery Network Assistant (DNA) Software Release Note v2.3.0.35
Selection Guide
FLIR Security Product Matrix Selection Guide
Compatibility
FLIR Security Cameras & Encoders - Supported 3rd Party Platforms
Firmware Release Note
FLIR Elara DX-Series, Saros DM-Series, Quasar 4K IR PTZ Firmware Release Notes v1.7.0.20
Configuration Guide
FLIR Security PTZ Pairing Guide for DX-Series, DM-Series, and Quasar 4K PTZ Cameras
