Discontinued

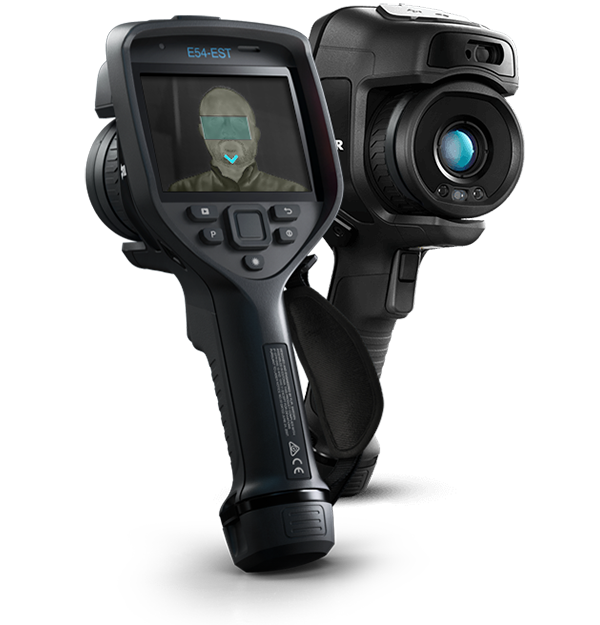

FLIR E54-EST

Handheld FLIR EST™ Thermal Screening Solutions

$5,900.00

BUY NOW

The FLIR E54-EST handheld thermal camera is a non-contact screening tools that serve as a first line of defense against potential health risks. This FLIR EST™ thermal screening solution detects and visualizes heat to quickly identify individuals with an elevated skin temperature. With 320 × 240 thermal pixel resolution and bright touchscreen display, the E54-EST offers accurate, easy-to-interpret temperature measurement. The on-camera FLIR Screen-EST Mode offers visual positioning guides, automatic sampling to maintain an updated temperature average, and graphic pass/fail indicators for results, reducing the burden on screening station operators. Compatibility with FLIR Screen-EST Desktop software, an integrated tripod mount, and external power makes this camera a good fit for permanent installations.

Return to business with efficient skin temperature screening

Begin screening quickly with limited ramp-up time, simple video connectivity, and choice of >2.5-hour battery or external power.

Optimal screening accuracy with automatic ambient drift compensation, visual pass/fail graphic indicators, and audible alarms.

On-camera FLIR Screen-EST Mode does not store images or personal information and allows for social distancing in screening setups.

Specifications

Highlighted
IR Resolution	320 × 240
Field of view [FOV]	24° × 18°
Image Modes	Infrared, visual, MSX°, picture-in-picture
Display	4 in., 640 × 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness
Storage Media	Removable SD card (8 GB)

Imaging & Optical
Camera f_number	1.3
Color	Black
Color palettes	Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Type and Pitch	Uncooled microbolometer, 17 µm
Digital Data Streaming	Simultaneous thermal and visible, USB Type-C
Digital Zoom	1-4x continuous
Field of view [FOV]	24° × 18°
Focal Length	17 mm (0.67 in)
Focus	Manual
Frame Rate	30 Hz
Image Modes	Infrared, visual, MSX°, picture-in-picture
IR Resolution	320 × 240
Lens	24° (fixed)
Lens Identification	Automatic
Minimum Focus Distance	0.15 m (0.49 ft)
MSX	Yes
Palette	Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Screen EST Mode	Yes
Spatial resolution [IFOV]	1.75 mrad/pixel
Spectral Range	7.5–14 µm
Thermal Sensitivity_NETD [typical]	<40 mK @ 30°C (86°F)
UltraMax	No
Viewfinder	No

Measurement & Analysis
Accuracy [Drift] in Screen EST Mode	±0.3°C (±0.5°F)
Automatic hot and cold detection	Auto-maximum/minimum markers within area
Emissivity Correction	Yes: variable from 0.01 to 1.0 or selected from materials list
Measurement Corrections	Yes
Object Temperature Range	15°C to 45°C (59°F to 113°F)
Reference Temperature	Yes
Sampling Average in Screen EST Mode	Recommended range: 30 to 45°C (86 to 113°F) in stable room temperature

User Interface
Display	4 in., 640 × 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness
Display Technology	IPS
Languages	21

Communication & Data Storage
Command and Control	On-camera screen, USB Type-C
Communication Interfaces	USB 2.0, Bluetooth, Wi-Fi
Image File Format	Standard radiometric JPEG, measurement data included
Storage Media	Removable SD card (8 GB)
USB	USB Type-C: data transfer/video/power
USB_Standard	USB 2.0 High Speed
Video Out	DisplayPort over USB Type-C
WiFi	Peer to peer (ad hoc) or infrastructure (network)

Power
Battery Type	Rechargeable Li ion battery, >2.5 hrs (typical use)
Battery voltage	3.6 V
Battery weight	140 g (4.9 oz)
Charging Temperature	0°C to 45°C (32°F to 113°F)
External Power Operation	USB 2.0 A to USB Type-C with Power supply
Power Management	No

Environmental & Certifications
Drop	Designed for 2 m (6.6 ft)
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Radio Spectrum	ETSI EN 300 328/FCC Part 15.249/RSS-247 Issue 2
Safety	EN/UL/CSA/PSE 60950-1
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Tripod Mounting	UNC ¼"-20
Warranty	http://www.flir.com/warranty/

General
Housing material	PCABS with TPE, magnesium
Packaging	Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
Size [L x W x H]	278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in)
Weight	1 kg (2.2 lbs)
