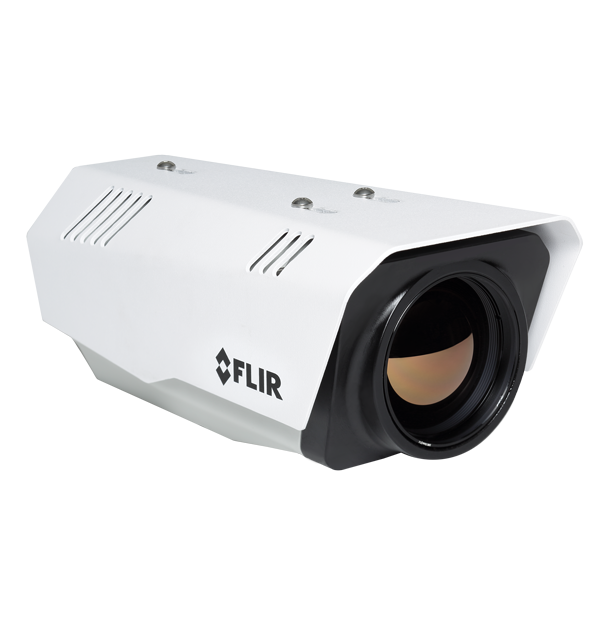

FLIR FC-Series AI-R
Thermal Radiometric Camera
Product Variations
The FLIR FC-Series AI-R is a ruggedized thermal radiometric camera that integrates industry-leading thermal imaging to detect hot spots and combustion risks in harsh outdoor environments and remote areas. When the object surface temperature reaches pre-set upper thresholds, the FC-Series AI-R continuously monitors for temperature changes or hot spots in areas prone to fire risks, such as storage containers, warehouses, combustible piles, landfills, and waste bunkers. Upon detecting a hot spot or significant temperature change, the camera promptly sends an alarm to the Video Management System (VMS) for immediate assessment and swift deployment of response tactics. Integrating Deep Neural Network and motion analytics, with a thermal sensitivity of <35 mK NETD, the FC-Series AI-R offers enhanced situational awareness and clear image quality. This camera also offers a range of lens options and boasts cyber-hardened integration with both FLIR UVMS and third-party VMS, making it a versatile tool for perimeter security and physical asset safety.
• Process temperature differences in real-time to identify risks of overheating
• Monitor relative temperature changes to detect failing components
• Measure surface temperatures with an accuracy of ±5°C (41°F) for targets below 150°C (302°F)
• Monitor relative temperature changes to detect failing components
• Measure surface temperatures with an accuracy of ±5°C (41°F) for targets below 150°C (302°F)
• Four high-performance thermal lenses ranging from an 17° × 14° to a 69° × 56° field of view (FOV)
• Crisp images from premium thermal sensor for rapid visual verification of hot spots using isotherm specific color palettes to differentiate pixels from coldest to warmest detected object surface temperatures
• Video with 640 × 512 full resolution allows to view images, thermal patterns, and contrast despite smoke, low light, light fog, and haze
• FLIR’s custom AGCs provide images with extremely high contrast
• Dynamic Detail Enhancement (DDE) creates sharp edges and contrast that improve analytics performance
• Crisp images from premium thermal sensor for rapid visual verification of hot spots using isotherm specific color palettes to differentiate pixels from coldest to warmest detected object surface temperatures
• Video with 640 × 512 full resolution allows to view images, thermal patterns, and contrast despite smoke, low light, light fog, and haze
• FLIR’s custom AGCs provide images with extremely high contrast
• Dynamic Detail Enhancement (DDE) creates sharp edges and contrast that improve analytics performance
• Set temperature thresholds to be notified in real-time when an object’s surface temperature breaches the upper values
• Reduce false radiometric alarms by combining thermal hot-spot detection with intelligent vehicle detection, to filter out alarms from hot vehicle exhaust pipes in monitored areas
• Seamlessly integrate with FLIR UVMS, as well as with other major third-party video management systems, through the FLIR Nexus® software development kit
• FLIR NEXUS® on-board enables target geolocation for situational awareness, and precise hand-off to a pan-tilt-zoom device
• Reduce false radiometric alarms by combining thermal hot-spot detection with intelligent vehicle detection, to filter out alarms from hot vehicle exhaust pipes in monitored areas
• Seamlessly integrate with FLIR UVMS, as well as with other major third-party video management systems, through the FLIR Nexus® software development kit
• FLIR NEXUS® on-board enables target geolocation for situational awareness, and precise hand-off to a pan-tilt-zoom device
Specifications
| Compliance & Certifications | |
|---|---|
| Compliance | CE Marked; RoHS III Directive 2015/863/EU; WEEE Directive 2012/19/EU |
| Emission | FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits); EN55032 Class A |
| Safety | IEC 62368-1: 2018 |
| Cyber Security | |
|---|---|
| Security | IEEE 802.1X, TLS/HTTPS, User authentication access control via firewall, user credentials with policy enforcement, digest authentication, IP address filtering |
| Environmental | |
|---|---|
| De_Icing_Anti_Icing | MIL-STD 810F:00 + Notice 1:00 + Notice 2:02 + Notice 3:03 |
| Humidity | 0-90% relative humidity |
| IP Rating | IP67 |
| Operating Temperature Range | -40°C to 70°C (-40°F to 158°F) cold start |
| Shock | Shock (Operational) MIL-STD-810G, Method 516.6 Shock (Transportation) IEC 60068-2-27:08 |
| Storage Temperature Range | -50°C to 85°C (-58°F to 185°F) |
| Vandal Resistance | IK10 (except lens and windows) |
| Vibration | IEC 60068-2-64:08 |
| General | |
|---|---|
| Detector Type | Long-life, uncooled VOx microbolometer |
| Dimensions [L x W x H] | With sunshield: 282 mm × 129 mm × 115 mm (11.1 in × 5.1 in × 4.5 in) Without sunshield: 259 mm × 114 mm × 106 mm (10.2 in × 4.5 in × 4.2 in) |
| Effective Resolution | 327,680 pixels |
| Input Voltage | Source: PoE+ (802.3at) 12 VDC 24 VDC 24 VAC (VA) Heater off: <9 W <10 W <9 W <15 W Heater on (@ 100%): <25 W <28 W <25W <32W |
| Surge Immunity on AC Power Lines | ESD: EN 61000-4-2 RS: EN 61000-4-3; EN 55035 (2017 + A11: 2020); EN 50130-4 EFT: EN 61000-4-4 Surge: EN 61000-4-5 CS: EN 61000-4-6 PFMF: EN 61000-4-8 |
| Warranty | Camera: 3 years / Sensor: 10 years |
| Weight | Weight with sunshield 2.2 kg (4.75 lb) Weight without sunshield 1.8 kg (4 lb) |
| Measurement & Analysis | |
|---|---|
| Analytics Features | Region entrance/Intrusion detection, Crossover/fence trespassing, DNN classifier |
| Analytics Management | Web-based configuration and management; masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control |
| Measurement Accuracy | Target below 100ºC (212ºF) ±5ºC (±9ºF) accuracy Target below 150ºC (302ºF) ±5% accuracy Target above 150ºC (302ºF) ±15% accuracy Measured at 25ºC (77ºF) ambient temperature. Error may be greater at extreme temperatures. |
| Object Temperature Range | High Gain Mode: 0ºC to 160ºC (32ºF to 320ºF) Low Gain Mode: 0ºC to 380ºC (32ºF to 716ºF) Video analytics only functional in High Gain Mode |
| System Integration | |
|---|---|
| Analog Video Output Composite | 1Vp-p (PAL or NTSC), 1 × BNC 75 Ω |
| Control Input_Output | 1x dry contact in; 1x relay out (rated load 0.025 A@ 5 VDC) |
| Ethernet | 10/100 Mbps |
| External Analytics Compatible | Yes |
| Network APIs | NEXUS SDK, NEXUS CGI, ONVIF Profile S, G, T |
| Storage Media | Up to 512 GB microSD / microSDHC / microSDXC card (sold separately) |
| Streaming Resolutions | 640 × 512 |
| Supported Protocols | IPV4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SNMP, IEEE 802.1X |
| Thermal Camera | |
|---|---|
| Array Format [Thermal] | 640 × 512 |
| f number [Thermal] | FC-617 AI-R, FC-625 AI-R: f/1.1 FC-644 AI-R: f/1.0 FC-669 AI-R: f/1.4 |
| Field of View [FOV] [Thermal] | FLIR FC-669 AI-R, 69° × 56° (9 mm) f/1.4 lens: 69° × 56° FLIR FC-644 AI-R, 44° × 36° (13 mm) f/1.0 lens: 44° × 36° FLIR FC-625 AI-R, 25° × 18° (25 mm) f/1.1 lens: 25° × 18° FLIR FC-617 AI-R, 17° × 14° (35 mm) f/1.1 lens: 17° × 14° |
| Focal Length, Thermal | FLIR FC-669 AI-R, 69° × 56° (9 mm) f/1.4 lens: 9 mm FLIR FC-644 AI-R, 44° × 36° (13 mm) f/1.0 lens: 13 mm FLIR FC-625 AI-R, 25° × 18° (25 mm) f/1.1 lens: 25 mm FLIR FC-617 AI-R, 17° × 14° (35 mm) f/1.1 lens: 35 mm |
| Focus, Thermal | Athermalized, focus-free |
| Image Uniformity Optimization | Automatic flat field correction (FFC); thermal and temporal triggers |
| Pixel Pitch | 17 µm |
| Spectral Range [Thermal] | 7.5 µm to 13.5 µm |
| Thermal Frame Rate | 30 Hz / 8.3 Hz |
| Thermal Image Settings | Brightness, Contrast, Sharpness, Auto AGC, Gamma, Smart Screen Optimization |
| Thermal Sensitivity_NETD [Thermal] | ≤35 mK @ 25°C (77°F) for f/1.0 |
| Video & Recording | |
|---|---|
| Video Compression | Two independent channels of H.264 / H.265 or MJPEG |
| Video Standard | IP & analog video |
| Video Thermal AGC Region of Interest [ROI] | Default, Presets, and User definable to ensure optimal image quality on subjects of interest |
