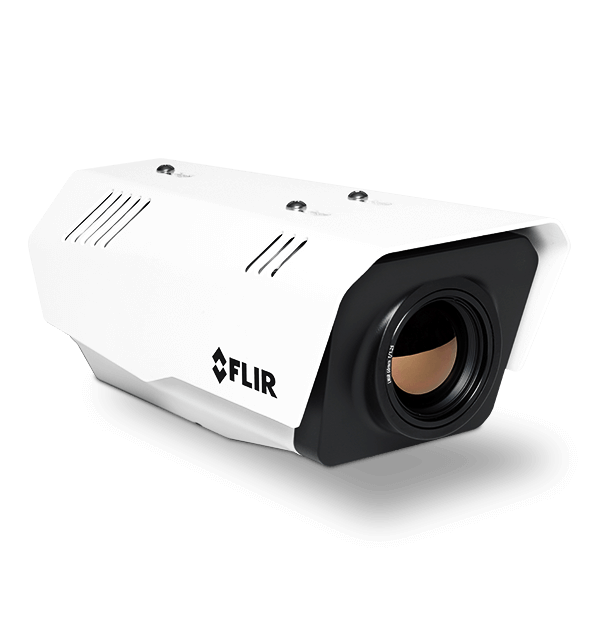

FLIR FC-Series AI
Thermal AI Analytics Camera
Product Variations
The FLIR FC-Series AI is a thermal analytics security camera that offers a reliable, cost-effective way to protect perimeters from intrusion. The AI analytics combines both DNN and motion analytics that together enhances situational awareness and incident detection, enabling users to make better informed decisions that increases safety and improves coordination and efficiency. The FLIR FC-Series AI's thermal sensitivity (<25 mK NETD) provides crisp image clarity positively impacting the quality and performance of analytics. In addition, the FC-Series AI provides the widest range of lens options and cyber-hardened, seamless integration with Video Management Systems including FLIR UVMS and 3rd party video management systems.
Robust DNN video analytics make it possible to differentiate between true threats and nuisance alarms, even when someone is attempting to deceive the system.
FLIR has the widest range of lenses to choose from, with 8 high-performance lenses ranging from 8.6° × 6.6° to 90° × 69° fields of view
Target geolocation for situational awareness and precise handoff to a PTZ device, enabling enhanced decision-making, safety, coordination, and efficiency.
Specifications
| Compliance & Certifications | |
|---|---|
| Approvals | CE: EN55032 Class A; FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits) |
| Certifications | IEC 60068-2-1:2007; IEC 60068-2-2:2007; ISTA-1A (handling) |
| Compliance | CE Marked ; RoHS III Directive 2015/863/EU; WEEE Directive 2012/19/EU |
| Emission | FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits); EN55032 Class A |
| Safety | IEC 62368-1: 2018 |
| Surge Immunity | AC Power Lines and Signal Lines ESD: EN 61000-4-2 RS: EN 61000-4-3; EN 55035 (2017 + A11: 2020); EN 50130-4 EFT: EN 61000-4-4 Surge: EN 61000-4-5 CS: EN 61000-4-6 PFMF: EN 61000-4-8 |
| Environmental | |
|---|---|
| Humidity | 0-95% relative humidity (storage), 0-90% relative humidity (operation) |
| IP Rating [dust and water ingress] | IP66 & IP67 |
| Operating Temperature Range | -40°C to 70°C/-40°F to 158°F (cold start) |
| Shock | MIL-STD-810G, Method 516.6 (Operational) IEC 60068-2-27:08 (Transportation) |
| Storage Temperature Range | -50°C to 85°C (-58°F to 185°F) |
| Vandal Resistance | IK10 (except lens and windows) |
| Vibration | IEC 60068-2-64:08 |
| General | |
|---|---|
| Detector Type | Long-life, uncooled VOx microbolometer |
| Dimensions [L x W x H] | Without sunshield: 259 × 114 × 106 mm/10.2 × 4.5 × 4.2 in With sunshield: 282 × 129 × 115 mm/11.1 × 5.1 × 4.5 in |
| E Zoom | 4x continuous E-Zoom |
| Effective Resolution | 327,680 pixels |
| Focus Range | Athermalized, focus-free |
| Power Consumption | Source: PoE+ (802.3at) 12 VDC 24 VDC 24 VAC(VA) Heater off: <9 W <10 W <9 W <15 W Heater on (@ 100%): <25 W <28 W <25W <32W |
| Warranty | Camera: 3 years / Sensor: 10 years |
| Weight | With sunshield: 7.5/9/13/19/25/35 mm 2.2 kg (4.75 lb) - 60 mm 2.4 kg (5.25 lb) - 75 mm 2.5 kg (5.5 lb) Without sunshield: 7.5/9/13/19/25/35 mm 1.8 kg (4 lb) - 60 mm 2.0 kg (4.5 lb) - 75 mm 2.2 kg (4.75 lb) |
| Measurement & Analysis | |
|---|---|
| Analytics Features | Region Entrance/Intrusion Detection, Crossover/Fence Trespassing, CNN classifier |
| Analytics Management | Web-based configuration and management; masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control |
| System Integration | |
|---|---|
| Analog Video Output Composite | 1Vp-p (PAL or NTSC), 1 x BNC 75 Ω |
| Control Input_Output | 1x dry contact in; 1x relay out (rated load 0.025 A@ 5 VDC) |
| Ethernet | 10/100 Mbps |
| External Analytics Compatible | Yes |
| Network APIs | NEXUS SDK, NEXUS CGI, ONVIF Profile S, G, T |
| Streaming Resolutions | 640 × 512 |
| Supported Protocols | IPV4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1x |
| Video Over Ethernet | Two independent channels of H.264 / H.265 or MJPEG |
| Thermal Camera | |
|---|---|
| Array Format [Thermal] | 640 × 512 |
| f number [Thermal] | FC-608 AI, FC-617 AI, FC-625 AI: f/1.1 FC-610 AI, FC-690 AI: f/1.2 FC-632 AI, FC-644 AI: f/1.0 FC-669 AI: f/1.4 |
| Field of View [FOV] [Thermal] | FLIR FC-690 AI, 90° (7.5 mm) f/1.2 lens: 90° × 69° FLIR FC-669 AI, 69° (9 mm) f/1.4 lens: 69° × 56° FLIR FC-644 AI, 44° (13 mm) f/1.0 lens: 44° × 36° FLIR FC-625 AI, 25° (25 mm) f/1.1 lens: 25° × 18° FLIR FC-617 AI, 17° (35 mm) f/1.1 lens: 17° × 14° FLIR FC-610 AI, 10° (60 mm) f/1.2 lens: 10° × 8.2° FLIR FC-608 AI, 8.6° (75 mm) f/1.1 lens: 8.6° × 6.6° FLIR FC-632 AI, 32° (19 mm) f/1.0 lens: 32° × 26° |
| Focal Length, Thermal | FLIR FC-690 AI, 90° (7.5 mm) f/1.2 lens: 7.5 mm FLIR FC-669 AI, 69° (9 mm) f/1.4 lens: 9 mm FLIR FC-644 AI, 44° (13 mm) f/1.0 lens: 13 mm FLIR FC-625 AI, 25° (25 mm) f/1.1 lens: 25 mm FLIR FC-617 AI, 17° (35 mm) f/1.1 lens: 35 mm FLIR FC-610 AI, 10° (60 mm) f/1.2 lens: 60 mm FLIR FC-608 AI, 8.6° (75 mm) f/1.1 lens: 75 mm FLIR FC-632 AI, 32° (19 mm) f/1.0 lens: 19 mm |
| Image Uniformity Optimization | Automatic flat field correction (FFC); thermal and temporal triggers |
| Lens | FLIR FC-690 AI, 90° (7.5 mm) f/1.2 lens: 7.5 mm FLIR FC-669 AI, 69° (9 mm) f/1.4 lens: 9 mm FLIR FC-644 AI, 44° (13 mm) f/1.0 lens: 13 mm FLIR FC-625 AI, 25° (25 mm) f/1.1 lens: 25 mm FLIR FC-617 AI, 17° (35 mm) f/1.1 lens: 35 mm FLIR FC-610 AI, 10° (60 mm) f/1.2 lens: 60 mm FLIR FC-608 AI, 8.6° (75 mm) f/1.1 lens: 75 mm FLIR FC-632 AI, 32° (19 mm) f/1.0 lens: 19 mm |
| Pixel Pitch | 17 µm |
| Spectral Range [Thermal] | 7.5 µm to 13.5 µm |
| Thermal AGC Modes | Brightness, Contrast, Sharpness, Grey Shade Compression, Gamma, Smart Screen Balance |
| Thermal AGC Region of Interest [ROI] | Default, Presets, and User definable to ensure optimal image quality on subjects of interest |
| Thermal Frame Rate | NTSC: 30 Hz - PAL: 30 Hz / 8.3 Hz |
| Thermal Image Settings | Brightness, Contrast, Sharpness, Auto AGC, Digital Detail Enhancement (DDE), Gamma, Smart Screen Optimization |
| Thermal Sensitivity_NETD | <25 mK @ 25°C (77°F) for f/1.0 |
| Thermal Sensitivity_NETD [Thermal] | <25 mK @ 25°C (77°F) for f/1.0 |
| Video & Recording | |
|---|---|
| Composite Video NTSC or PAL | Hybrid system with IP & analog video, dynamic NTSC or PAL settings |
| Local Storage | Support for up to 512 GB SD Card (not supplied) |
| Video Compression | Two independent channels of H.264 / H.265 or MJPEG |
