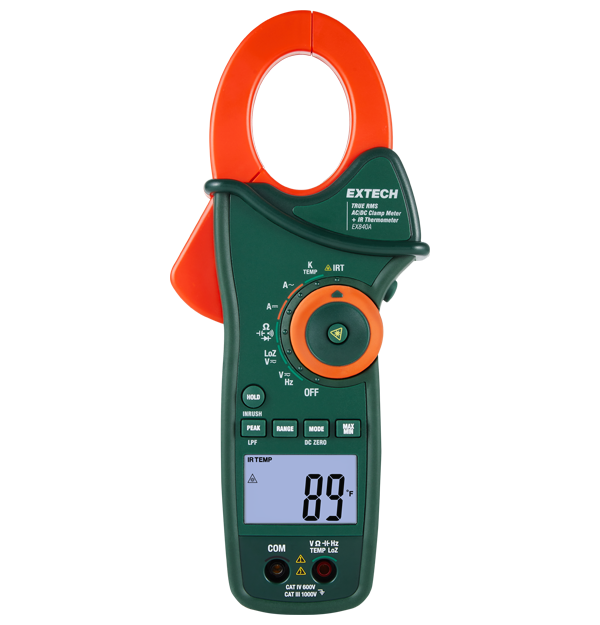

Extech EX840A

1000 A Clamp Meter with IR Thermometer

$289.00

Product Variations

BUY NOW

Find a distributor

The EX840A clamp meter features a unique, built-in, non-contact infrared thermometer with laser pointer to monitor temperature and locate hot spots on motors and electrical devices. A large 6000 count LCD display with bright back lighting allows you to see the reading in dim light. Its ergonomically designed double-molded housing offers a better grip for one-handed operation and the 43 mm (1.7 in) diameter jaw opening is large enough for conductors up to 750 MCM or two 500 MCM. With 1000 A True RMS measurements, measurement of AC/DC current, and a CAT IV-600 V safety rating, the EX840A is ideal for electricians, electrical contractors, and plant maintenance professionals.

• CAT IV-600 V Safety rating
• Built-in IR thermometer for non-contact temperature measurements

• True RMS AC current measurements
• Inrush current to capture start-up current
• 6000 count backlit LCD display

• Low Pass Filter to ensure accurate readings in noisy electrical environments
• Low Impedance Mode (LoZ) to reduce false readings caused by ghost voltages
• Measures up to 1000 A AC/DC current
• Measures up to 1000 V AC/DC voltage

Specifications

General
AC Current	0.1 A to 1000 A
AC Current Basic Accuracy	±(2.5% + 8d)
AC Voltage	0.1 mV to 1000 V
Capacitance	0.001 nF to 40 mF
Continuity	Yes
DC Current	0.1 A to 1000 A
DC Voltage	0.1 mV to 1000 V
Diode Test	Yes
Frequency	0.001 Hz to 100 kHz
Inrush Current	Yes
Jaw Size	43 mm (1.7 in)
Resistance	0.1 Ω to 60 MΩ
Temperature [IR] Max Resolution	-50°C to 270°C (-58°F to 518°F)
Temperature [Type K] Max Resolution	20°C to 760°C (-4°F to 1400°F)
True RMS	Yes
