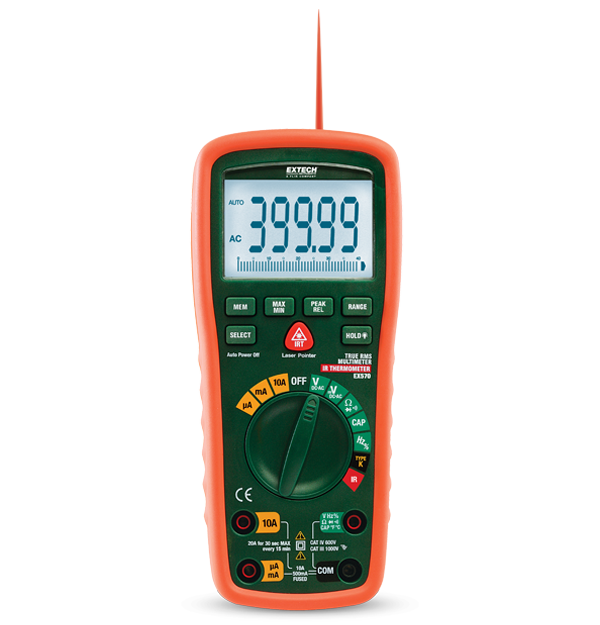

Extech EX570
12 Function True RMS Industrial MultiMeter with IR Thermometer
The rugged Extech EX570 is ideal for industrial/plant maintenance and electrical contractors. It offers advanced multimeter functions, high accuracy (0.06%), True RMS precision plus an integrated infrared thermometer patented by Extech. The EX570 protects users with category IV-600 V and category III-1000 V safety ratings. It measures voltage, millivolt, current, resistance, capacitance, and frequency plus diode and continuity tests. Added functions include min/max, average, hold, relative, peak hold, and quick note memory for 3 readings. Thermocouple temperature readings are complemented by an infrared thermometer for safe, non-contact temperature measurement (30:1 distance to spot ratio). Built in IR simplifies the identification of overheating motors, electrical panels, and other components from a distance and without a separate thermometer. Complete with double-molded test leads, temperature probe, magnetic hanging strap, 9 V battery, and case.
Specifications
| General | |
|---|---|
| AC Current | 0.01µA to 20A |
| AC Voltage | 0.01mV to 1000V |
| Capacitance | 0.001nF to 10,000µF |
| Continuity | Yes |
| DC Current | 0.01µA to 20A |
| DC Voltage | 0.01mV to 1000V |
| Diode Test | 2.8V |
| Distance to Target Ratio | 30:1 |
| Duty Cycle | 0.01 to 99.99% |
| Frequency | 0.0001Hz to 40MHz |
| Resistance | 0.01Ω to 40MΩ |
| Temperature [IR] Basic Accuracy | -22 to 1022°F (-30 to 550°C) |
| Temperature [Type K] Max Resolution | -50 to 1382°F (-45 to 750°C) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.25 × 3.25 × 2.25" (184 × 83 × 57mm) |
| Display | 40000-count segment LCD |
| IP Rating | IP64 |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 1000V, CATIV - 600V |
| Warranty | 3 years |
| Weight | 12.3oz (349g) |
