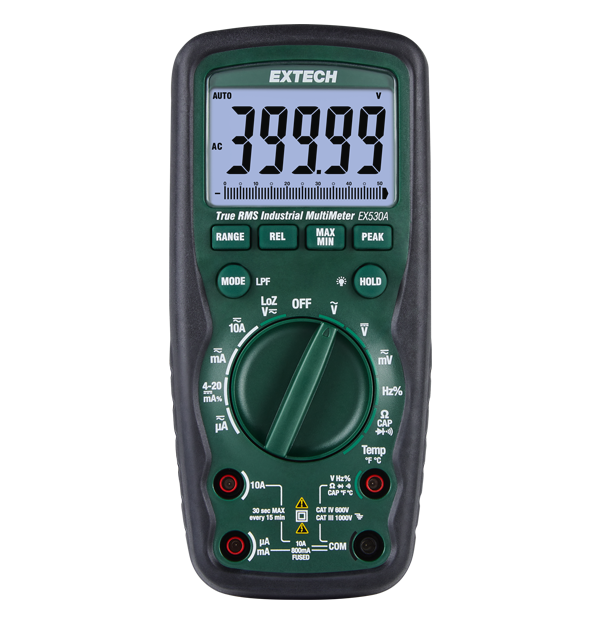

Extech EX530A

Heavy Duty True RMS Industrial Multimeter

$244.00 $207.40

Product Variations

BUY NOW

Find a distributor

The EX530A multimeter is ideal for use in the outdoors, on boats, and in any harsh industrial environment. Waterproof to IP67 standards, it has a double molded housing and is drop-proof up to 2 m (6.5 ft) with a safety rating of CAT IV-600 V. It measures AC/DC voltage and current, resistance, capacitance, electronic and electrical frequency, temperature, 4 mA to 20 mA, and duty cycle. Additional features include: ±0.06% basic accuracy, continuity beeper, diode test (2.8 V open circuit voltage), 50,000 count resolutions, backlit LCD with barograph, peak hold, min/max, relative mode, data hold and 1000 V input protection for all functions. Comes complete with double-molded test leads, type K thermocouple -45°C to 760°C (-50°F to 1400°F), bead wire temperature probe -20°C to 250°C (-4°F to 482°F), magnetic hanging strap, case, and a 9 V battery.

True RMS DMM with 50,000 count large LCD screen, temperature function, and waterproof housing.

AC/DC voltage & current, resistance, capacitance, frequency, temperature, duty cycle, and diode/continuity.

Complete with double molded test leads, magnetic hanging strap, Type K thermocouple, bead wire temperature probe, carrying case, and 9 V battery.

Specifications

General
AC Current	0.1 µA to 10 A
AC Voltage	1 mV to 1000 V
Capacitance	0.01 nF to 99.99 mF
Continuity	Yes
DC Current	0.1 µA to 10 A
DC Voltage	0.1 mV to 1000 V
Duty Cycle	0.1 to 99.9%
Frequency	Electrical: 0.001 Hz to 10 MHz, Electronic: 0.01 Hz to 1 kHz
Resistance	0.01 Ω to 50 MΩ
Temperature [Type K] Max Resolution	-45°C to 760°C (-50°F to 1400°F)
True RMS	Yes

Additional Details
Certifications	CE, UL
Dimensions	183 mm × 83 mm × 55 mm (7.1 in × 3.2 in × 2.1 in)
Display	50,000-count segment LCD
IP Rating	IP67
Power	1 × 9 V battery
Safety Category	CAT IV-600 V
Warranty	3 years
Weight	380 g (13.4 oz)
