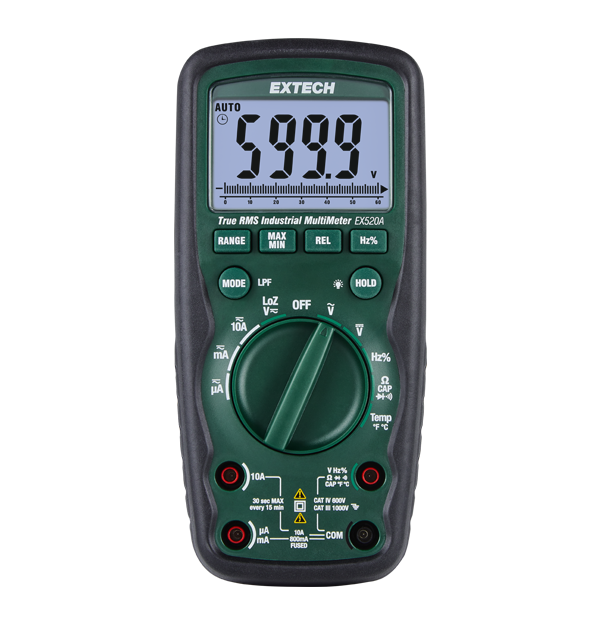

Extech EX520A

Heavy Duty True RMS Industrial Multimeter

$184.00

Product Variations

BUY NOW

Find a distributor

The EX520A heavy duty true RMS industrial multimeter measures AC/DC voltage, current, resistance, capacitance, dual sensitivity frequency (electric 1 kHz/electronic 10 MHz), type K thermocouple -45°C to 760°C (-50°F to 1400°F), and bead wire temperature probe -20°C to 250°C (-4°F to 482°F). It features a 6000 count backlit LCD screen, 0.09% basic accuracy, relative/data hold, and auto an auto power function. With a CAT IV-600 V safety rating and an IP67 rating for water and dust resistance, the EX520A is an ideal tool for electricians, HVAC technicians and benchtop technicians who require accuracy, durability, and safety in their electrical testing equipment.

• CAT IV-600 V safety rating
• IP67 rating for protection against water and dust
• 2 m (6.5 ft) drop proof
• Double-molded test leads included

• True RMS for reliable measurements on non-sine wave forms
• Measure up to 1000 V AC V/DC V plus AC A, DC A, resistance, capacitance, frequency, duty cycle, temperature, diode, and continuity

• Low Pass Filter to ensure accurate readings in noisy electrical environments
• Low Impedance Mode (LoZ) to reduce false readings caused by ghost voltages
• 20 A max current

Specifications

General
AC Current	0.1 µA to 10 A
AC Voltage	1 mV to 1000 V
Capacitance	0.01 nF to 99.99 mF
Continuity	Yes
DC Current	0.1 µA to 10 A
DC Voltage	0.1 mV to 1000 V
Duty Cycle	0.1 to 99.9%
Frequency	Electrical: 0.001 Hz to 10 MHz, Electronic: 0.01 Hz to 1 kHz
Resistance	0.1 Ω to 40 MΩ
Temperature [Type K] Max Resolution	-45°C to 760°C (-50°F to 1400°F)
True RMS	Yes

Additional Details
Certifications	CE, UL
Dimensions	183 mm × 83 mm × 55 mm (7.1 in × 3.2 in × 2.1 in)
Display	6000-count segment LCD
IP Rating	IP67
Power	1 × 9 V battery
Safety Category	CAT IV-600 V
Warranty	3 years
Weight	375 g (13.2 oz)
