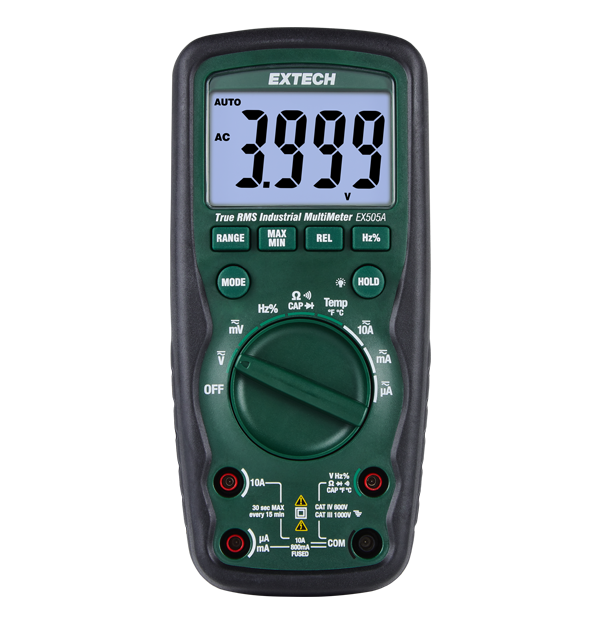

Extech EX505A
Heavy Duty True RMS Industrial Multimeter
The EX505A heavy duty true RMS industrial multimeter measures AC/DC voltage, current, resistance, capacitance, dual sensitivity frequency (electric 1 kHz/electronic 10 MHz), type K thermocouple -20°C to 760°C (-4°F to 1400°F), and bead wire temperature probe -20°C to 250°C (-4°F to 482°F). It features a 6000 count backlit LCD screen, 0.5% basic accuracy, relative/data hold, and an auto power function. With a CAT IV-600 V safety rating and an IP67 rating for water and dust, the EX505A is an ideal tool for electricians, HVAC technicians and benchtop technicians who require accuracy, durability, and safety in their electrical testing equipment.
• IP67 rating for water and dust
• 2 m (6.5 ft) drop proof
• Double-molded test leads included
• Measure up to 1000 V AC V/DC V plus AC A, DC A, resistance, capacitance, frequency, duty cycle, temperature, diode, and continuity
• 0.09% accuracy
• 10 A max current
Specifications
| General | |
|---|---|
| AC Current | 0.1 µA to 10 A |
| AC Voltage | 0.1 mV to 1000 V |
| Capacitance | 0.01nF to 100 µF |
| Continuity | Yes |
| DC Current | 0.1 µA to 10 A |
| DC Voltage | 0.1 mV to 1000 V |
| Diode Test | Yes |
| Duty Cycle | 0.1 to 99.9% |
| Frequency | Electrical: 5 Hz to 1 kHz / Electronic: 0.001 Hz to 10 MHz |
| Resistance | 0.1Ω to 40 MΩ |
| Temperature [Type K] Max Resolution | -20°C to 760°C (-4°F to 1400°F) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 183 mm × 83 mm × 55 mm (7.1 in × 3.2 in × 2.1 in) |
| Display | 6000-count segment LCD |
| IP Rating | IP67 |
| Power | 1 × 9 V battery |
| Safety Category | CAT IV-600 V |
| Warranty | 3 years |
| Weight | 365 g (12.9 oz) |
Resources & Support
Quick Start Guide
Extech EX505A Quick Start Guide
User Manual
Extech EX505A User Manual GB
User Manual
Extech EX505A User Manual
Datasheet
Extech EX5xxA Series Datasheet GB
Datasheet
Extech EX5xxA Series Datasheet
