The FLIR EV45-NACS is equipped with a built-in NACS plug for NACS charging stations or AC wall connectors and is compatible with SAE J1772 Type 1 stations, with a compact adapter included. It is designed for level 1 or level 2 electric vehicle AC charging stations (EVSEs) at both residential and commercial destinations. Maintain EV charging station safety by checking Protective Earth (PE) and electrical wiring, Test charge current interrupt device (CCID) to ensure electrical safety, Verify EV Charger maximum current output, Output charging voltages and frequency for further performance and safety checks, with the option to use the FLIR DM286 IGM multimeter for a comprehensive kit solution. The Bluetooth® FLIR METERLiNK® technology in the DM286 allows you to connect wirelessly to the METERLiNK® app on mobile devices, enabling instantaneous documentation, reporting, and sharing of results.
Test Charge Current Interrupt Device (CCID)
Verify EV charger maximum current output

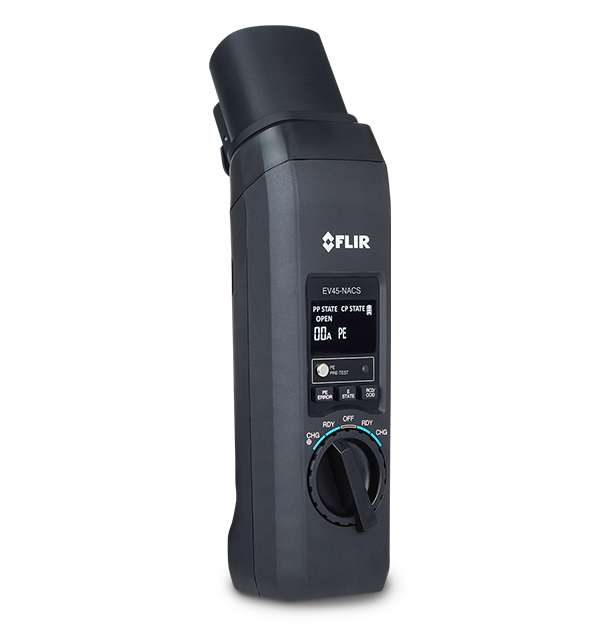

Comprehensive EV charger status indication with color LCD display
Specifications
| Highlighted | |
|---|---|
| Safety Category | CAT II-300 V, IEC 61010-1 |
| Measurement & Analysis | |
|---|---|
| CP Error [E state] Simulation | Pass/Fault (CP signal short-circuited to PE) |
| CP State Simulation | A (Disconnected), B (Connected), C (Charging), D (Charging w/ ventilation), E (Error) |
| Input Type | Measuring Terminals: L1, L2/N, PE Output for test purposes only: Max. 250 V (Single Phase), 50 / 60 Hz, CAT II 300 V, Max. 10 A |
| PE Error Simulation | Pass/Fault (Interruption of PE conductor) |
| PE Pre_Test | Pass/Fault (>50 V AC/DC between PE conductor and touch sensor) |
| PP State Simulation | Open, 13 A, 20 A, 32 A, 63 A |
| RCD_CCID Trip Test | Pass/Fault (Test RCD/CCID activation once tripped) |
| Voltage Phase Indication | L1, L2 |
| Communication & Data Storage | |
|---|---|
| Connector Types | NACS (Built-in), Type 1 (converter included) |
| Output | (Optional) DM286: CP State C / D for AC Voltage with Hz measurement (Optional) IM75-2: CP State B for EV cable Insulation Test |
| Power | |
|---|---|
| Battery Life | Approx. 100 hours, with alkaline batteries |
| Battery Type | 4 × AA Alkaline batteries |
| General | |
|---|---|

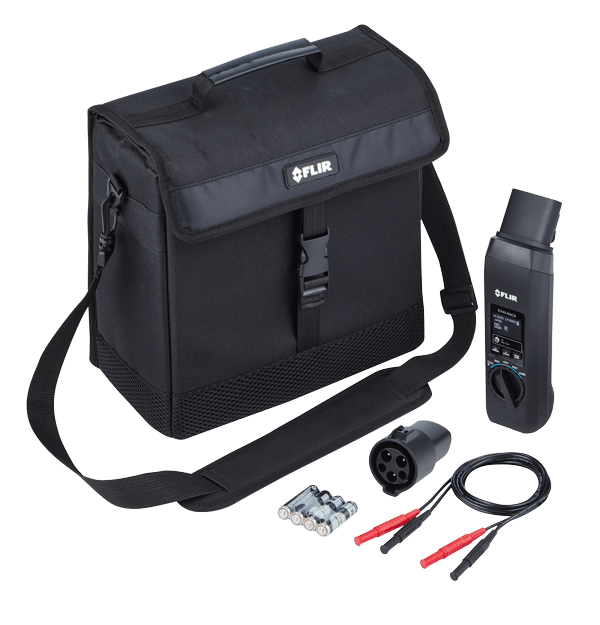

| Box Contents | EV45-NACS Converter for Type 1 Carrying Pouch Test Leads 4 × AA batteries User Manual |
| Size [L x W x H] | 237 mm × 65 mm × 56 mm (9.33 in × 2.56 in × 2.20 in) |
| Weight | 600 g (1.32 lbs) |
| Environmental & Certifications | |
|---|---|
| Certifications | ETL, CE |
| EMC | EN61326-1 |
| Operating Altitude | 2000 m (6560 ft) |
| Operating Ambient Temperature and Relative Humidity [RH] | −10°C to 30°C (14°F to 86°F), <85% RH 30°C to 40°C (86°F to 104°F), <75% RH 40°C to 50°C (104°F to 122°F), <45% RH |
| Safety Category | CAT II-300 V, IEC 61010-1 |
| Storage temperature and relative humidity [RH] | −20°C to 60°C (−4°F to 140°F), 0 to 80% RH (without batteries) |
| Warranty | Limited 3-Year Warranty https://www.flir.com/testwarranty |
