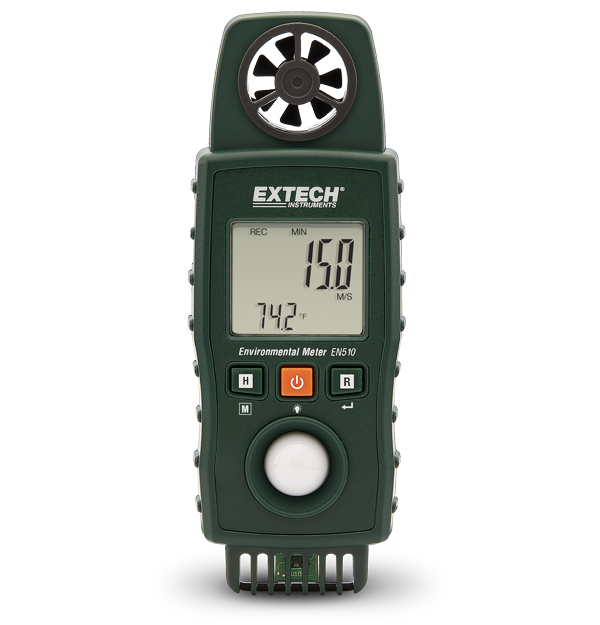

The convenient Extech EN510 is a 10-in-1 environmental meter that can measure air velocity, air flow, air temperature, Type-K temperature, heat index, and humidity. It also offers wet bulb, dew point, windchill, and light level measurements. The EN510 includes a built-in, replaceable low friction ball bearing mini vane wheel, a precision photo diode with cosine and color correction filter, and a capacitive humidity sensor for high accuracy. The Type-K input accepts standard Type K Thermocouple probes to measure surface temperature up to 1300°C (2372°F). The large dual LCD display is backlit for easy use in dimly lit areas, and auto power off (with disable) helps save the battery.
Specifications
| General | |
|---|---|
| Air Velocity [ft_min] | 80 to 3937 ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±3% full scale |
| Air Velocity [ft_min] Max Resolution | 1ft/min |
| Air Velocity [km_h] | 1.4 to 72km/h |
| Air Velocity [km_h] Basic Accuracy | ±3% full scale |
| Air Velocity [km_h] Max Resolution | 0.1km/h |
| Air Velocity [knots] | 0.8 to 38.8 knots |
| Air Velocity [knots] Basic Accuracy | ±3% full scale |
| Air Velocity [knots] Max Resolution | 0.1knots |
| Air Velocity [mph] | 0.9 to 44.7MPH |
| Air Velocity [mph] Basic Accuracy | ±3% full scale |
| Air Velocity [mph] Max Resolution | 0.1MPH |
| Air Velocity [m_s] | 0.4 to 20m/s |
| Air Velocity [m_s] Basic Accuracy | ±3% full scale |
| Air Velocity [m_s] Max Resolution | 0.1m/s |
| Air Volume [CFM] | 0.847 to 1,271,300 |
| Air Volume [CFM] Max Resolution | 0.001CFM |
| Air Volume [CMM] | 0.024 to 36,000 |
| Air Volume [CMM] Max Resolution | 0.001CMM |
| Dew Point | -13.5 to 120.0°F (-25.3 to 49.0°C) |
| Dew Point Max Resolution | 0.1° |
| Heat Index | 32 to 212°F (0 to 100°C) |
| Heat Index Max Resolution | 0.1° |
| Light [Foot Candle] | 0 to 1860 Fc |
| Light [Foot Candle] Basic Accuracy | 0.1Fc |
| Light [Foot Candle] Max Resolution | ±5% |
| Light [Lux] | 0 to 20,000 Lux |
| Light [Lux] Basic Accuracy | 1 Lux |
| Light [Lux] Max Resolution | ±5% |
| Relative Humidity | 10 to 95% |
| Relative Humidity Basic Accuracy | ±0.4% |
| Relative Humidity Max Resolution | 0.1% |
| Temperature [Air] | 32 to 122°F (0 to 50°C) |
| Temperature [Air] Basic Accuracy | ±2.5°F (±1.2°C) |
| Temperature [Air] Max Resolution | 0.1° |
| Temperature [Contact] | -148°F to 2372°F (-100°C to 1300°C) |
| Temperature [Contact] Basic Accuracy | ±(0.4% + 1.8°F); ±(0.4% + 1°C) |
| Temperature [Contact] Max Resolution | 0.1° |
| Wet Bulb | 22.2 to 120°F (-5.4 to 49.0°C) |
| Wet Bulb Max Resolution | 0.1° |
| Windchill | 15 to 112°F (-9.4 to 44.2°C) |
| Windchill Basic Accuracy | ±3.6°F (±2°C) |
| Windchill Max resolution | 0.1° |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.0 × 2.3 × 1" (153 × 58 × 25mm) |
| Power | 3 × AAA (1.5V) batteries |
| Vane | ~1" (27mm) |
| Warranty | 2 years |
| Weight | 5.6oz (160g) |
