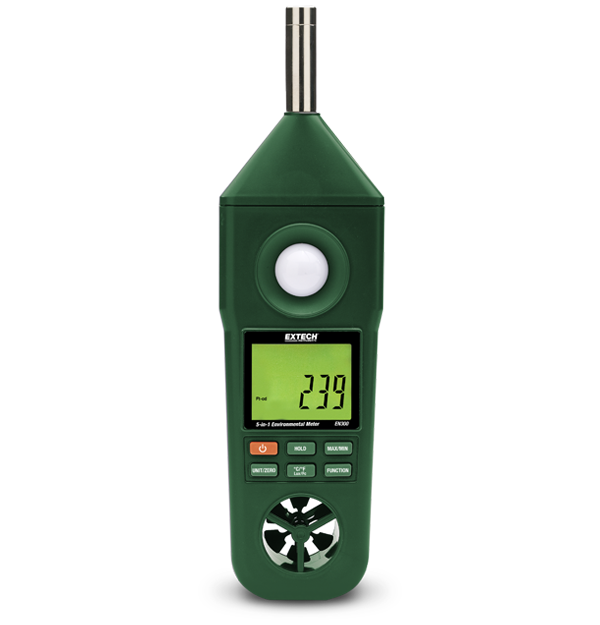

The EN300 Measures Humidity, Temperature, Air Velocity, Light and Sound. Rugged 5-in-1 environmental meter with tripod mount and RS-232 PC interface. Large dual LCD simultaneous display of Temperature and Air Velocity or Relative Humidity. Characters on display reverse direction depending on Hygro-Thermo-Anemometer or Light-Sound Mode. Data Hold, Min/Max, Auto power off, Low Battery/Overrange indication. Built-in low friction vane wheel improves accuracy of air velocity in ft/min, MPH, m/s, km/h, and Knots. Built-in precision thin-film capacitance humidity sensor for fast response. Built in thermistor for ambient temperature measurements. Type K input measures temperature to 2372° (1300°C). Utilizes precision photo diode and correction filter for Cosine and color corrected light measurements. Sound Level measurement meets IEC 61672 class 2 using A frequency weighting and fast response time. Complete with Type K thermocouple probe, pouch case, and six 1.5V AAA batteries.
Specifications
| General | |
|---|---|
| Air Velocity [ft_min] | 80 to 5910 ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±3% full scale |
| Air Velocity [ft_min] Max Resolution | 1ft/min |
| Air Velocity [km_h] | 1.4 to 108km/h |
| Air Velocity [km_h] Basic Accuracy | ±3% full scale |
| Air Velocity [km_h] Max Resolution | 0.1km/h |
| Air Velocity [knots] | 0.8 to 58.3 knots |
| Air Velocity [knots] Basic Accuracy | ±3% full scale |
| Air Velocity [knots] Max Resolution | 0.1knots |
| Air Velocity [mph] | 0.9 to 67MPH |
| Air Velocity [mph] Basic Accuracy | ±3% full scale |
| Air Velocity [mph] Max Resolution | 0.1MPH |
| Air Velocity [m_s] | 0.4 to 30m/s |
| Air Velocity [m_s] Basic Accuracy | ±3% full scale |
| Air Velocity [m_s] Max Resolution | 0.1m/s |
| Frequency | 31.5 to 8,000Hz |
| Light [Foot Candle] | 0 to 1860Fc |
| Light [Foot Candle] Basic Accuracy | ±(5% of reading + 8 digits) |
| Light [Foot Candle] Max Resolution | 0.1Fc |
| Light [Lux] | 0 to 20,000Lux |
| Light [Lux] Basic Accuracy | ±(5% of reading + 8 digits) |
| Light [Lux] Max Resolution | 1Lux |
| Relative Humidity | 10 to 95% |
| Relative Humidity Basic Accuracy | ±4% |
| Relative Humidity Max Resolution | 0.10% |
| Response Time | Fast |
| Sound Range [dB] | 35 to 130dB |
| Sound Range [dB] Basic Accuracy | ±1.4dB |
| Sound Range [dB] Max Resolution | 0.1dB |
| Temperature [Air] | 32 to 122°F/ 0 to 50°C |
| Temperature [Air] Basic Accuracy | ±2.5°F (±1.2°C) |
| Temperature [Air] Max Resolution | 0.1° |
| Temperature [Type K] Max Resolution | -148 to 2372°F (-100 to 1300°C) |
| Temperature [Type N] | ±(1% of reading + 2°F/1°C) |
| Temperature [Type N] Basic Accuracy | 0.1° |
| Weighting | A |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | Meter: 9.8 × 2.8 × 1.3" (248 × 70 × 34mm); Vane: 1.2" (31mm) |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 11.8oz (335g) |
