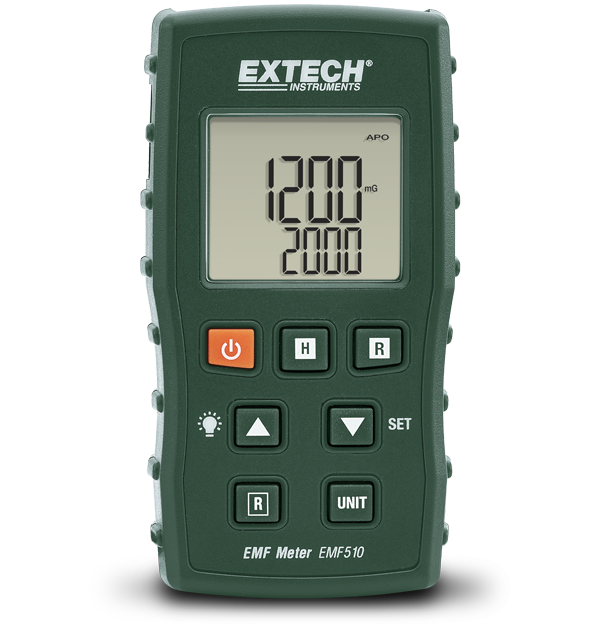

The Extech EMF510 measures energy from electromagnetic fields (EMF) and electrical signals and is sensitive to extremely low frequency levels (ELF). The built-in single-axis sensor is ideal for monitoring power lines, electrical appliances, fans and blowers, and electrical circuits in two ranges with milli-Gauss and micro-Tesla units. The EMF510 features a large backlit LCD for viewing in dimly lit areas, an ergonomic compact design with wrist strap, auto power off, and Min/Max function.
Specifications
| General | |
|---|---|
| Electromagnetic Field [Gauss] | 200.0/2000mG |
| Electromagnetic Field [Gauss] Basic Accuracy | ±(5% of reading + 3 digits) @ 50/60Hz |
| Electromagnetic Field [Gauss] Max Resolution | 0.1/1mG |
| Electromagnetic Field [Tesla] | 20.00/200.0µT |
| Electromagnetic Field [Tesla] Basic Accuracy | ±(5% of reading + 3 digits) @ 50/60Hz |
| Electromagnetic Field [Tesla] Max Resolution | 0.01/0.1µT |
| Frequency Bandwidth | 30 to 300Hz |
| Number of Axes | Single axis |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 4.2 × 2.3 × 1" (107 × 58 × 25mm) |
| Power | 3 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 5.6oz (160g) |
