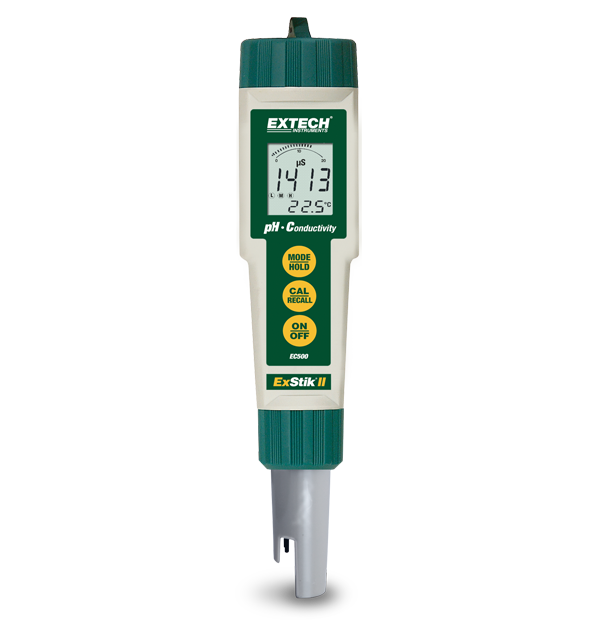

The EC500 is Conductivity/TDS/Temperature Meter. Measures 5 parameters including Conductivity, TDS, Salinity, pH, and Temperature using one electrode. Analog bargraph indicates trends. Memory stores up to 25 labeled readings. Waterproof meter with high-accuracy multi-ranging sensor. Features Auto Power off with disable. Complete with meter and electrode, protective cap, sample cup, four 3V CR-2032 batteries, and 48" (1.2m) neckstrap.
Specifications
| General | |
|---|---|
| Conductivity | 0 to 199µS/cm, 200 to 1999µS/cm, 2.00 to 19.99mS/cm |
| Conductivity Basic Accuracy | ±2% full scale |
| Conductivity Max Resolution | 0.1µS/cm |
| Memory | 25 datasets |
| pH | 0.00 to 14.00pH |
| pH Basic Accuracy | ±0.01pH |
| pH Max Resolution | 0.01pH |
| TDS | 0 to 99.9ppm (mg/L), 100 to 999ppm (mg/L), 1.00 to 9.99ppt |
| TDS Basic Accuracy | ±2% full scale |
| TDS Max Resolution | 0.1ppm (mg/L) |
| Temperature [Contact] | 23° to 194°F (-5 to 90°C) |
| Temperature [Contact] Basic Accuracy | ±1.8°F/1°C |
| Temperature [Contact] Max Resolution | 0.1°F/°C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 1.4 × 6.8 × 1.6" (35.6 × 172.7 × 40.6mm) |
| IP Rating | IP57 |
| Power | 4 × CR-2032 (3V) batteries |
| Warranty | 2 years |
| Weight | 3.8oz (110g) |
Resources & Support
Certification
Extech EC500 Declaration of Conformity
User Manual
Extech EC500 User Manual
Datasheet
Extech EC500 Datasheet
User Manual
Extech EC500 User Manual GB
