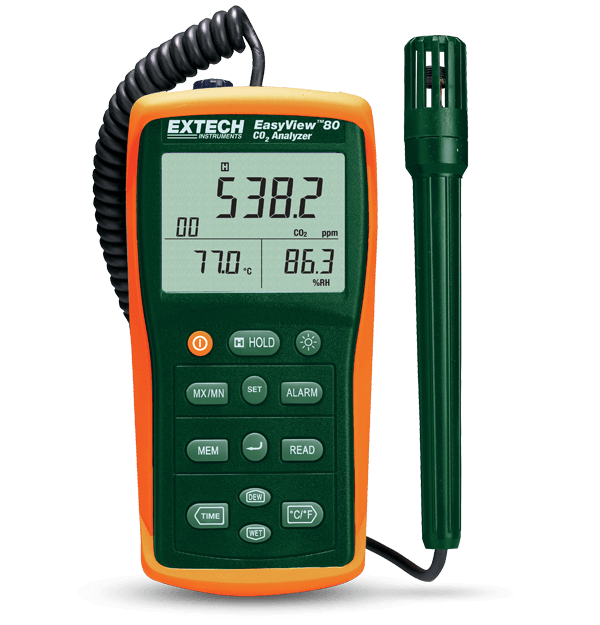

The EA80 checks for Carbon Dioxide concentrations using a maintenance-free dual wave NDIR (non-dispersive infrared) CO2 sensor with a range of 0 to 6,000 PPM. It can automatically data log up to 20,000 data sets or you can manually enter up to 99 sets for later recall. Additional features include: auto power off, data hold, max/min with time stamp and alarm. Comes complete with six AAA batteries, Windows 95/98/NT/2000/ME/XP compatible software and an RS-232 interface cable.
Specifications
| General | |
|---|---|
| Carbon Dioxide [CO2] | 0 to 6,000ppm |
| Carbon Dioxide [CO2] Max Resolution | 1ppm |
| Relative Humidity | 10 to 95% |
| Relative Humidity Max Resolution | 0.10% |
| Temperature [Air] | -4 to 140°F (-20 to 60°C) |
| Temperature [Air] Max Resolution | 0.1°F/°C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.3 × 2.8 × 1.2" (135 × 72 × 31mm) |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 8.2oz (235g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech EA80 Software
User Manual
Extech EA80 User Manual
Certification
Extech EA80 Declaration of Conformity
Datasheet
Extech EA80 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
