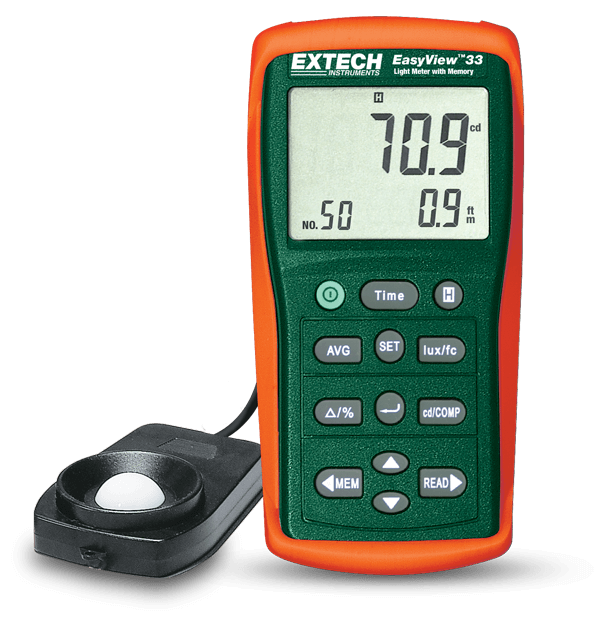

This compact and ruggedly designed meter has a wide measurement range to 99,990 Foot Candles in 5 ranges and 999,990 Lux in 5 ranges with 0.001Fc/0.01Lux resolution. Features include: Store and Recall up to 50 measurements with relative or real time clock stamp, Luminous intensity (candela) calculation, a ripple function that excludes stray light from the primary light source measurement, Multi-point average function, Timed Hold, Relative measurement in absolute value or % deviation, Comparator function with high/low alarms, and Auto Power Off with disable. Complete with built-in stand, light sensor and protective cover with 36” (0.9m) coiled cable, protective holster, 6 AAA batteries, and carrying case.
Specifications
| General | |
|---|---|
| Cosine and Color Corrected | Yes |
| Light [Foot Candle] | 9.999, 99.99, 999.9, 9999, 99,990 Fc |
| Light [Foot Candle] Basic Accuracy | ±3% |
| Light [Foot Candle] Max Resolution | 0.001Fc |
| Light [Lux] | 99.99, 999.9, 9999, 99,990, 999,900 Lux |
| Light [Lux] Basic Accuracy | ±3% |
| Light [Lux] Max Resolution | 0.01Lux |
| Additional Details | |
|---|---|
| Certifications | EA33-NIST_S: CE, NIST EA33_S: CE |
| Dimensions | 5.9 × 2.8 × 1.4" (150 × 72 × 33mm) |
| Display | 999999-count segment LCD |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 11.29oz (320g) |
Resources & Support
User Manual
Extech EA33 User Manual
Certification
Extech EA33 Declaration of Conformity
Datasheet
Extech EA33 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
