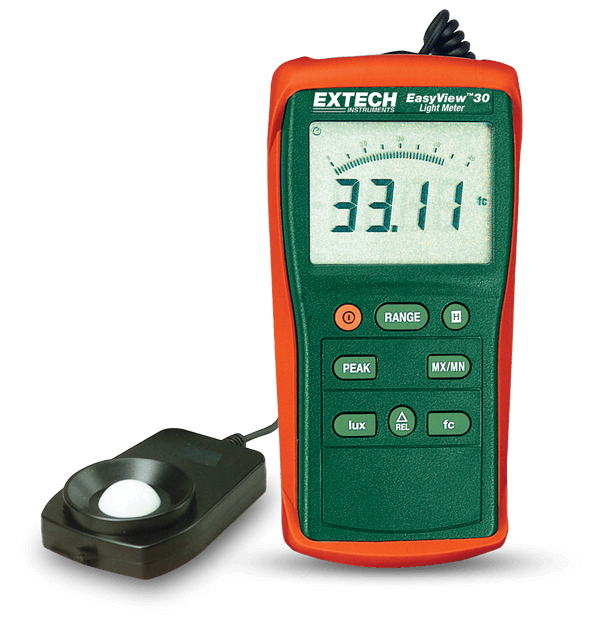

The EA30 Light meter sports a compact and rugged design and features a large display. Multiple wide measuring ranges: 40,000Fc in 4 ranges and 400,000Lux in 5. Data hold freezes reading on display MIN/MAX readings. Zero function Cosine and color corrected measurements. Low battery and overrange indication. Auto power off to save battery life. Meter utilizes precision silicon photodiode sensor with 3ft coiled cable for easy storage. Complete with built-in stand, remote sensor with protective cover, protective rubber holster and 6 AAA batteries.
Specifications
| General | |
|---|---|
| Cosine and Color Corrected | Yes |
| Light [Foot Candle] | 40, 400, 4000, 40,000Fc |
| Light [Foot Candle] Basic Accuracy | ±3% of reading + 0.5% full scale |
| Light [Foot Candle] Max Resolution | 0.01Fc |
| Light [Lux] | 40, 400, 4000, 40,000, 400,000Lux |
| Light [Lux] Basic Accuracy | ±3% of reading + 0.5% full scale |
| Light [Lux] Max Resolution | 1Lux |
| Additional Details | |
|---|---|
| Certifications | EA30-NIST_S: CE, NIST EA30_S: CE |
| Dimensions | 5.9 × 2.8 × 1.4" (150 × 72 × 33mm) |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 8.3oz (235g) |
Resources & Support
Certification
Extech EA30 Declaration of Conformity
User Manual
Extech EA30 User Manual
Datasheet
Extech EA30 EA31 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
