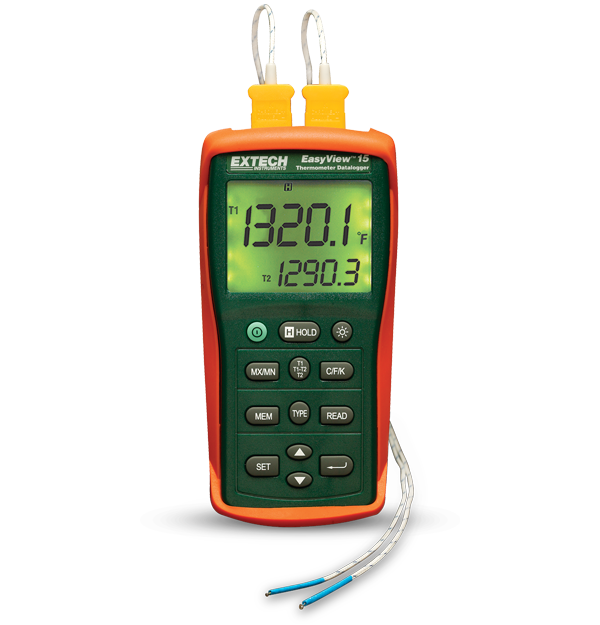

Extech EA15
EasyView™ Dual Input Temperature Datalogger
EA15 is an EasyView Dual Input Temperature Datalogger capable of-200 Degrees to 1999 Degrees Fahrenheit and -200 Degree to 1360 Degree Celsius measurements. Timer function displays elapsed time plus the time when minimum and maximum readings are taken. Records Max/Min readings for later recall. Built-in datalogger stores up to 8800 data sets. Complete with built-in stand, protective holster, two Type K bead wire temperature probes and batteries.
Specifications
| General | |
|---|---|
| Temperature [IR] | ±0.05% of reading (+1.5 °F/+0.75 °C) |
| Temperature [Type E] Basic Accuracy | -200 to 1598 °F (-150 to 870 °C) |
| Temperature [Type E] Max Resolution | ±0.05% of reading (+1.5 °F/+0.75 °C) |
| Temperature [Type J] | 0.1° |
| Temperature [Type J] Basic Accuracy | -200 to 1994 °F (-150 to 1090 °C) |
| Temperature [Type J] Max Resolution | ±0.05% of reading (+1.5 °F/+0.75 °C) |
| Temperature [Type K] | 0.1° |
| Temperature [Type K] Basic Accuracy | 0.1° |
| Temperature [Type K] Max Resolution | -200 to 1999.9 °F (-150 to 1370 °C) |
| Temperature [Type N] | ±0.05% of reading (+1.5 °F/+0.75 °C) |
| Temperature [Type N] Basic Accuracy | 0.1° |
| Temperature [Type N] Max Resolution | -200 to 1999.9 °F (-150 to 1300 °C) |
| Temperature [Type R] | ±0.05% of reading (+1.5 °F/+0.75 °C) |
| Temperature [Type R] Basic Accuracy | 0.1° |
| Temperature [Type R] Max Resolution | 35 to 1999.9 °F (2 to 1767 °C) |
| Temperature [Type S] | ±0.05% of reading (+4 °F/+2 °C) |
| Temperature [Type S] Basic Accuracy | 0.1° |
| Temperature [Type S] Max Resolution | 35 to 1999.9 °F (2 to 1767 °C) |
| Temperature [Type T] | ±0.05% of reading (+4 °F/+2 °C) |
| Temperature [Type T] Basic Accuracy | 0.1° |
| Temperature [Type T] Max Resolution | -200 to 752 °F (-150 to 400 °C) |
| Additional Details | |
|---|---|
| Certifications | EA15-NIST_S: CE, NIST EA15_S: CE |
| Dimensions | 6 × 2.8 × 1.5" (152 × 72 × 37mm) |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 8.3oz (235g) |
