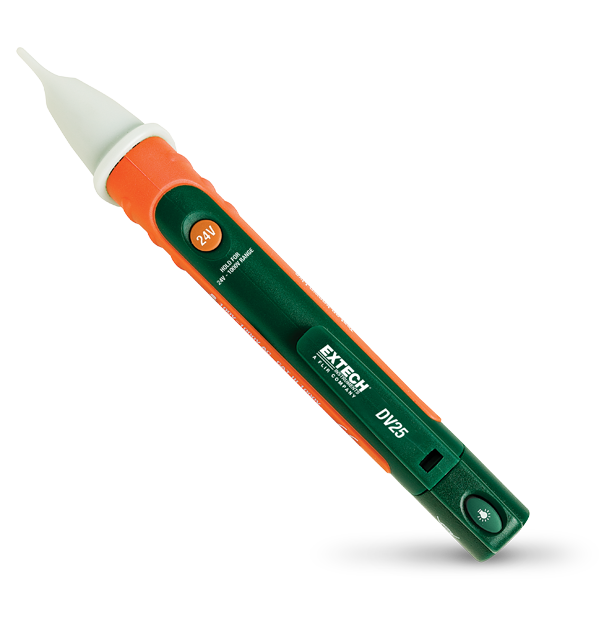

The Extech DV25 is a Dual-Range NCV Detector that combines two models into one. The low range measures down to 24 Volt and the high range measures up to 1000 Volt. Includes audible and visual indication, rugged double molded housing, and a bright built-in LED flashlight. Complete with 2 x AAA batteries.
Specifications
| General | |
|---|---|
| Audible_Visible Indication | Beeper, flashing LED |
| Built_In Flashlight | Yes |
| Detection Distance | <0.2" |
| Frequency Bandwidth | 50/60Hz |
| Voltage Detection [Non_Contact] | 24V to 1000V AC; 100V to 1000V AC |
| Additional Details | |
|---|---|
| Certifications | UL |
| Dimensions | 6.25 × 1" (159 × 25mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATIV - 1000V |
| Warranty | 2 years |
| Weight | 1.5oz (42g) |
Resources & Support
Datasheet
Extech DV25 Datasheet
User Manual
Extech DV25 User Manual
Certification
Extech DV25 Declaration of Conformity
