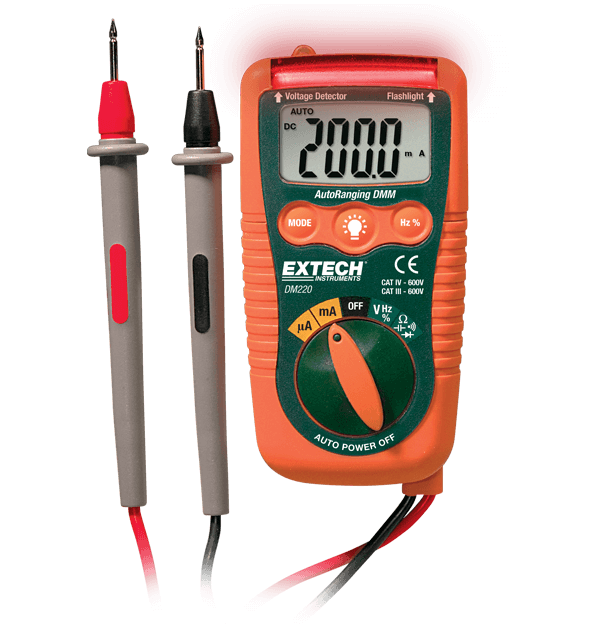

Extech DM220
Mini Pocket MultiMeter with Non-Contact Voltage Detector
This Mini Pocket MultiMeter has a large high contrast 4000 count LCD display, Non-Contact Voltage detection for identifying live circuits, and a built-in Flashlight. It measures AC/DC Voltage, AC/DC Current, Resistance, Frequency, Duty Cycle, Diode Test and has a Continuity Beeper. Additional features include: built-in storage clips for integrated test leads, double molded housing to provide extra protection, over-range and low battery indication. Complete with test leads and 2 AAA batteries.
Specifications
| General | |
|---|---|
| AC Current | 200mA |
| AC Current Basic Accuracy | ±2.5%AC |
| AC Current Max Resolution | 0.1µA |
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±1.5% AC |
| AC Voltage Max Resolution | 1mVAC |
| Capacitance | 200µF |
| Capacitance Max Resolution | 0.001nF |
| Continuity | Yes |
| DC Current | 200mA |
| DC Current Basic Accuracy | ±2.5%DC |
| DC Current Max Resolution | 0.1µA |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±0.8%DC |
| DC Voltage Max Resolution | 0.1mVDC |
| Diode Test | Yes |
| Duty Cycle | 0.5 to 99% |
| Duty Cycle Basic Accuracy | ±(2.0% of reading + 5 digits) |
| Duty Cycle Max Resolution | 0.50% |
| Frequency | 10kHz |
| Frequency Basic Accuracy | ±2.0% |
| Frequency Max Resolution | 0.001Hz |
| Non_Contact Voltage [NCV] Detector | 100 to 600VAC |
| Resistance | 40MΩ |
| Resistance Max Resolution | 0.1Ω |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 4.72 × 2.2 × 1.6" (120 × 55 × 540mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATIII - 1000V, CATIV - 600V |
| Warranty | 2 years |
| Weight | 5.12oz (145g) |
