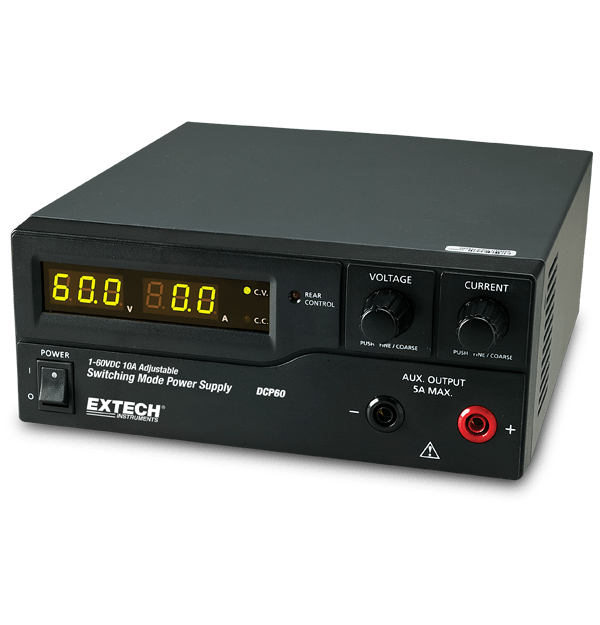

Extech DCP60
600W Switching Power Supply (120V)
The highly efficient Extech DCP60 incorporates upgraded SMPS circuitry with small form factor, benefits from an automatic cross over for CC and CV, has three voltage/current presets, and can be controlled remotely. The DCP60 is perfect for solving a variety of loading conditions and applications. With the 60 V/10 A output, the maximum current can be limited to 5 A using the auxiliary output on the front panel (10 A main output is available on the back panel). The DCP60 also provides dual action rotary encoder control with a push knob for fine and coarse tuning. It enables the quick setting of voltage, current, and three user-defined voltage and current presets. The USB port is avaliable for programming and running ramp and soak cycles with 20 programmable sets of voltage/current and varying test durations (up to 999 cycles). Complete with power cords.
Specifications
| General | |
|---|---|
| Line Current Regulation | 50mA |
| Line Voltage Regulation | 20mV |
| Load Current Regulation | 100mA |
| Load Voltage Regulation | 50mV |
| Output Current | 1 to 10A |
| Output Current Basic Accuracy | ±(0.2% of reading + 3 digits) |
| Output Voltage | 1 to 60V |
| Output Voltage Basic Accuracy | ±(0.2% of reading + 3 digits) |
| Ripple and Noise | ≤5m Vrms, ≤100m Vp-p |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.9 × 3.5 × 8.5" (200 × 90 × 215mm) |
| Warranty | 2 years |
| Weight | 5.7lbs (2.6kgs) |
Resources & Support
User Manual
Extech DCP60 User Manual
Certification
Extech DCP60 Declaration of Conformity
Datasheet
Extech DCP60 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
