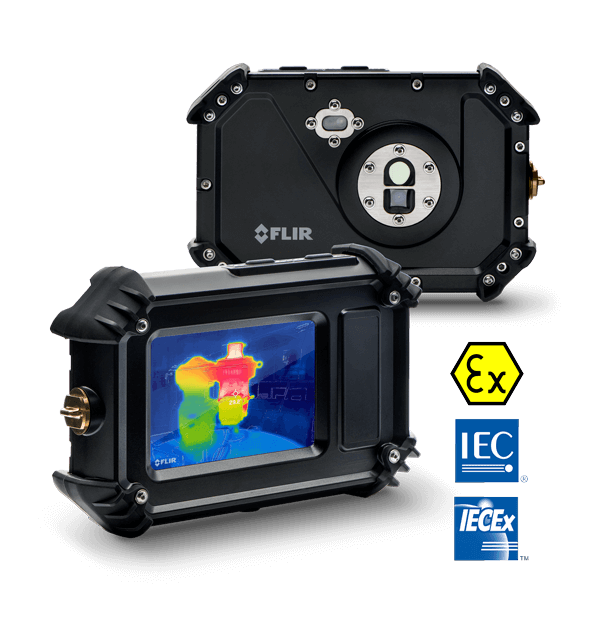

The FLIR Cx5 is certified for use in many explosive environments, eliminating the need to acquire hot work permits due to gas, vapor, and dust, while making T-Class surveys quick and easy. With FLIR MSX® (Multi-Spectral Dynamic Imaging) and 1-Touch Level/Span, the Cx5 can help you identify potential problems quickly to improve plant performance. The 3.5-inch touchscreen interface is simple to use, and 160 × 120 thermal resolution gives you accurate temperature measurement of nearby targets. Built-in FLIR Ignite™ cloud service provides direct data transfer, storage, and backup, so images are always available and securely stored on all your devices. With the FLIR Cx5 in your toolbox, you’ll always be ready to investigate mechanical and electrical equipment around your production site.
Investigate potential problems from a safe distance using FLIR MSX, 160 × 120 true thermal imaging, and 1-Touch Level/Span.
The Cx5 eliminates the need for hot work permits in hazardous locations due to gas, vapor and dust, and it conforms to restricted breathing and dust protection standards.
Wirelessly upload and share data, images, and files to the FLIR Ignite™ cloud, and synchronize the camera with FLIR Thermal Studio software for the most powerful thermography analysis and report generation.
Specifications
| Highlighted | |
|---|---|
| Accuracy | At ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F), 0°C to 100°C (32°F to 212°F): ±5°C (±9°F), 100°C to 400°C (212°F to 752°F): ±5% |
| Digital Camera | 5 MP |
| Image Modes | Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image) |
| Storage Media | Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
| Imaging & Optical | |
|---|---|
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Digital Camera | 5 MP |
| Focus | Focus free |
| Gallery | Thumbnails and custom folder structure |
| Image Frequency | 8.7 Hz |
| Image Modes | Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image) |
| Minimum Focus Distance | Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in) |
| Screen EST Mode | No |
| Spectral Range | 8 to 14 µm |
| Measurement & Analysis | |
|---|---|
| Accuracy | At ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F), 0°C to 100°C (32°F to 212°F): ±5°C (±9°F), 100°C to 400°C (212°F to 752°F): ±5% |
| Camera size [L x W x H] | 168 mm× 112 mm × 42 mm (6.6 in × 4.4 in × 1.7 in) |
| Measurements correction | Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation |
| Object Temperature Range | -20°C to 400°C (-4°F to 752°F) |
| Thermal Sensitivity | <70 mK |
| User Interface | |
|---|---|
| Touchscreen | Capacitive touch |
| Communication & Data Storage | |
|---|---|
| Bluetooth | PAN |
| File Formats | Standard JPEG, 14-bit measurement data included |
| Image Storage | >5000 images |
| Storage Media | Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
| USB | USB 2.0, Type-C connector |
| WiFi | 802.11 a/ac/b/g/n (2.4 and 5 GHz) |
| Power | |
|---|---|
| Battery operating time | 4 hours |
| Battery Type | Rechargeable built-in Lithium ion battery |
| Charging system | USB-C (1 A) |
| Charging Time | 2 hours |
| External Power Operation | 5 V, USB-C |
| Environmental & Certifications | |
|---|---|
| Certifications | EN EIC 60079-0: 2018 IEC 60079-15: 2017 EN EIC 60079-31: 2014 IEC 60079-0: 2017 EN EIC 60079-15: 2019 IEC 60079-31: 2013 |
| Drop test | 2 m (6.6 ft) |
| Encapsulation | Camera housing and lens: IP54 (IEC 60529) |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Tripod Mounting | UNC ¼"-20 (built-in) |
| General | |
|---|---|
| Form Factor |
