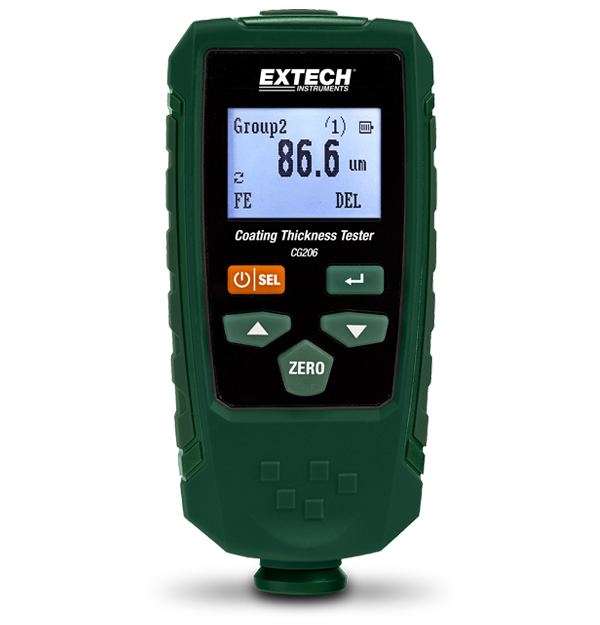

Dual technology provides automatic recognition for ferrous and non-ferrous substrates without having you guess the material. Allows for quick, one-handed operation, non- destructive measurement of the coating thickness on various surfaces.
Specifications
| General | |
|---|---|
| Coating Thickness [Ferrous] | 0 to 1350µm (0 to 53mils) |
| Coating Thickness [Ferrous] Basic Accuracy | ±2.5% |
| Coating Thickness [Ferrous] Max Resolution | 0.1µm (0.004mils) |
| Coating Thickness [Non_Ferrous] | 0 to 1350µm (0 to 53mils) |
| Coating Thickness [Non_Ferrous] Basic Accuracy | ±2.5% |
| Coating Thickness [Non_Ferrous] Max Resolution | 0.1µm (0.004mils) |
| Min Curvature Radius [Ferrous] | 1.5mm (59.06mils) |
| Min Curvature Radius [Non_Ferrous] | 3mm (118.1mils) |
| Min Diameter [Ferrous] | 7mm (275.6mils) |
| Min Diameter [Non_Ferrous] | 5mm (196.9mils) |
| Min Thickness [Ferrous] | 0.5mm (19.69mils) |
| Min Thickness [Non_Ferrous] | 0.3mm (11.81mils) |
| Working Principle [Ferrous] | Magnetic Induction |
| Working Principle [Non_Ferrous] | Eddy Current |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 4.5 × 2.1 × 1.1" (113.5 × 54 × 27mm) |
| Power | 2 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 3.9oz (110g) |
Resources & Support
User Manual
Extech CG206 User Manual
Certification
Extech CG206 Declaration of Conformity
Datasheet
Extech CG206 Datasheet
