CCTV Keyboard
CCTV Keyboard for UVMS

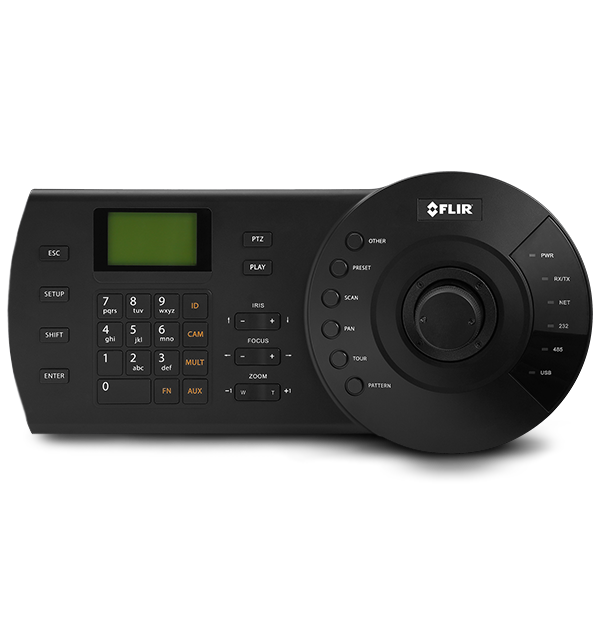

The FLIR CCTV Keyboard for UVMS enables control of PTZ cameras with an easy-to-use 3 axis joystick. The keyboard connects via RS-232 to a UVMS Control Center workstation. The device also allows the user to employ a variety of features on UVMS’ Control Center via keyboard shortcuts.
Specifications
| Environmental | |
|---|---|
| Operating Humidity | <90%RH |
| Operating Temperature | -14~131°F / -10~55°C |
| General | |
|---|---|
| Dimensions | 13" x 5.1" x 4" / 330mm × 129mm × 102mm |
| Power Consumption | Max 5W |
| Power Supply | Input 100V ~240V 50Hz / 60Hz, Output 12V DC 1000mA |
| Warranty | 1 Year |
| Weight | 5.5lbs / 2.5Kg |
| System Integration | |
|---|---|
| Connector | RS232 |
