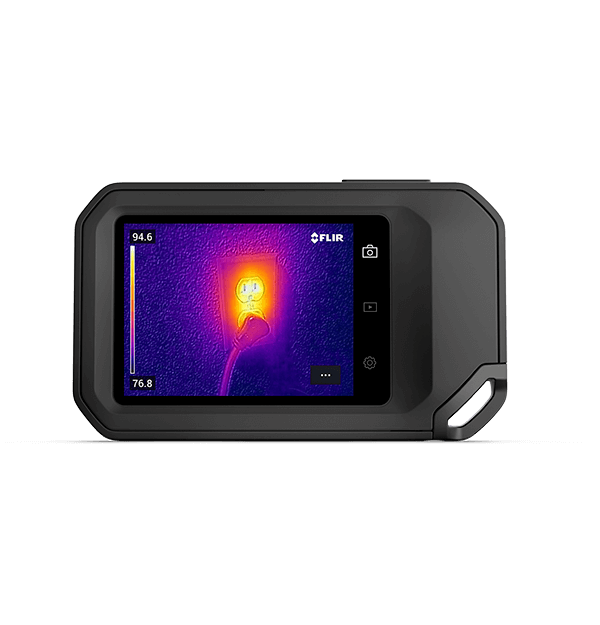

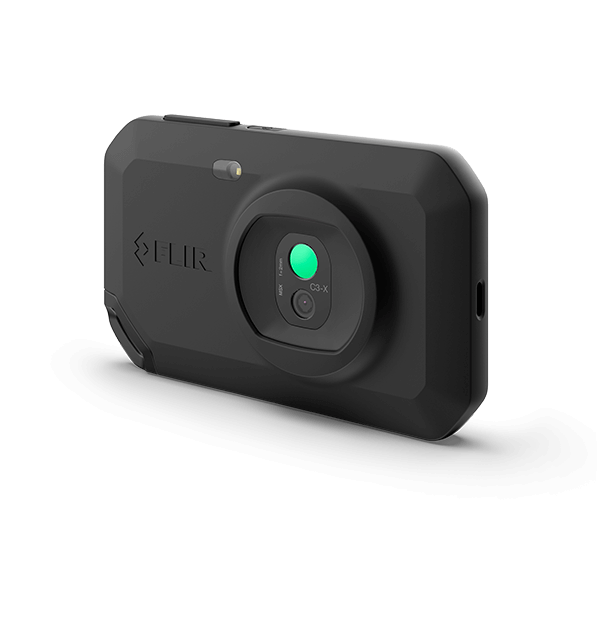

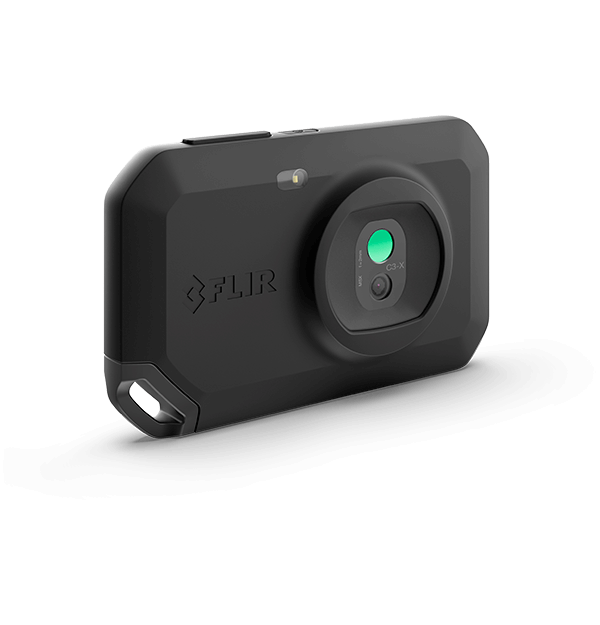

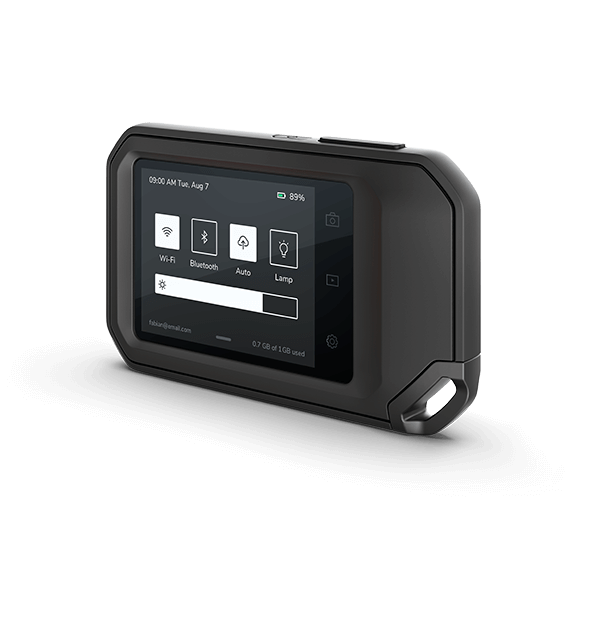

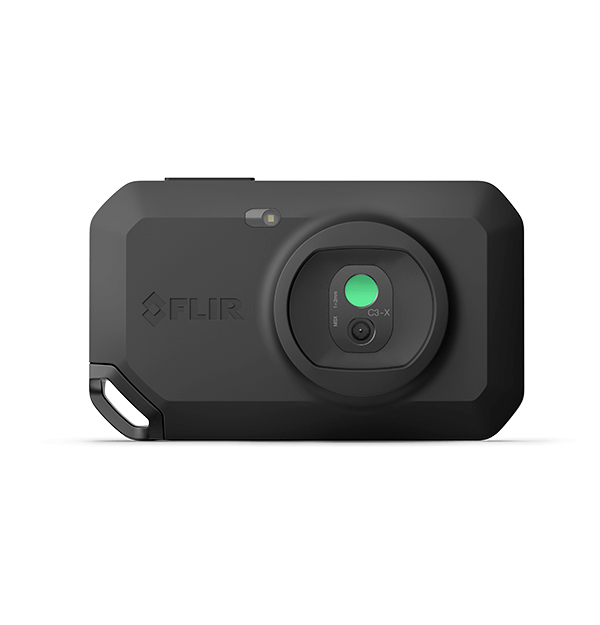

The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.
Reduce diagnostic time, simplify reporting
Quickly find hidden faults and reduce diagnostic time with MSX and 128 × 96 true thermal imaging
Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers
Take the pocket-portable C3-X with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 128 × 96 pixels |
| Thermal Sensitivity_NETD | <70 mK |
| Accuracy | 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)] |
| Field of view [FOV] | 53.6° |
| Digital Camera | 5 MP resolution |
| Image Modes | Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image) |
| Storage Media | Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
| Imaging & Optical | |
|---|---|
| Auto orientation | Yes |
| Camera software update | Automatic over Wi-Fi, USB via computer |
| Color | Black |
| Color palettes | Iron, Gray, Rainbow, Rainbow HC |
| Detector Pitch | 12 µm |
| Detector Type | Focal plane array, uncooled microbolometer |
| Digital Camera | 5 MP resolution |
| Digital Camera FOV | 71.5° × 56° (84° diagonal) |
| Digital Zoom | No |
| Display resolution | 640 × 480 pixels |
| f number | 1.1 |
| Field of view [FOV] | 53.6° |
| Focus | Focus free |
| Gallery | Thumbnails and custom folder structure |
| Image Frequency | 8.7 Hz |
| Image Modes | Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image) |
| IR Resolution | 128 × 96 pixels |
| Minimum Focus Distance | Thermal: 0.1 m (0.32 ft), MSX: 0.3 m (0.98 ft) |
| Spatial resolution [IFOV] | 7.9 mrad/pixel |
| Spectral Range | 8 to 14 µm |
| Thermal Sensitivity_NETD | <70 mK |
| Video Lamp | Yes |
| Measurement & Analysis | |
|---|---|
| Accuracy | 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)] |
| Camera size [L x W x H] | 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in) |
| Measurements correction | Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation |
| Object Temperature Range | -20 to 300°C (-4 to 572°F) |
| Set_up Commands | Local adaptation of units, language, date and time formats, Screen brightness (high, medium, low) |
| User Interface | |
|---|---|
| Display Technology | IPS |
| Languages | Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish |
| Text | Soft keyboard on touchscreen |
| Touchscreen | Capacitive touch |
| Communication & Data Storage | |
|---|---|
| Bluetooth | PAN |
| Image File Format | Standard JPEG, 14-bit measurement data included |
| Image Storage | >5000 images |
| Storage Media | Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
| USB | USB 2.0, Type-C connector |
| WiFi | 802.11 a/ac/b/g/n (2.4 and 5 GHz) |
| Power | |
|---|---|
| Battery capacity | 1800 mAh |
| Battery charge life | >500 cycles |
| Battery operating time | 4 hours |
| Battery Type | Rechargeable built-in Lithium ion battery |
| Battery voltage | 3.7 V |
| Battery weight | 40 g (1.4 oz) |
| Charging system | USB-C (1 A) |
| Charging Temperature | 35°C (95°F) |
| Charging Time | 2 hours |
| External Power Operation | 5 V, USB-C |
| Power Management | Adjustable stand-by and automatic shut-down |
| Environmental & Certifications | |
|---|---|
| Drop test | 2 m (6.56 ft) |
| EMC | EN 301 487-1; EN 301 489-17; FCC 47 CFR Part 15 Class B |
| Encapsulation | Camera housing and lens: IP54 rated (IEC 60529) |
| Humidity [operating and storage] | IEC 60068-2-30/24 h 95% relative humidity 25 to 40°C (77 to 104°F) / 2 cycles |
| Magnetic fields | EN 61000-4-8 level 5 |
| Operating Temperature Range | -10 to 50°C (14 to 122°F) |
| Radio Spectrum | ETSI EN 300 328; EN 301 489; FCC Title 47 CFR Part 15; RSS-247 Issue 2 |
| Relative Humidity | 95% relative humidity 25 to 40°C (77 to 104°F) non-condensing |
| Safety | EN 62368-1 |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| Tripod Mounting | UNC ¼"-20 (built-in) |
| Vibration | 2 g (IEC 60068-2-6) |
| Warranty | http://www.flir.com/warranty/ |
| General | |
|---|---|
| Form Factor | |
| Housing material | PC and ABS, partially covered with TPE; aluminum |
| Packaging Size | 160 × 118 × 93 mm (6.3 × 4.6 × 3.7 in) |
| Packaging Weight | 0.52 kg (1.14 lb) |
| Size [L x W x H] | 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in) |
