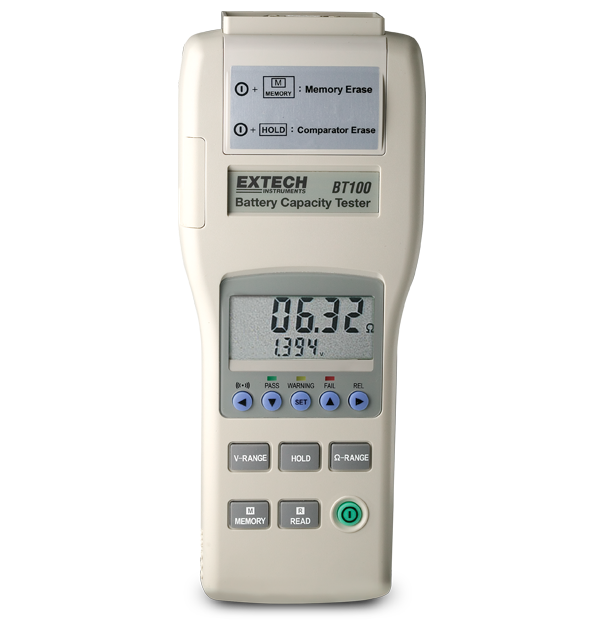

The Extech BT100 is a Battery Capacity Tester. Product can be used to test the condition of batteries quickly and easily. As an AC milliohm-meter, the tester measures DC voltage and AC resistance while the battery is in use, helping to save time on repetitive testing trials or large quantities of batteries.
Specifications
| General | |
|---|---|
| DC Voltage | 4V, 40V |
| DC Voltage Basic Accuracy | ±(0.1% of reading ±6 digits) |
| DC Voltage Max Resolution | 1mV, 10mV |
| Input Voltage | 50VDC max |
| Memory | Manual: 999 sets; Continuous: 9600 sets |
| Resistance | 40mΩ, 400mΩ, 4Ω, 40Ω |
| Resistance Max Resolution | 10 µΩ, 100 µΩ, 1mΩ, 10mΩ |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 9.75 × 4 × 1.75" (250 × 100 × 45 mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 17.5oz (500g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech BT100 Software
User Manual
Extech BT100 User Manual
Certification
Extech BT100 Declaration of Conformity
Datasheet
Extech BT100 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
