Discontinued

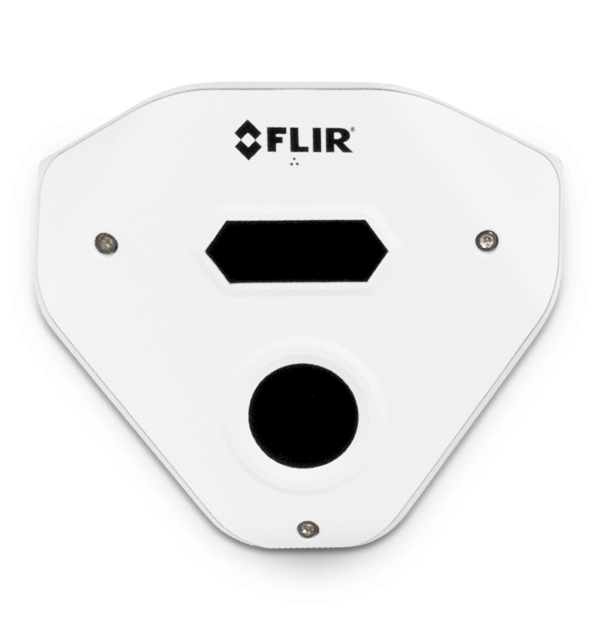

Ariel 3MP Corner Camera
3 Mega Pixel Corner Camera
The Ariel 3MP Corner Camera features a unique corner-shape form factor and extended FOV lens that provides ceiling-to-floor and wall-to-wall coverage. Due to its corner mounting, ligature-free housing and discrete infrared illumination, the Ariel 3 MP Corner camera is an ideal solution for any deployment that requires full coverage from a single camera — including correctional institutions, healthcare facilities, building lobbies and elevators.
Full coverage with a durable housing
A rugged, no-ligature housing resists tampering, yet its sleek design makes it suitable for both industrial and commercial locations.
The camera's specialty lens provides ceiling-to-floor and wall-to-wall coverage with no blind spots.
The camera delivers extreme color sensitivity and IR-illumination that is imperceptible to the human eye.
Specifications
| Compliance & Certifications | |
|---|---|
| International | CE marked, EN61000-6-3 & EN50130-4, RoHS, RCM |
| MTBF [hrs] | 382189 |
| ONVIF Compliance | Onvif Profile S & G |
| USA | UL 60950, FCC Part 15 (subpart B, class A) |
| Cyber Security | |
|---|---|
| Security | User account with password protection and IP filter |
| Environmental | |
|---|---|
| Humidity | 90% (non-condensing) |
| Operating Temperature | -40°C to 50°C (-40°F to 122°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| General | |
|---|---|
| AES | 1/1.75 to 1/10,000 (auto) |
| BLC | On / Off |
| Day_Night Mode | Yes |
| Dimensions | 184 x 179 x 59 mm |
| Enclosure | IK10+ 50 Joule Impact Resistant / IP66 |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Input Voltage | 802.3af PoE |
| Power Connection | PoE |
| Power Consumption | 3.4W / 9.4W with heater and IR |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Tamper Detection | Yes |
| Unit Weight | 1.21kg (2.67 lbs.) |
| Warranty | According to FLIR RMA Policy and Process Notice document |
| System Integration | |
|---|---|
| Alarm In | 1 Dry Alarm Contact |
| Alarm Output | 1 Relay Contact |
| Angle of Illumination | Full 60° |
| Audio Input | Built in Microphone, G.711 a/µ-law, AAC support |
| Audio Intensity Detection | Yes |
| Ethernet | 10/100, auto sensing, half / full duplex (RJ45) |
| IR Distance | up to 10 m (33 ft.) |
| LED Type | High efficiency SMD |
| Network Protocol | TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP |
| Peak Emission Wavelength [nm] | 940.0 |
| Remote Configuration | Via web browser or supported video management software |
| Supported Web Browser | Internet Explorer 10+, Firefox 50+, Chrome 55+ |
| Thermal Camera | |
|---|---|
| AGC | Auto |
| DSS | Max. shutter 1/7.5(6.25)~1/60(50) / min. |
| Image Sensor | 1/2.8" BSI CMOS |
| Visible Camera | |
|---|---|
| AGC | Auto |
| DSS | Max. shutter 1/7.5(6.25)~1/60(50) / min. |
| Image Sensor | 1/2.8" BSI CMOS |
| Lens Type | 2.1mm, 120° HFOV x 90° VFOV, F1.8, D/N |
| Lens Window Transmittance | 0.45 |
| Lens_IR Window | IK10 Vandal Resistant Polycorbonate |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | 3D |
| Sensitivity | 0.02 (color)/0.01 (BW), 0 Lux with IR illuminator ON, measured at 30 IRE |
| Sensor Resolution | 2048 x 1536 |
| Signal to Noise Ratio | ±50 dB |
| WDR | 1/1.75 to 1/10,000 (auto) |
| White Balance | Auto / ATW / Manual / One Push |
| Video & Recording | |
|---|---|
| Maximum Performance | H.264 30/25 fps@QXGA + SVGA(NTSC/PAL) or H.264 15/12 fps@QXGA +1280x960 + SVGA (NTSC/PAL) |
| Rate Control | CVBR |
| Resolution Range | Scalable from SVGA to 3MP |
| SD Card Recording | microSDXC up to 128GB (Class 10) |
| Video Bandwidth | Configurable between 64Kbps and 20Mbps |
| Video Compression | Fully compliant multi-stream H.264 main/high profile + MJPEG |
| Video Motion Detection | Yes |
