Discontinued

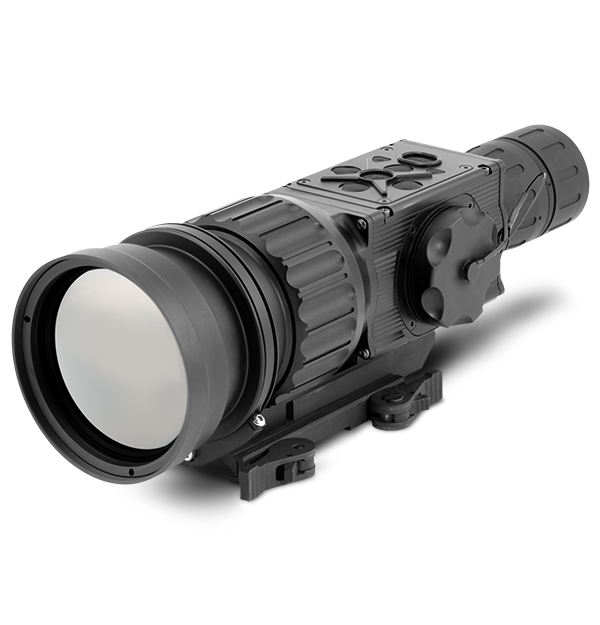

FLIR Apollo Pro LR
100 mm Thermal Clip-On System
Product Variations
Designed for long-range target detection and engagement, the FLIR Apollo Pro LR adds high-performance thermal imaging to any standard day scope. Using an existing ballistic reticle for shot placement, the Apollo Pro LR provides immediate precision by quickly mounting in front of day optics—no rezeroing needed. Accompanying mobile app and remote control simplify quick configuration changes and can provide valuable range estimation, target orientation, and weather data.
Long-Range Precision Meets High-Performance Thermal
Quick-release Picatinny mount installs in seconds while relying on an existing ballistic reticle eliminates the need for rezeroing.
Internal compass and inclinometer work alongside mobile app to provide detailed map orientation, target direction and range, and weather conditions.
100 mm optical lens and 640 resolution FLIR Tau 2 thermal core generate sharp thermal imaging over distances while user-configurable image enhancements help detect targets quickly.
Specifications
| Highlighted | |
|---|---|
| Video Recording | Optional Digital Video Recorder with SD card slot |
| Sensor & Optical | |
|---|---|
| Active Contrast Enhancement | Yes |
| Automatic Gain Control [AGC] | Yes |
| Boresight Accuracy | - |
| Boresight Adjustment [Pix_MOA] | - |
| Boresight Repeatability | - |
| Boresight Retention | - |
| Diopter Adjustment | - |
| Diopter Adjustment Range | - |
| Display Brightness | Discretely Adjustable to 8 Levels |
| Display Type | AMOLED SVGA 060 |
| Elevation Adjustment Range [NTSC _ PAL] | ±36MOA / ±30MOA |
| Exit Pupil Diameter [mm] | 40 mm |
| Eye Relief [mm] | - |
| Field of View [angle] | 6.2° × 5° |
| Focus Range | 10m to inf. |
| Magnification | Unity (1×) |
| Objective Focal Length | 100 mm |
| Objective F_number | 1:1.4 |
| Objective Lens Type | Germanium |
| Pixel Array Format | 640 × 512 |
| Pixel Display Format | 800×600 |
| Pixel Size | 17 µm |
| Refresh Rate | 60 Hz |
| Resolution | 0.17 mRad (35 SOA) |
| Second Generation Digital Detail Enhancement [DDE] _ Sharpness | Yes |
| Silent Shutterless NUC [SSN] | Yes |
| Type of Focal Plane Array | FLIR Tau 2 |
| Environmental & Approvals | |
|---|---|
| Operating Temperature | -51°C to +57°C (-59°F to +134°F) |
| Recoil Resistance | 0.50 BMG weapon shock |
| Storage Temperature | -57°C to +85°C (-70°F to +185°F) |
| Power | |
|---|---|
| Battery | Four CR123A 3V Lithium batteries or four AA 1.5V |
| Battery Life | Up to 7 hrs (optional up to 14 hrs) |
| Battery status indicator | Yes |
| External Power Supply | 6 VDC/ 600mA |
| Start Up Time | 3 sec |
| File Storage & Communication | |
|---|---|
| Analog Input and Output Format [resolution] | NTSC (640 × 480 pixels) / PAL (768 × 574 pixels) |
| Remote Control | Wireless 5-button |
| Video Recording | Optional Digital Video Recorder with SD card slot |
| UI-UX | |
|---|---|
| Digital Angle Cosine Indicator | Yes |
| Focus Method | Manual |
| Information_Based Histogram Equalization [IBHEQ] _ SKY_SEA | Yes |
| Reticle Color | Black, White, Red, Cyan |
| Smart Scene Optimization | Yes |
| Thermal image palettes | White Hot, Black Hot, Sepia, Fusion, Rainbow, and Rain |
| User_Controlled Manual Non_Uniformity Correction_ Flat_Field Correction [UCMNUC_ FFC] | Yes |
| System Overview | |
|---|---|
| Digital Compass | Yes |
| Digital Inclinometer | Yes |
| Digital Zoom | 1×, 2×, 4×, and 8× |
| Height of the Scope Axis above Rail | 46 mm (1.81 in) |
| Reticle Type | 6-Pattern Digitally Controlled Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, and No Reticle |
| Warranty | 2 years standard, 3 years with product registration |
| Warranty on Detector | 10 Years |
| Windage Adjustment Range [NTSC_ PAL] | ±48MOA / ±40MOA |
| Windage_Elevation Boresight Increment [NTSC] | 0.6 mOA, 0.17 mils, 0.62 in/100 yd, 1.7 cm/100 m |
| Windage_Elevation Boresight Increment [PAL] | 0.5 mOA, 0.15 mils, 0.5 in/100 yd, 1.5 cm/100 m |
| Physical | |
|---|---|
| Dimensions [L x W x H] | 287 × 90 × 100 mm (11.3 × 3.5 × 3.9 in) |
| Weight [w_o Batteries] | 1.3 kg (2.9 lbs) |
| Accessories | |
|---|---|
| Included Accessories | Battery Set, AWReC (Advanced Wireless Remote Control 5-buttons), Soft carrying Case, Light-Suppressor 1, Light-Suppressor 2, Video Cable, Picatinny adapter for AWReC (Advanced Wireless Remote Control), Instruction Manual with Warranty Card, Light-Suppressor 3, Packing Box, Key (used to remove the battery cap insert), Battery Box Extender Ring (for AA batteries), Battery Cartridge (for AA batteries), Light Suppressor for Day Scope, Lens Tissue |
| Optional Accesories | Mil-Standard Hard Shipping/Storage Case #102, Extended Rail Adapter #85, Extended Battery Pack, AMRF2200 - Advanced Modular Range Finder, HD DVR Digital Video Recorder, IRIS Wireless Head Mounted Display |
