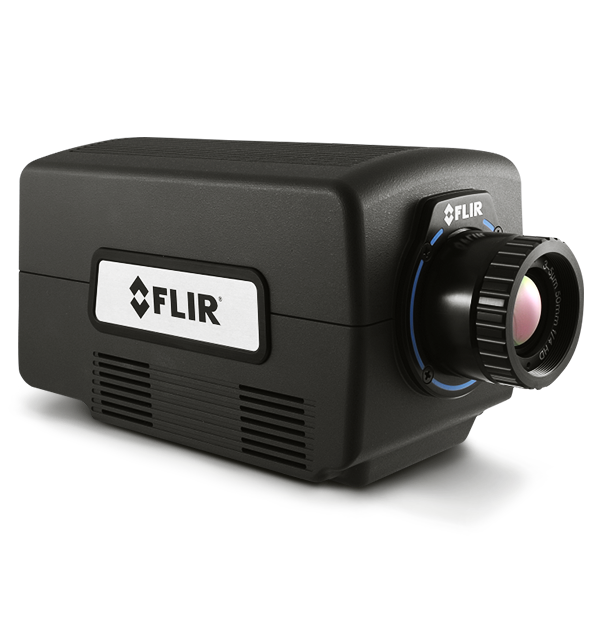

The FLIR A8300sc offers the speeds and sensitivity researchers need to capture rapid thermal events and record the most accurate temperature measurements. This MWIR can stream crisply detailed, low-noise HD data over Gigabit Ethernet and CoaXPress to a PC for live image viewing and recording. With full user control over integration times, synchronization inputs, and window sizes, the A8300sc is the perfect tool for electronics inspection, thermal microscopy, non-destructive testing, and more R&D applications.
Specifications
| Highlighted | |
|---|---|
| Resolution | 1280 x 720 |
| Detector Pitch | 14 µm |
| Spectral Range | 3.0 – 5.0 µm |
| Detector Type | FLIR indium antimonide (InSb) |
| Camera f_number | f/4.0 |
| Dynamic Range | 14-bit |
| NETD | <25 mK* *Measured at 25°C, mid-well, with lens |
| Frame Rate [Full Window] | 60 Hz |
| Max Frame Rate | 60 Hz @ Full Window |
| Standard Temperature Range | -20°C to 350°C (-4°F to 662°F) |
| Optional Temperature Range | Up to 1,500°C (2,732°F) Up to 2,000°C (3,632°F) |
| Filtering | Behind the Lens |
| Focus | Manual |
| Imaging & Optical | |
|---|---|
| AGC | Linear, PE, DDE |
| Available Lenses | 17 mm, 25 mm, 50 mm, 100 mm |
| Camera Control | GenICam |
| Camera f_number | f/4.0 |
| Close_up Lenses_Microscopes | 1x, 4x |
| Detector Pitch | 14 µm |
| Detector Type | FLIR indium antimonide (InSb) |
| Digital Data Protocol | Gigabit Ethernet (GigE Vision 2.0), USB3 (USB3 Vision), CoaXPress |
| Dynamic Range | 14-bit |
| Filtering | Behind the Lens |
| Focus | Manual |
| Frame Rate [Full Window] | 60 Hz |
| HD Video | HD-SDI |
| Max Frame Rate | 60 Hz @ Full Window |
| Minimum Integration Time | 500 ns |
| NETD | <25 mK* *Measured at 25°C, mid-well, with lens |
| Operability | >99.5% (99.9% typical) |
| Palette | Selectable 8-bit |
| Readout | Snapshot |
| Readout Modes | Asynchronous Integrate While Read; Asynchronous Integrate Then Read |
| Resolution | 1280 x 720 |
| Sensor Cooling | Closed Cycle Linear |
| Spectral Range | 3.0 – 5.0 µm |
| Subwindow Modes | Flexible (FPA centered) |
| Well Capacity | 5.9 M electrons |
| Zoom | Video Zoom is Auto Selected; Full Res = 1x, 1/4 Res = 2x |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C or ±2% of reading Valid for 0°C to 3000°C on standard lens & filter configurations only ±1°C or ±1% of reading optional upgrade |
| Optional Temperature Range | Up to 1,500°C (2,732°F) Up to 2,000°C (3,632°F) |
| Standard Temperature Range | -20°C to 350°C (-4°F to 662°F) |
| Communication & Data Storage | |
|---|---|
| Analog Video | NA |
| Command and Control | GenICam |
| Synchronization Modes | Sync In, Sync Out |
| General | |
|---|---|
| Size [L x W x H ] w_o Lens | 8.9 x 4.6 x 5.3 in (226 x 117 x 135 mm) |
| Weight [without lens] | 8.2 lbs (3.73 kg) |
| Power | |
|---|---|
| Power | 24 VDC (<50 W steady state) |
| Environmental & Certifications | |
|---|---|
| Mounting | 2 x 1/4"–20, 1 x 3/8"–16, 4 x 10/24 |
| Operating Temperature Range | -40°C to 50°C (-40°F to 122°F ) |
| Shock_vibration | 40 g, 11 msec 1/4 sine pulse / 4.3 g RMS random vibration, all 3 axes |
| Storage Temperature Range | -55°C to 80°C (-67°F to 176°F ) |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
