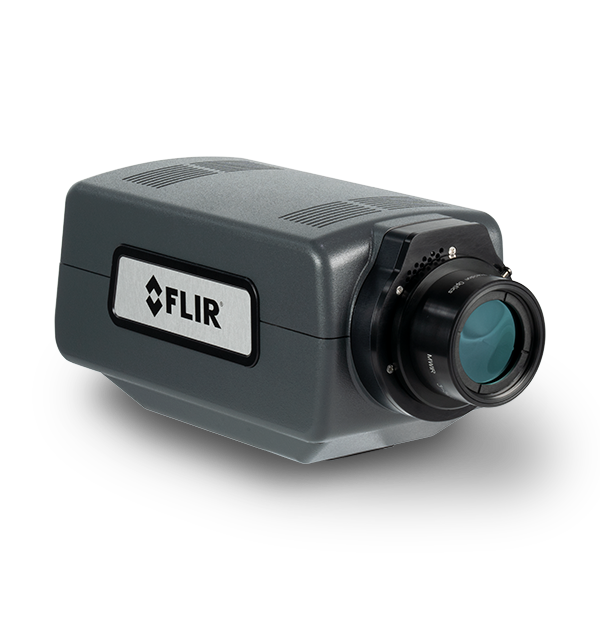

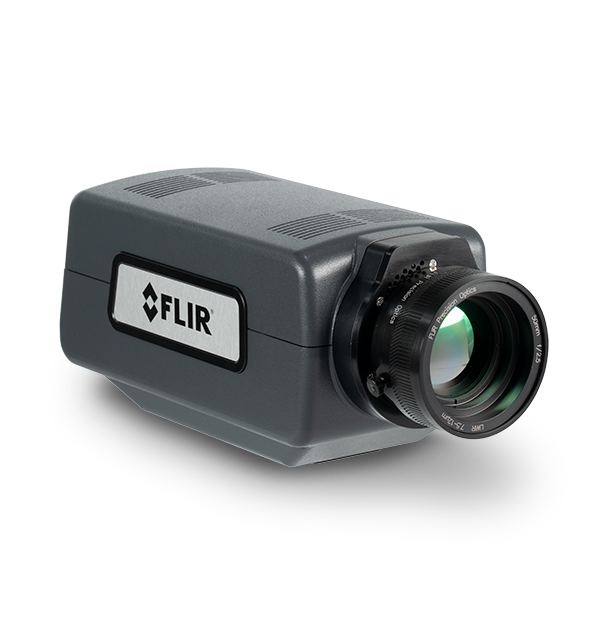

The FLIR A6780 SLS LWIR camera system makes it easy to measure temperatures of rapid thermal events and high-speed targets, making it an ideal choice for industrial, military, and manufacturing R&D applications. Thanks to its cooled, longwave Strained Layer Superlattice (SLS) detector, the A6780 provides faster snapshot speeds than other detectors for crisp images without motion blurring. Manual and remote-focus lens options provide flexibility to maximize the number of measurement pixels on the object of interest. Simple, single cable connectivity using Gigabit Ethernet provides complete camera control, plus data capturing in FLIR Research Studio software – so users can analyze and understand data faster than ever before.
ACCURATELY MEASURE TEMPERATURES OF FAST-MOVING TARGETS
Offers sub-windowed frame rates up to 4,130 Hz, a suite of lens options, and a built-in 3-position warm filter wheel to quickly switch between standard and high-temperature ranges.
Control the camera and stream real-time data using a single Gigabit Ethernet cable; capture the data you want when you want it thanks to advanced triggering and synchronization capabilities.
FLIR Research Studio’s simple Connect–View–Record–Analyze workflow helps you collect and analyze data quickly and collaborate with your team easily.
Specifications
| Highlighted | |
|---|---|
| Resolution | 640 × 512 |
| Pixel Size [Square] | 15 µm |
| Spectral Range | A6781 SLS: 7.5 µm (lower), 10-11 µm (upper) A6783 SLS: 7. 5µm (lower), 10-11 µm (upper) |
| Detector Type | Strained-Layer Superlattice |
| Camera f_number | A6781 SLS: f/2.5 A6783 SLS: f/4.0 |
| Dynamic Range | 14-bit |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to 125 Hz |
| Integration Time | 480 ns to ~full frame |
| Standard Temperature Range [with band matched optics] | -20°C to 350°C (-4°F to 662°F) |
| Optional Temperature Range [with band matched optics] | 250°C to 2000°C/482°F to 3632°F (ND1); 500°C to 3000°C/932°F to 5432°F (ND2) |
| Filter Holder [Warm] | 3-position motorized filter wheel ( 1 inch diameter filters) |
| Focus | Motorized (compatible w/ manual) |
| Imaging & Optical | |
|---|---|

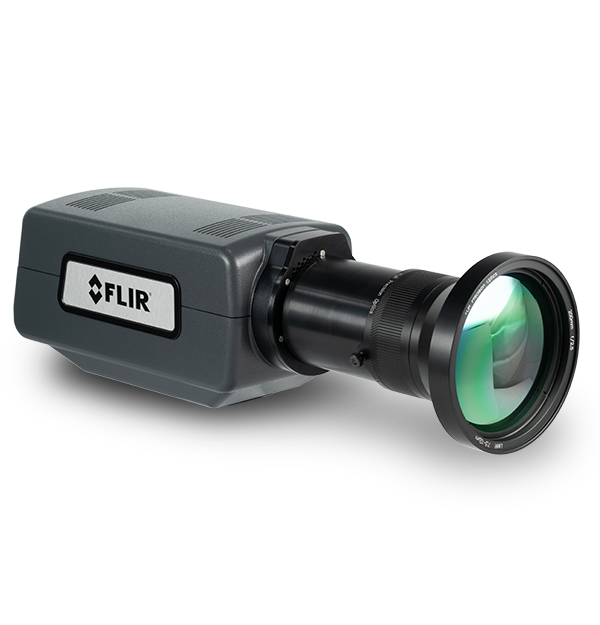

| Available Lenses | Manual (7.5-12 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm Motorized (7.5-12 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm |
| Camera f_number | A6781 SLS: f/2.5 A6783 SLS: f/4.0 |
| Close_up Lenses_Microscopes | 1X |
| Detector Type | Strained-Layer Superlattice |
| Dynamic Range | 14-bit |
| Filter Holder [Warm] | 3-position motorized filter wheel ( 1 inch diameter filters) |
| Focus | Motorized (compatible w/ manual) |
| Frame Rate [Full Window] | Programmable; 0.0015 Hz to 125 Hz |
| Image Time Stamp | Yes |
| Integration Time | 480 ns to ~full frame |
| Lens Interface | FLIR FPO-M (4-tab bayonet, motorized) |
| On Camera Image Storage | None |
| Operability | ≥98% (≥99% typical) |
| Overlay | Fixed configuration, can be turned off |
| Palette | Selectable 8-bit |
| Pixel Clock | 50 MHz |
| Pixel Size [Square] | 15 µm |
| Radiometric Data Streaming | Gigabit Ethernet (GigE Vision) |
| Readout Modes | Asynchronous integrate while read, asynchronous integrate then read |
| Readout Type | Snapshot |
| Resolution | 640 × 512 |
| Sensor Cooling | Closed-cycle rotary |
| Spectral Range | A6781 SLS: 7.5 µm (lower), 10-11 µm (upper) A6783 SLS: 7. 5µm (lower), 10-11 µm (upper) |
| Standard Video | SDI |
| Standard Video Zoom | Automatic, variable |
| Subwindow Modes | Flexible windowing down to 16 × 4 (steps of 16 columns, 4 rows) |
| Thermal Sensitivity_NETD [typical] | ≤40 mK (typical) |
| Video Modes | SDI: 720p@50/59.9, 1080p@25/29.9 |
| Measurement & Analysis | |
|---|---|
| Accuracy | ≤100°C (≤212°F), ±2°C (±3.6°F) accuracy (±1°C/1.8°F typical); >100°C ±2% of reading (±1% typical) |
| Ambient Drift Compensation [with factory cal] | Yes |
| Automatic Gain Control | Manual, Linear, Plateau equalization, DDE |
| Optional Temperature Range [with band matched optics] | 250°C to 2000°C/482°F to 3632°F (ND1); 500°C to 3000°C/932°F to 5432°F (ND2) |
| Standard Temperature Range [with band matched optics] | -20°C to 350°C (-4°F to 662°F) |
| Communication & Data Storage | |
|---|---|
| Command and Control | GenICam (GigE), RS-232 |
| Synchronization Modes | Sync In, Sync Out |
| General | |
|---|---|
| Size [L x W x H ] w_o Lens | 226 × 102 × 109 mm (8.9 × 4.0 × 4.3 in) |
| Weight [without lens] | 2.3 kg (5 lbs) |
| Power | |
|---|---|
| Power | 24 VDC (<24 W steady state) |
| Environmental & Certifications | |
|---|---|
| Mounting | 2 × ¼" -20 tapped holes, 1 × 3/8"-16 tapped hole, 4 × 10-24 tapped holes |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Shock_vibration | 40 g, 11 msec ½ sine pulse/4.3 g RMS random vibration, all 3 axes |
Accessories
- 1x Microscope Protective Window - MWIR & LWIR (4206654-6)
- FPO Bayonet Plug, 4-Tab FPO Bayonet (4142249)
- FLIR A858x + A678x Camera Filter Holder, Behind The Lens, 1" Diameter, 4-tab FPO Motorized Bayonet (4229763)
- Extender Ring Set, 4 Rings 0.25", 0.50", 0.75", & 1.00", 4-Tab FPO Bayonet (4205079)
- FLIR Cooled Science X-Series + A-Series Camera Universal Lens Support (4210086)
- FLIR Cooled Science A-Series + X-Series Camera Power Connector (26399-000)
