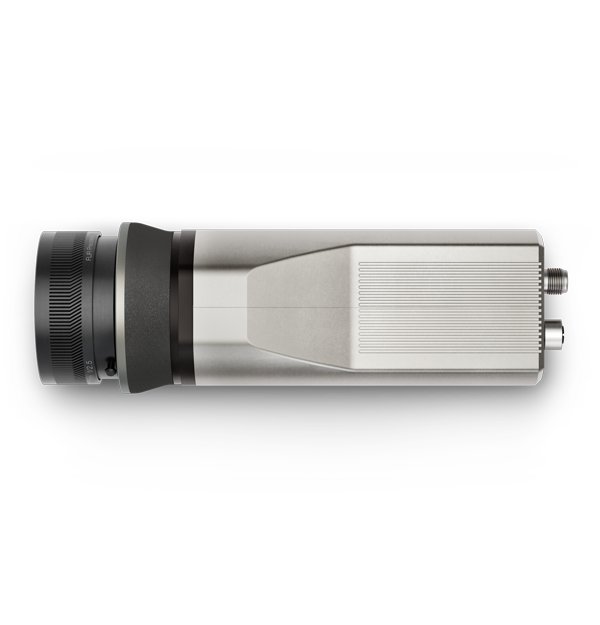

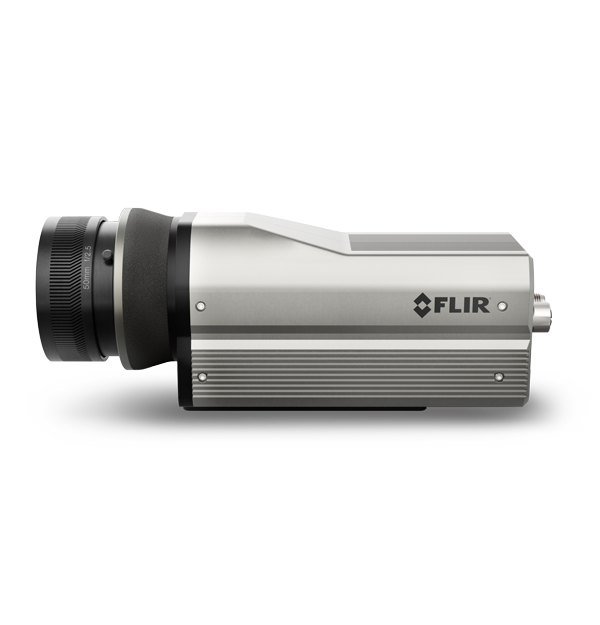

FLIR A6301
Advanced Thermal Camera for 24/7 Process Monitoring and Quality Control
Product Variations
FLIR A6301 Advanced Thermal Camera offer engineers and system integrators the best and most advanced thermal camera for Process Control, Monitoring and Quality Assurance. Its industry-leading 27,000-hour cryocooler lifetime maximizes camera uptime for consistent production throughput, while minimizing cost through planned maintenance. Its fast integration times improves yield, through-put time, costs, while ensuring consistent quality. This cooled camera platform provides a streamlined solution for accurate temperature measurement. The Standard kit includes a FLIR A6301 Advanced Thermal Camera, accessories, and 17 mm, 24 mm, or 50 mm lens.
A highly sensitive, cooled MWIR sensor allows the camera to more accurately spot defects, increasing product quality. Industry-leading 27,000-hour cryocooler lifetime maximizes camera uptime for consistent production throughput.
Fast integration times ensure accurate temperature measurements on moving products and production lines. Low-latency, deterministic synchronization to external sources means thermal images are captured precisely when needed for decision support.
Standard GigE Vision protocols, Rest API and a built-in web interfaces shorten implementation timelines.
Specifications
| Highlighted | |
|---|---|
| Digital I_O connector type | M12 12-pin A-coded, Male (shared with external power) |
| Digital Inputs | 2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V |
| Digital Outputs | 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC) |
| EMC | EN55032:2015/A11:2020 EN55035:2017/A11:2020 FCC Part 15, Subpart B ClassA KC C 9832 and KS C 9835 |
| Mounting | With mounting plate - 2 × 1/4"-20 tapped holes, 1 × 3/8"-16; tapped hole, 4 × #10-24 tapped holes Without mounting plate - 6 × #6-32 |
| f number | f/2.5 |
| Image Frequency | 30 Hz |
| Thermal Sensitivity_NETD | ≤15 mK at 25°C |
| Accuracy | ≤100°C ±2°C, >100°C ±2% of reading |
| Communication & Data Storage | |
|---|---|
| Command and Control | GEV: Genicam; RTSP: Web Interface, REST API |
| Communication Interfaces | Ethernet |
| Digital Inputs | 2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V |
| Digital I_O connector type | M12 12-pin A-coded, Male (shared with external power) |
| Digital Outputs | 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC) |
| Storage Media | None |
| Synchronization Modes | Sync In |
| Imaging & Optical | |
|---|---|
| Automatic Image Adjustment | Linear, manual, PE, DDE, ADE |
| Color palettes | Selectable 8-bit |
| Detector Pitch | 15 µm |
| Detector Type | High Operating Temperature (HOT) MWIR T2SLS |
| Digital image enhancement | High sensitivity mode (HSM) |
| Digital Zoom | Digital zoom, 1x, 2x, 4x, 8x |
| f number | f/2.5 |
| Field of view [FOV] | FLIR A6301 - 17 mm lens: 31.5° × 25.5° FLIR A6301 - 25 mm lens: 21.7° × 17.5° FLIR A6301 - 50 mm lens: 11.0° × 8.8° FLIR A6301 - Macro lens: Variable depending on distance |
| Field of view [FOV] and Min Focus Distance | 110 mm |
| Field of view [FOV]_Focal Length | Variable 27 mm to 40 mm |
| Focal Length | 17 mm Lens: 17 mm 25 mm Lens: 25 mm 50 mm Lens: 50 mm |
| Focus | Manual |
| Image Frequency | 30 Hz |
| Image Modes | IR image, high sensitivity mode (HSM) |
| IR Resolution | 640 × 512 |
| Minimum Focus Distance | 17 mm Lens: 60 mm (2.4 in) 25 mm Lens: 200 mm (7.9 in) 50 mm Lens: 500mm (23.2 in) |
| Non_Radiometric IR Video | Streaming H.264 or MJPEG over RTSP |
| Non_radiometric IR video recording | None |
| Overlay | RTSP only |
| Radiometric IR video recording | None |
| Radiometric IR video streaming | GigE Vision |
| Sensor Cooling | FLIR FL100 Linear cooler |
| Spectral Range | 3.4 μm - 5.1 μm |
| Thermal Sensitivity_NETD | ≤15 mK at 25°C |
| Zoom | Digital zoom, 1x, 2x, 4x, 8x |
| Measurement & Analysis | |
|---|---|
| Accuracy | ≤100°C ±2°C, >100°C ±2% of reading |
| Ambient Drift Compensation [with factory cal] | Yes |
| Camera size [L x W x H] | Camera only: 7 7/8" × 3" × 3 5/8"; w/Macro Lens 11 1/2" × 3" × 3 5/8" |
| DC Voltage | Range: 18 V-56 V |
| Object Temperature Range | -20°C to 200°C (-4°F to 392°F) |
| General | |
|---|---|
| Box Contents | Camera w/lens; M12 to RJ45F Cable (0.3 m), quick start guide, certificate of calibration |
| Size [L x W x H ] w_o Lens | 200 × 76 × 92 mm (7.9 × 3.0 × 3.6 in) |
| Size [L × W × H] | 17 mm Lens: 267 × 76 × 92 mm (10.5 in × 3.0 in × 3.6 in) 25 mm Lens: 260 × 76 × 92 mm (10.3 × 3.0 in × 3.6 in) 50 mm Lens, Macro Lens: 241 × 76 × 92 mm (9.5 × 3.0 × 3.6 in) |
| Weight | FLIR A6301 - 17 mm lens: 1.77 kg (3.9 lbs) FLIR A6301 - 25 mm lens: 1.72 kg (3.8 lbs) FLIR A6301 - 50 mm lens: 1.63 kg (3.6 lbs) FLIR A6301 - Macro lens: 2.22 kg (4.9 lbs) |
| Weight [without lens] | 1.32 kg (2.9 lbs) |
| Environmental & Certifications | |
|---|---|
| Directives | EMC: 2014/30/EU, WEEE: 2012/19/EU |
| EMC | EN55032:2015/A11:2020 EN55035:2017/A11:2020 FCC Part 15, Subpart B ClassA KC C 9832 and KS C 9835 |
| Encapsulation | IP50 |
| Mounting | With mounting plate - 2 × 1/4"-20 tapped holes, 1 × 3/8"-16; tapped hole, 4 × #10-24 tapped holes Without mounting plate - 6 × #6-32 |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Shock | 25 g, 6 ms; Half sine; ±500 shocks; X,Y&Z (IAW MIL-STD-810H) |
| Vibration | 10-58 Hz, 0.15 mm; 58-500 Hz, 2 g; 5 cycles, 1 oct/min; X,Y&Z (IAW MIL-STD-810H) |
| Power | |
|---|---|
| Power Consumption | 25 W (cool down) |

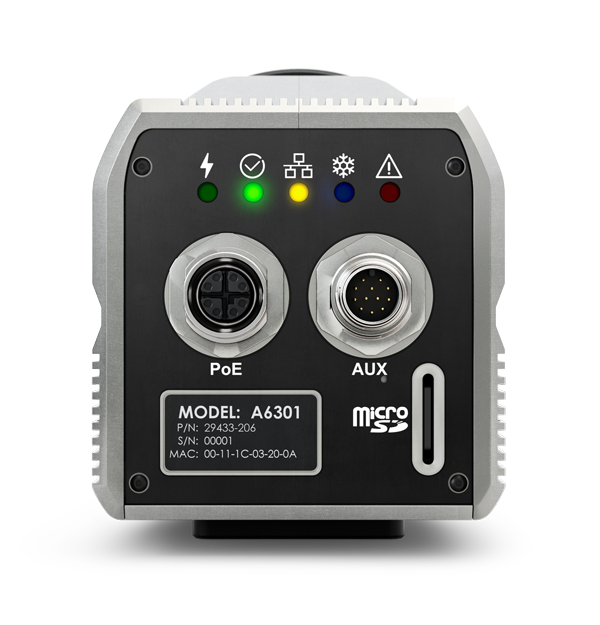

| Power Source | Primary power source: PoE+ type 2 (30 W min) Optional DC connection: M12 12-pin A-coded, male (shared with Digital I/O) |
