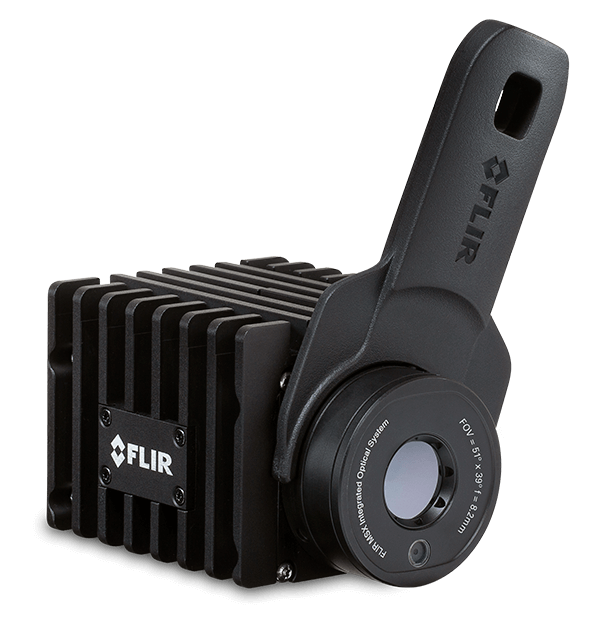

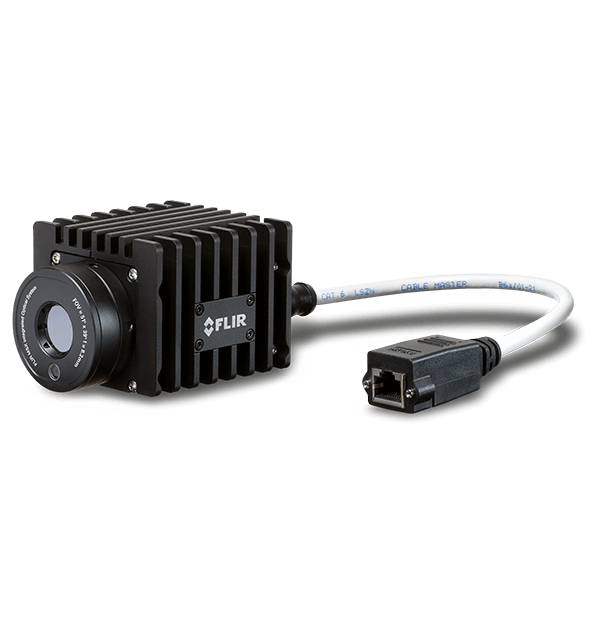

FLIR A40 Compact Thermal Smart Sensor Camera
Compact Thermal Smart Sensor Camera
Product Variations
The A40 compact thermal smart sensor camera is ideal for users who want built-in, on-camera analytics and alarm capabilities for condition monitoring and early fire detection applications. It is a flexible, configurable solution built to meet the unique needs of automation customers across a broad range of industries. When used as a system component for cloud and Industrial Internet of Things (IIoT) solutions, the FLIR A40 can help companies protect assets, improve safety, maximize uptime, and minimize maintenance costs.
An affordable automation solution with on-edge analysis and open communication protocols
Quickly access thermal characteristics with the wide-area, non-contact temperature sensor, which provides up to 320 × 240 (76,800 pixels) resolution and ±2°C accuracy and FLIR patented MSX® Image Enhancement (*Not available in the A40 95°version)
Simplify integration efforts with thermal smart sensors that communicate with standard industrial protocols and video management systems including HMI and SCADA.
Easily install the lightweight, IP66 rated camera with M8/12 connectors in any location – with multiple mounting options.
Specifications
| Highlighted | |
|---|---|
| Digital I_O connector type | M12 12-pin A-coded, Male (shared with external power) |
| Digital Inputs | 2x opto-isolated, Vin (low) = 0–1.5 V, Vin (high) = 3–25 V |
| Digital Output Purpose | As a function of alarm, output to external device Fault (NC) |
| Digital Outputs | 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC) |
| Encoding | H.264, MPEG4, or MJPEG |
| Ethernet Interface | Wired |
| EMC | ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 (radio) EN 61000-4-8 (magnetic field) FCC 47 CFR Part 15 Class B (emission US) ISO 13766-1 (EMC - Earth-moving and building construction machinery) EN ISO 14982 (EMC - Agricultural and forestry machinery) |
| Measurement Frequency | Up to 10 Hz |
| f number | 1.4 |
| Image Fequency | 30 Hz |
| Thermal Sensitivity_NETD | <35 mK |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Alarm Functions | On any selected measurement function, digital in, and internal camera temperature |
| Alarm Output | Digital out E-mail (SMTP) (push) EtherNet/IP (pull) File transfer (FTP) (push) Modbus TCP Client (pull) Server (push) MQTT (push) ONVIF events (push) Query over RESTful API (pull) Store image or video |
| Communication & Data Storage | |
|---|---|
| Digital input purpose | NUC, NUC disable, alarm |
| Digital Inputs | 2x opto-isolated, Vin (low) = 0–1.5 V, Vin (high) = 3–25 V |
| Digital I_O connector type | M12 12-pin A-coded, Male (shared with external power) |
| Digital I_O isolation voltage | 500 VRMS |
| Digital Output Purpose | As a function of alarm, output to external device Fault (NC) |
| Digital Outputs | 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC) |
| Encoding | H.264, MPEG4, or MJPEG |
| Ethernet | For control, result, image, and power |
| Ethernet Communication | TCP/IP socket-based FLIR proprietary |
| Ethernet Connector Type | M12 8-pin X-coded, female; RP-SMA, female |
| Ethernet Interface | Wired |
| Ethernet Power | Power over Ethernet, PoE IEEE 802.3af class 3 |
| Ethernet Protocols | FLIR A40 Smart Sensor 29°: EtherNet/IP, Modbus TCP, MQTT, SNMP, TCP, UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP FLIR A40 Smart Sensor 51°: EtherNet/IP, IEEE 1588, Modbus TCP, MQTT, SNMP, TCP, UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP FLIR A40 Smart Sensor 95°: EtherNet/IP, Modbus TCP, MQTT, SNMP, TCP, UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP |
| Ethernet Standard | IEEE 802.3 |
| Ethernet Type | 1000 Mbps |
| Image Storage | NA |
| Multicast | Yes |
| ONVIF Profile S Compliant | 29°, 51°: Yes 95°: No |
| RS_232 | M8 A-coded, male connector |
| Unicast | Yes |
| Imaging & Optical | |
|---|---|
| Contrast Enhancement | FSX® / Histogram equalization (IR only) |
| Detector Pitch | 25 µm |
| f number | 1.4 |
| Field of view [FOV] | FLIR A40 Smart Sensor 29°: 29° FLIR A40 Smart Sensor 51°: 51° FLIR A40 Smart Sensor 95°: 95° |
| Focal Length | FLIR A40 Smart Sensor 29°: 14.3 mm (0.56 in) FLIR A40 Smart Sensor 51°: 8.2 mm (0.32 in) FLIR A40 Smart Sensor 95°: 4.1 mm (0.16 in) |
| Focal Plane Array [FPA] | Uncooled microbolometer |
| Focus | Fixed, adjustable with included tool |
| Image Fequency | 30 Hz |
| IR Resolution | 320 × 240 |
| Minimum Focus Distance | FLIR A40 Smart Sensor 29°: 0.25 m (0.82 ft) FLIR A40 Smart Sensor 51°: 0.2 m (0.66 ft) FLIR A40 Smart Sensor 95°: 0.1 m (0.33 ft) |
| MSX | Yes |
| Multi_Streaming | Yes |
| Overlay | With/Without |
| Radiometric IR video streaming | NA |
| Readout | No measurements readouts, only streamed video |
| Spatial resolution [IFOV] | 1.7 mrad/pixel |
| Spectral Range | 7.5–14 µm |
| Streaming Resolutions | RTSP Video stream 0: 640 × 480 pixels RTSP Video stream 1: 1280 × 960 pixels |
| Thermal Sensitivity_NETD | <35 mK |
| Video Streaming | RTSP protocol |
| Visible Camera | Included |
| Visual Resolution | 1280 × 960 |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Alarm Functions | On any selected measurement function, digital in, and internal camera temperature |
| Alarm Output | Digital out E-mail (SMTP) (push) EtherNet/IP (pull) File transfer (FTP) (push) Modbus TCP Client (pull) Server (push) MQTT (push) ONVIF events (push) Query over RESTful API (pull) Store image or video |
| Atmospheric transmission correction | Based on inputs of distance, atmospheric temperature, and relative humidity |
| Automatic hot and cold detection | Max./min. temperature value and position shown within Box |
| Measurement Corrections | Global object parameters Local parameters per analyze function |
| Measurement Presets | Yes |
| Measurement Tools | FLIR A40 Smart Sensor 29°: •10 Spotmeters
•10 Boxes •3 Deltas (difference any value/reference/external lock) •1 Isotherm (above/below/interval) •1 Iso-coverage FLIR A40 Smart Sensor 51°: 10 Spotmeters 10 Boxes 3 Deltas (difference any value/reference/external lock) 1 Isotherm (above/below/interval) 1 Iso-coverage FLIR A40 Smart Sensor 95°: 10 Spotmeters 10 Boxes 3 Deltas (difference any value/reference/external lock) 1 Isotherm (above/below/interval) 1 Iso-coverage |
| Object Temperature Range | ⁻20°C to 175°C (-4°F to 347°F) 175°C to 1000°C (347°F to 1832°F) |
| General | |
|---|---|
| Base Mounting | 4 x M2.5 direct into camera or 4x 10-32 UNF onto bottom cooling plate |
| Housing material | Aluminium |
| Size [L x W x H] | 107 × 67 × 57 mm (4.21 × 2.64 × 2.24 in) |
| Weight | 519g (1.14lb) without bottom cooling plate |
| Environmental & Certifications | |
|---|---|
| Corrosion | ISO 12944 C4 G or H EN60068-2-11 |
| EMC | ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 (radio) EN 61000-4-8 (magnetic field) FCC 47 CFR Part 15 Class B (emission US) ISO 13766-1 (EMC - Earth-moving and building construction machinery) EN ISO 14982 (EMC - Agricultural and forestry machinery) |
| Encapsulation | IEC 60529 and IP66 |
| Humidity [operating and storage] | IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles EN60068-2-38 |
| Measurement Frequency | Up to 10 Hz |
| Operating Temperature Range | –20 to 50°C (–4 to 122°F) Bottom cooling plate is needed in temperatures above 40°C (104°F). Maximum internal temperature sensor: 70°C (158°F) |
| Radio Spectrum | FCC 47 CFR Part 15 Class C (2.4 GHz band US) FCC 47 CFR Part 15 Class E (5 GHz band US) RSS-247 (2.4 GHz and 5 GHz band Canada) ETSI EN 300 328 V2.1.1 (2.4 GHz band EU) ETSI EN 301 893 V2.1.1 (5 GHz band EU) |
| Shock | IEC 60068-2-27, 25 g |
| Tripod Mounting | 4 x M2.5 direct into camera or 4x 10-32 UNF onto bottom cooling plate |
| Vibration | IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal IEC 61373 Cat 1 (Railway) |
| Power | |
|---|---|
| External Power Operation | 24/48 V DC 8 W max |
| External Voltage | Allowed range 18–56 V DC |
| Power Connection | M12 12-pin A-coded, male (shared with Digital I/O) |
| Power Consumption | 7.5 W at 24 V DC typical 7.8 W at 48 V DC typical 8.1 W at 48 V PoE typical |
| User Interface | |
|---|---|
| Web interface | Yes |
