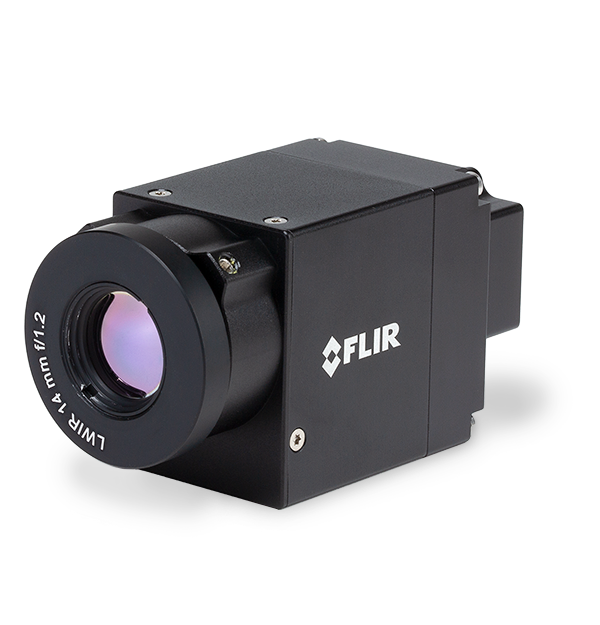

The FLIR A38/A68 thermal imaging cameras are Teledyne FLIR's smallest uncooled long-wave infrared cameras for industrial automation and machine vision applications. Specifically designed for use in process control and quality assurance, these thermal imaging temperature sensors provide visual temperature information to support key decision-making in applications where detecting small temperature variations is critical. The compact size and uncomplicated camera design deliver reliable and robust thermal imaging data, while straightforward connections with Power over Ethernet (PoE) and expanded operating temperature range make them ideal thermal cameras for industrial environments.
Specifications
| Highlighted | |
|---|---|
| Ethernet Interface | Wired |
| EMC | See User manual: https://support.flir.com/resources/4rur |
| Image Frequency | A38: 60 Hz A68: 30 Hz |
| Thermal Sensitivity_NETD | <50 mK @ 25°C ambient |
| Communication & Data Storage | |
|---|---|
| Connection Type | RJ-45 |
| Ethernet | For control, image, and power |
| Ethernet Communication | GigE Vision / GenICam |
| Ethernet Interface | Wired |
| Ethernet Power | Power over Ethernet (PoE) |
| Ethernet Protocols | GigEVision |
| Ethernet Standard | IEEE 802.3 |
| Ethernet Type | Gigabit Ethernet |
| Imaging & Optical | |
|---|---|
| Color | Black |
| Detector Pitch | 17 µm |
| Field of view [FOV] | 11301-0101 FLIR A38 24°: 24° × 18.1° 11301-0102 FLIR A38 42°: 40.1° × 29° 11302-0101 FLIR A68 24°: 24.2° × 18.4° 11302-0102 FLIR A68 42°: 42.1° × 31.9° |
| Focal Length | 11301-0101 FLIR A38 24°: 13 mm (0.51 in) 11301-0102 FLIR A38 42°: 8.1 mm (0.32 in) 11302-0101 FLIR A68 24°: 25 mm (0.98 in) 11302-0102 FLIR A68 42°: 14.2 mm (0.56 in) |
| Focus | Fixed |
| F_number | 11301-0101 FLIR A38 24°: 1.0 11301-0102 FLIR A38 42°: 1.1 11302-0101 FLIR A68 24°: 1.2 11302-0102 FLIR A68 42°: 1.24 |
| Image Frequency | A38: 60 Hz A68: 30 Hz |
| IR Resolution | A38: 320 × 240 pixels A68: 640 × 480 pixels |
| Minimum Focus Distance | 11301-0101 FLIR A38 24°: 0.4 m (1.3 ft) 11301-0102 FLIR A38 42°: 1.5 m (4.9 ft) 11302-0101 FLIR A68 24°: 2.0 m (6.6 ft) 11302-0102 FLIR A68 42°: 1.3 m (4.3 ft) |
| Pixel Format | Mono8 or 16-bit/pixel |
| Spectral Range | 8–14 µm (LWIR) |
| Thermal Sensitivity_NETD | <50 mK @ 25°C ambient |
| General | |
|---|---|
| Package Includes | Infrared camera |
| Packaging Size | 130 × 140 × 100 mm (5.1 × 5.5 × 3.9 in) |
| Packaging Type | Cardboard box |
| Packaging Weight | 0.23 kg (0.51 lb) |
| Size [L x W x H ] w_o Lens | 59 × 29 × 36 mm (2.32 × 1.14 × 1.42 in) |
| Weight [without lens] | 67 g (2.4 oz) |
| Environmental & Certifications | |
|---|---|
| EMC | See User manual: https://support.flir.com/resources/4rur |
| Humidity [operating and storage] | Maximum 80% relative humidity, non-condensating |
| Operating Temperature Range | –35°C to 60°C (-31°F to 140°F) |
| Safety | See User manual: https://support.flir.com/resources/4rur |
| Shock | See User manual: https://support.flir.com/resources/4rur |
| Storage Temperature Range | -40°C to 80°C (-40°F to 176°F) To avoid possible damage during storage, ensure that the sensor is not exposed to air. Use a lens cap or lens to cover the sensor. |
| Tripod Mounting | UNC ¼″-20 |
| Vibration | See User manual: https://support.flir.com/resources/4rur |
| Power | |
|---|---|
| Power Consumption | 12 V: 2.8 W 24 V: 2.8 W PoE (48 V): 3.5 W |
Resources & Support
Datasheet
FLIR A38 A68 Datasheet
Datasheet
FLIR A38 A68 Datasheet GB
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
