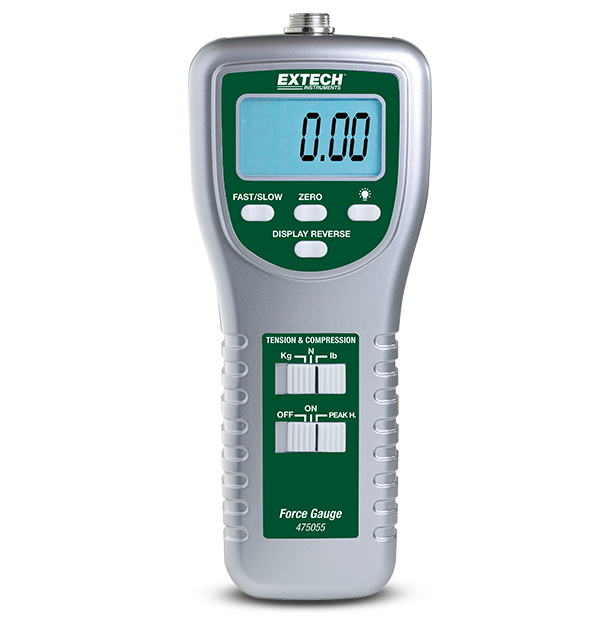

475055 is a High Capacity Force Gauge. Measuring ranges from 0.05 to 100-kilograms, 0.05 to 220-pounds, 0.2 to 980 Newton. Basic accuracy of 0.5-percent. Tension or Compression, Peak hold and Zero functions. Positive/Reverse display for easy readability. Large LCD with back light feature. Complete with tension and compression adaptors, 6 AA batteries and case.
Specifications
| General | |
|---|---|
| Force | 220 lbs, 100kg, 980 Newtons |
| Force Basic Accuracy | ±(0.5%rdg) |
| Force Max Resolution | 0.05lbs, 0.05kg, 0.2 Newtons |
| Full Scale Detection | <1mm |
| Overload Capacity | 150kg |
| Transducer Type | Load cell |
| Update Rate | Fast mode 0.2 seconds; Slow mode 0.6 seconds |
| Additional Details | |
|---|---|
| Certifications | 475055-NIST_S: CE, NIST 475055_S: CE |
| Dimensions | Meter: 8.5 × 3.5 × 1.8" (215 × 90 × 45 mm) |
| Power | 6 × AA (1.5V ) batteries |
| Warranty | 2 years |
| Weight | 1 lb (450g) |
Resources & Support
Datasheet
Extech 475055 Datasheet
User Manual
Extech 475055 User Manual GB
User Manual
Extech 475055 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
