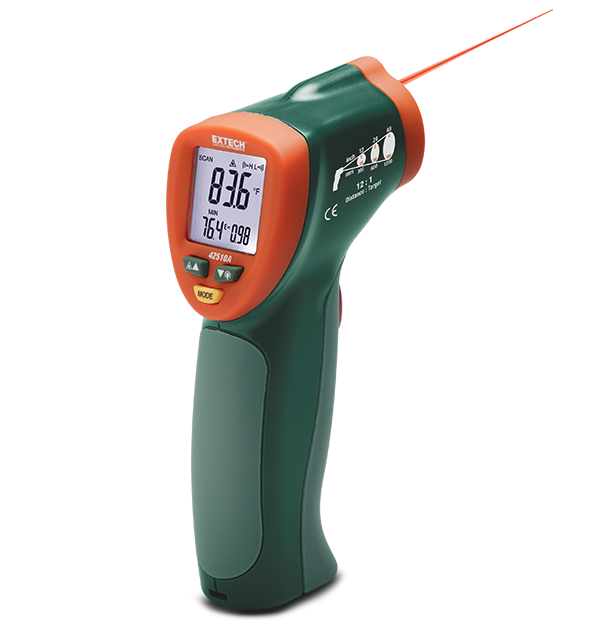

The Extech 42510A Wide Range Mini IR Thermometer measures temperature from -50°C to 650°C (-58°F to 1200°F) with 0.1 degree resolution for readings up to 999.9 degrees. The adjustable high/low set points with audible alarm alerts users when temperatures exceed the programmed set points. It features adjustable emissivity for better accuracy on a variety of surfaces. Its built-in laser pointer can help identify target areas. Built in backlighting illuminates the display for taking measurements at night or in areas with low background light levels. 12:1 distance to target ratio. Comes with data hold, min/max, over range indicator, and auto power off functions. Complete with 9 V battery and pouch case.
Specifications
| General | |
|---|---|
| Distance to Target Ratio | 12:1 |
| Emissivity | 0.10 to 1.00, adjustable |
| Repeatability | ±0.5% or ±1.8 °F/ °C |
| Targeting | single laser |
| Temperature [IR] Basic Accuracy | -25 to 1200 °F (-50 to 650 °C) |
| Temperature [IR] Max Resolution | ±(1% of reading + 2 °F/1 °C) |
| Temperature [RTD] | 0.1 °F/ °C; 1 °F/ °C |
| Additional Details | |
|---|---|
| Certifications | 42510A-NIST_S: CE, NIST 42510A_S: CE |
| Dimensions | 3.2 × 1.6 × 6.3" (82 × 42 × 160mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 6.4oz (180g) |
Resources & Support
User Manual
Extech 42510A User Manual GB
Certification
Extech 42510A Declaration of Conformity
User Manual
Extech 42510A User Manual
Datasheet
Extech 42510A Datasheet
