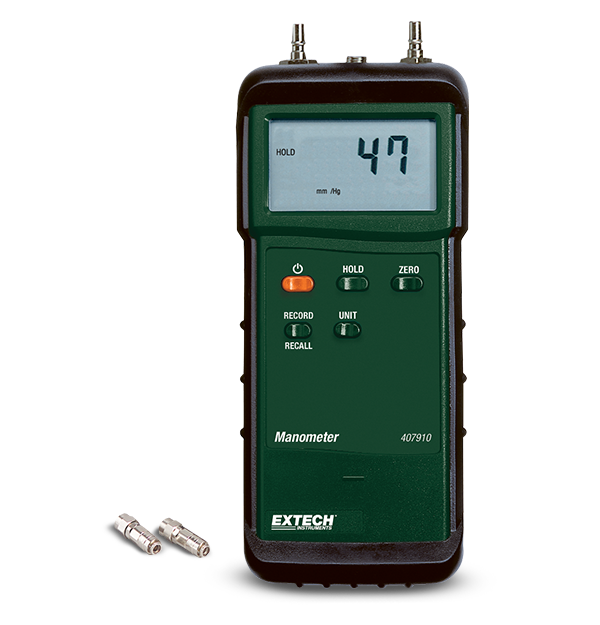

Extech 407910
Heavy Duty Differential Pressure Manometer (29psi)
The 407910 is a Differential Pressure Manometer that measures to 29psi and displays results in 8 units of measure. Features include: zero function for offset measurements, Min/Max, Data Hold and Auto power off. Includes 2 quick-disconnect fittings, 9V battery, protective holster with stand, and case.
Specifications
| General | |
|---|---|
| Pressure [atmosphere] | ±1.974atm |
| Pressure [atmosphere] Basic Accuracy | ±1% full scale |
| Pressure [atmosphere] Max Resolution | 0.001atm |
| Pressure [inH2O] | ±802.0inH₂O |
| Pressure [inH2O] Basic Accuracy | ±1% full scale |
| Pressure [inH2O] Max Resolution | 0.5inH₂O |
| Pressure [inHg] | ±59.05inHg |
| Pressure [inHg] Basic Accuracy | ±1% full scale |
| Pressure [inHg] Max Resolution | 0.05inHg |
| Pressure [kgcm2] | ±2.040kg/cm² |
| Pressure [kgcm2] Basic Accuracy | ±1% full scale |
| Pressure [kgcm2] Max Resolution | 0.001kg/cm² |
| Pressure [mbar] | ±2000mbar |
| Pressure [mbar] Basic Accuracy | ±2% full scale |
| Pressure [mbar] Max Resolution | 1mbar |
| Pressure [mH2O] | ±20.40mH₂O |
| Pressure [mH2O] Basic Accuracy | ±1% full scale |
| Pressure [mH2O] Max Resolution | 0.01mH₂O |
| Pressure [mmHg] | ±1500mmHg |
| Pressure [mmHg] Basic Accuracy | ±1% full scale |
| Pressure [mmHg] Max Resolution | 1mmHg |
| Pressure [psi] | ±29psi |
| Pressure [psi] Basic Accuracy | ±1% full scale |
| Pressure [psi] Max Resolution | 0.02psi |
| Additional Details | |
|---|---|
| Certifications | 407910-NIST_S: CE, NIST 407910_S: CE |
| Dimensions | 7 × 2.9 × 1.3" (178 × 74 × 33mm) |
| Power | 1 × 9V battery |
| Warranty | 3 years |
| Weight | 12oz (350g) |
Resources & Support
User Manual
Extech 407910 User Manual
Certification
Extech 407910 Declaration of Conformity
Datasheet
Extech 407910 Datasheet
