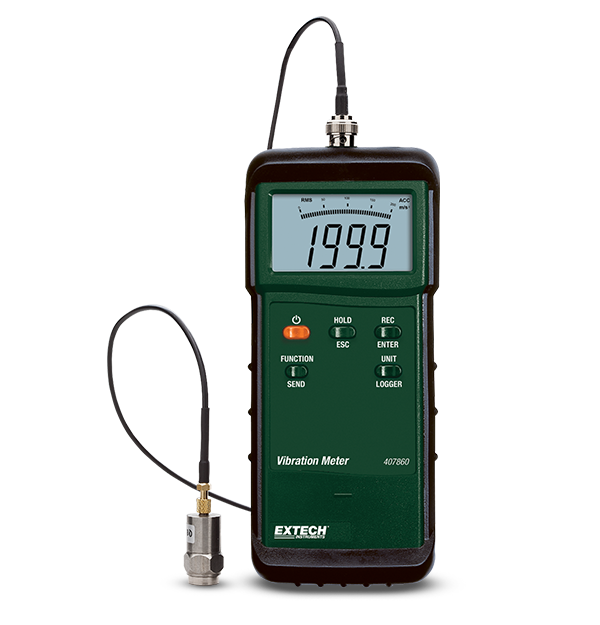

407860 Heavy Duty Vibration Meter has a Velocity range of 7.87 in./s or 200 mm/s; Acceleration range of 656 ft./s or 200 m/s, and Displacement range of 0.078 in. or 2 mm. It features a basic accuracy of 5%, a remote vibration sensor (magnetic or stud mounted) with a 39 in. (1 m) cable, RMS, Peak Value measurement modes, and auto/manual store with recall of up to 500 readings. The captured readings can be downloaded to your PC for further analysis using the optional Windows compatible data logging software. Meter comes complete with remote sensor, magnetic mount, 9V battery, holster with stand, and case.
Specifications
| General | |
|---|---|
| Acceleration | 656ft/s² (200m/s²) |
| Acceleration Basic Accuracy | ±5% |
| Acceleration Max Resolution | 2ft/s² (0.5m/s²) |
| Displacement | 0.078in (1.999mm) |
| Displacement Basic Accuracy | ±5% |
| Displacement Max Resolution | 0.001in (0.001mm) |
| Velocity | 7.87in/s (200mm/s) |
| Velocity Basic Accuracy | ±5% |
| Velocity Max Resolution | 0.02in/s (0.5mm/s) |
| Additional Details | |
|---|---|
| Certifications | 407860-NIST_S: CE, NIST 407860_S: CE |
| Dimensions | 7.1 × 2.9 × 1.3" (180 × 72 × 32mm) |
| Power | 1 × 9V battery |
| Warranty | 3 Years |
| Weight | 0.87lbs (395g) with probe |
Resources & Support
User Manual
Extech 407860 User Manual GB
Certification
Extech 407860 Declaration of Conformity
User Manual
Extech 407860 User Manual
Datasheet
Extech 407860 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
