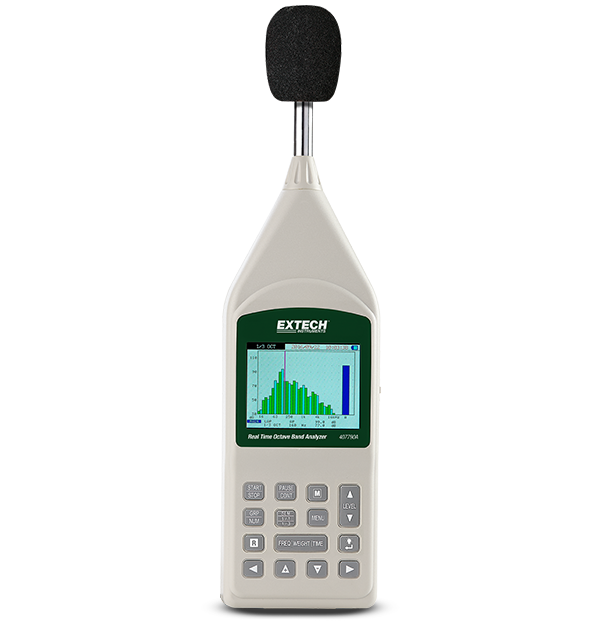

Extech 407790A
Real Time Octave Band Analyzer
Extech’s Type 2 Integrating Sound Level Meter with Octave and 1/3 Octave Band Real Time is displayed on a large 3.5" 320x240 TFT color backlit LCD.
Specifications
| General | |
|---|---|
| Analog Output | AC output: 1 Vrms (at full scale); DC output: 3.0V, 25mV/dB |
| Frequency Bandwidth | 25Hz ~ 10kHz |
| Memory | microSD card (included) |
| Microphone | Condenser, 0.52" (13.2mm) |
| Response Time | Fast, Slow, 10ms (t), I |
| Sound Range [dB] | 20 to 90dB, 20 to 100dB, 20 to 110dB, and 30 to 120dB, 40 to 130dB |
| Sound Range [dB] Basic Accuracy | ±1.5dB (ref 94dB @ 1kHz) |
| Weighting | A, C, and Z |
| Additional Details | |
|---|---|
| Certifications | 407790A-NIST_S: CE, NIST 407790A_S: CE |
| Dimensions | 13.6 × 3.9 × 2.4" (345 × 100 × 60mm) |
| Power | 4 × C (1.5V) batteries / external supply 6V DC, 1A |
| Warranty | 2 years |
| Weight | 33.5oz (950g) |
