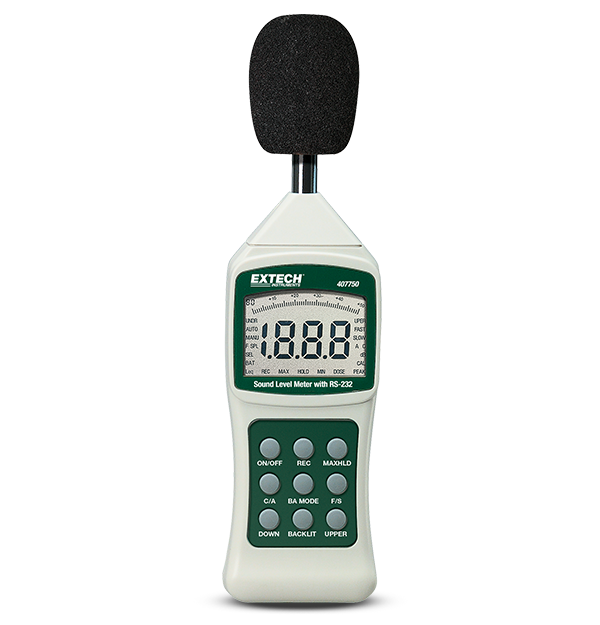

Extech 407750
Sound Level Meter with PC Interface
The 407750 Sound Level Meter with PC Interface has a large backlit display, PC Interface and background sound absorber for noise measurements with high ambient noise levels. It features A/C Weighting, fast/slow response time, Min/Max, and analog AC/DC outputs for connection to a recorder. Complete with microphone wind screen, 9V battery and case.
Specifications
| General | |
|---|---|
| Analog Output | AC/DC |
| Microphone | Condenser, 0.5” (12.7mm) |
| PC Interface | Yes |
| Response Time | Fast/Slow |
| Sound Range [dB] | 30 to 130dB |
| Sound Range [dB] Basic Accuracy | ±1.5dB (Type 2) |
| Sound Range [dB] Max Resolution | 0.1dB |
| Weighting | A,C |
| Additional Details | |
|---|---|
| Certifications | 407750-NIST_S: CE, NIST 407750_S: CE |
| Dimensions | 10 × 3.1 × 1.5" (256 × 80 × 38mm) |
| Warranty | 2 years |
| Weight | 8.5oz (240g) |
Resources & Support
User Manual
Extech 407750 User Manual GB
Certification
Extech 407750 Declaration of Conformity
Datasheet
Extech 407750 Datasheet
User Manual
Extech 407750 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
